Shaver supply unit 230V grey - 20290

20290

Eikon / Devices / Protected socket outlets

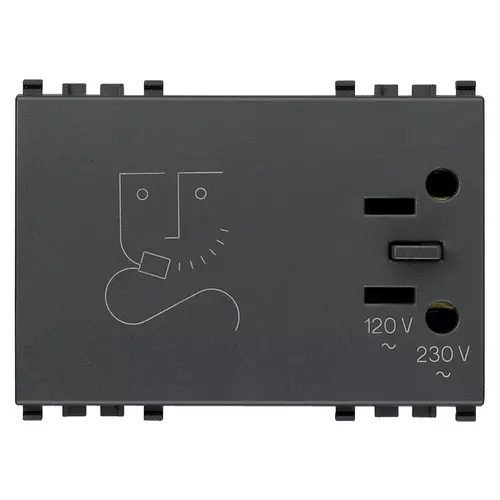

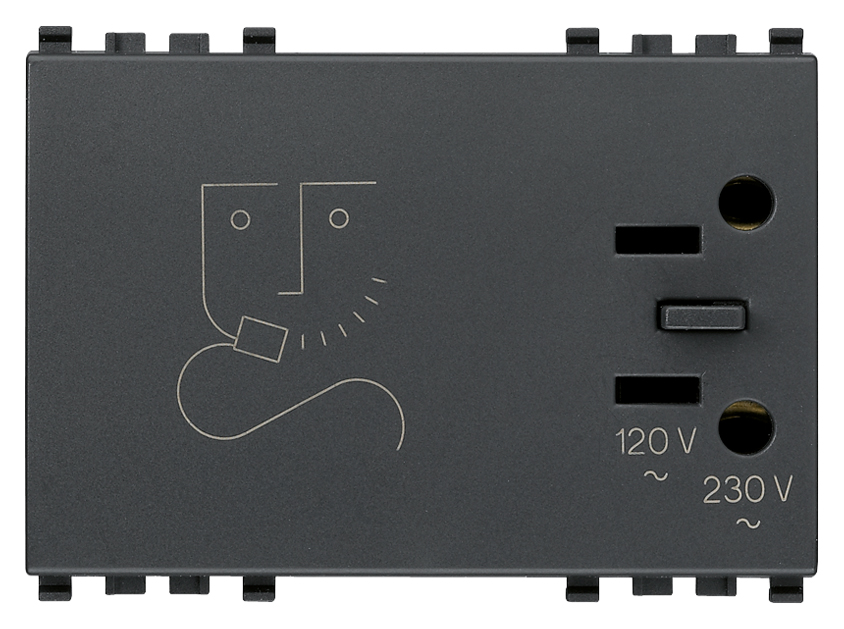

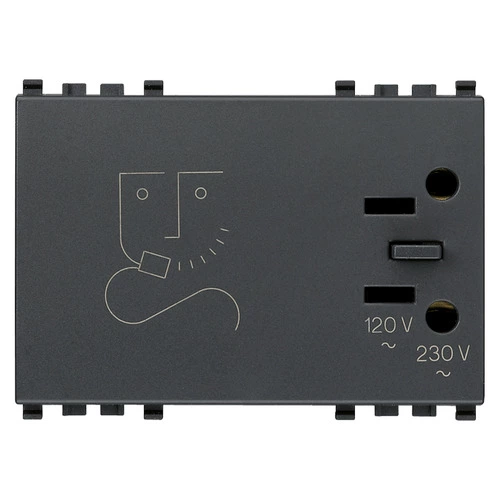

Shaver supply unit 230V grey
Shaver supply unit with 20 VA isolating transformer, supply voltage 230 V~ 50-60 Hz, 120 V~ output voltage for 2P 15 A 125 V~ American standard plugs with non-polarized flat blades, and 230 V~ output voltage for 2P 2,5 A Europlugs, grey - 3 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Razor socket outlet
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
3
Mounting method
Flush mounted (plaster)
With hinged lid
No
Voltage reversible
No
Nominal voltage low value
230 v
Nominal voltage high value
230 v
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7024
Transparent
No
Amperage
0,10 A
Width of device
67,30 mm
Height of device
49,00 mm
Depth of device
51,50 mm
With built-in installation box
No
Minimum order quantity: 1 NR

Barcode

8007352250840
1 NR
11.7x10.8x7.1 [cm]
475.6 [g]
