USB-C supply unit 30W PD grey - 20298

20298

Eikon / Devices / USB power units

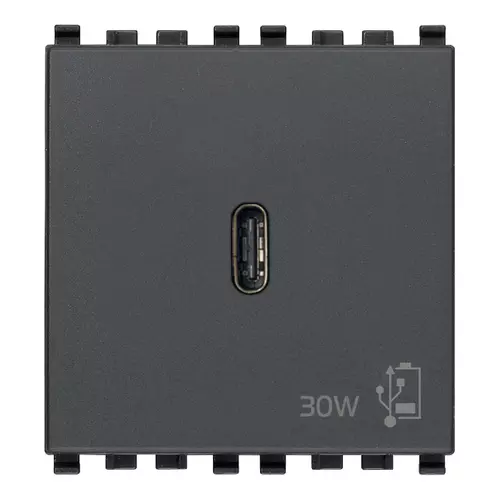

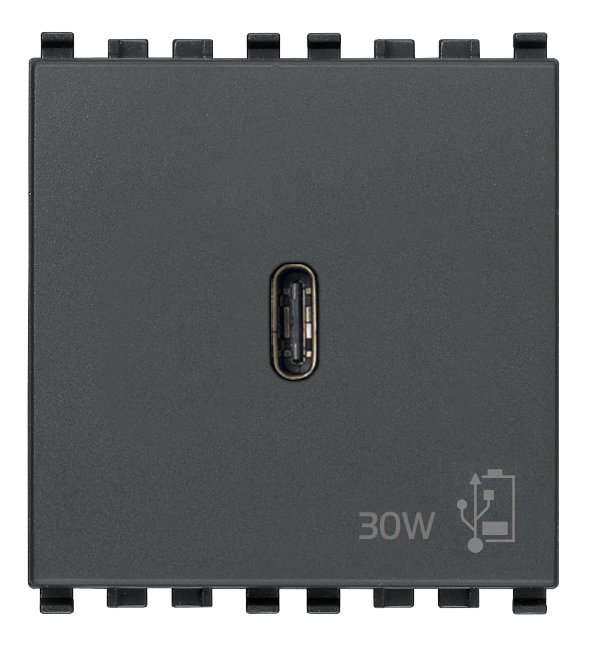

USB-C supply unit 30W PD grey

• Device which supports USB Power Delivery fast charge, which provides faster charge levels than conventional technologies

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (503 kb)
• Full Multilanguage instructions sheet (890 kb)

---

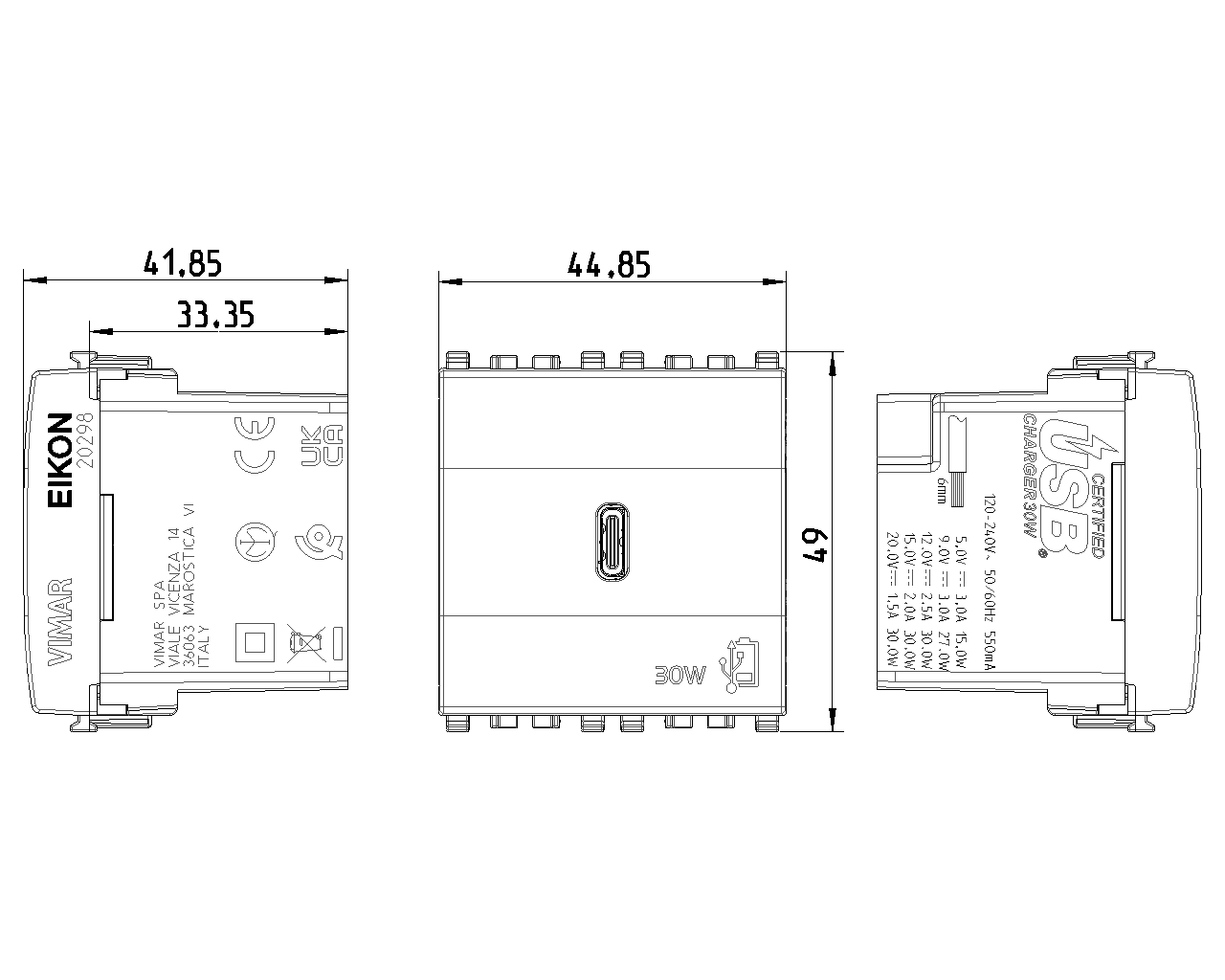

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
USB power supply

Model
Other

Type of USB power supply
C

Number of outputs
1

Operating voltage
12000 - 24000 v

Frequency
50 - 60 HZ

Max. output current
3 mA

Output voltage
20 v

Connection type
Screwed terminal

Mounting method
Flush mounted (plaster)

Colour
Grey

RAL-number
7024

Height of device
4.900 mm

Min. depth of built-in installation box
38 mm

Suitable for degree of protection (IP)
IP40

Anti-bacterial treatment
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

44. USB-IF mark

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352704244

1 NR

6x5.4x5.2 [cm]

76.6 [g]

8007352704251

10 NR

28.1x13.1x6 [cm]

840.8 [g]
