LED auxiliary emergency lamp 1M - 20398

Pdf
Vimar - 20398 - LED auxiliary emergency lamp 1M
Vimar - 20398 - LED auxiliary emergency lamp 1M

20398
Wiring devices / Traditional wiring devices / EIKON / Devices

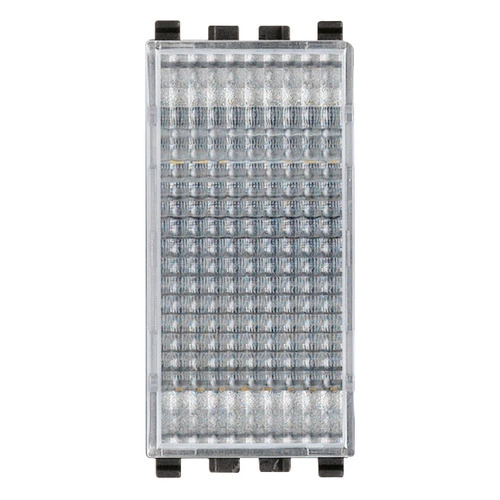

LED auxiliary emergency lamp 1M

Product Status
3 - Active

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Surface mounting/recessed mounting
Function
Escape route lighting
Suitable for labelling type
Other
With pictogram
No
Monitoring equipment
None
With remote switch connection
Yes
With remote control
No
Power supply system
Peripheral (individual battery)
Battery quality
Lithium-ions
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Lamp holder
Other
Number of lighting heads
1
Housing material
Plastic
Housing colour
Grey
Material cover
Without cover
Voltage type
AC
Nominal voltage
100,00 - 240,00 V
Type of control gear
Not required
Exchangeable control gear
No
Light distributor
Other
Degree of protection (IP)
IP40
Degree of protection (NEMA)
Other
Protection class
II
Max. system power
1,00 W
Nominal operation time
250,00 - 251,00 h
Width
22,30 mm
Height/depth
45,70 mm
Length
49,00 mm
Built-in width
22,30 mm
Built-in height/depth
36,20 mm
Built-in length
49,00 mm
Type of wiring
Ending
Number of poles
0
Conductor cross section
250
Connection type
Screw connection

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352712331
1 NR
5.2x3.5x5.3 [cm]
39.35 [g]
Barcode Qty 10 NR
8007352712348
10 NR
19x11.3x6.2 [cm]
450.7 [g]
Barcode Qty 120 NR
8007352712355
120 NR
40x24.5x21 [cm]
5,741.4 [g]
