Relay actuator 1M grey - 20534

Pdf
Vimar - 20534 - Relay actuator 1M grey
Vimar - 20534 - Relay actuator 1M grey

20534
Smart systems&products / By-me Plus / EIKON / Devices

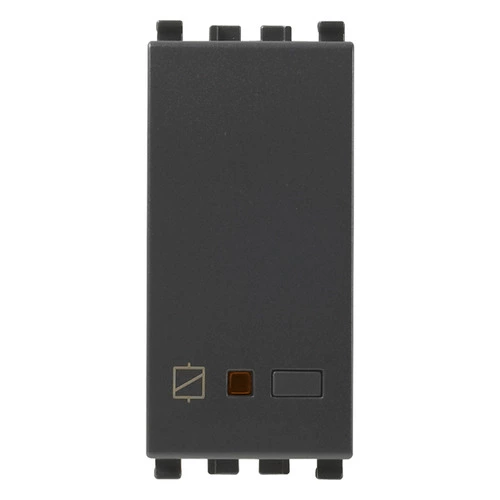

Relay actuator 1M grey
Actuator with 6 A 120-230 V~ change-over relay output, grey

Product Status
3 - Active

Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
1
Local operation/hand operation
No
With LED indication
Yes
Suitable for C-load
Yes
Max. number of switching contacts
1
Rated current
6 A
Rated operating voltage
120,00 - 230,00 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352345287
1 NR
5.1x4.3x5.3 [cm]
55.7 [g]
Barcode Qty 5 NR
8007352345294
5 NR
14.4x11.6x6 [cm]
327.15 [g]
Barcode Qty 60 NR
8007352648753
60 NR
36.5x33x13.5 [cm]
4,344 [g]
