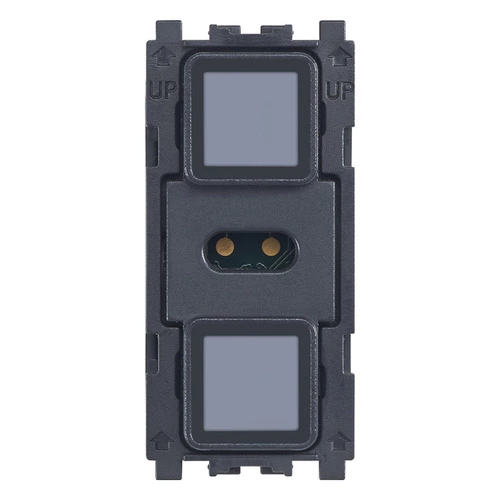

MASTER universal dimmer 230VCode 21134

Download as PDFPDF

21134: Wiring devices / Traditional wiring devices / EIKON / Devices
MASTER universal dimmer 230V: Dimmer, supply voltage 230 V~ 50 Hz, for: 40-500 W incandescent lamps, 40-300 VA electronic transformers 10-200 W CFL lamps, 3-200 W LED lamps and LED electronic supply units, ON/OFF control and regulation by local or from peripheral remote controls or NO push buttons, MASTER function for 20137, minimum brightness adjustment, to complete with signaling tags and Eikon Tactil cover plate
Product Status: 3 - Active

Sheets, Manuals, Documentation

Video

Installing the Eikon Tactil stand-alone

Drawings

Class group
Domestic switching devices

Class
Dimmer

Assembly arrangement
Other

Operating method
Touch control button

Type of load
Universal and LED Retrofit

Applicable with button
Yes

Applicable with movement sensor
No

Applicable with presence indicator
No

Applicable with time switch/timer
No

Applicable with transmission button
No

Applicable with infrared button
No

Mounting method
Flush-mounted

Type of fastening
Click in mounting

Material
Plastic

Material quality
Thermoplastic

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Suitable for degree of protection (IP)
IP40

Nominal voltage
230,00 - 230,01 V

Frequency
50,00 - 50,01 HZ

Control voltage
230,00 - 230,01 V

Connection type
Screwed terminal

Device width
22,30 mm

Device height
49,00 mm

Device depth
48,80 mm

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

8007352494305

5.1x4.3x5.3 [cm]

55 [g]

8007352494312

10 NR

26.9x11.6x4.9 [cm]

611.8 [g]

8007352648203

200 NR

47.5x27x29 [cm]

12,720 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
