KNX outdoor transponder readerCode 21457
- 21457
- Smart systems&products / KNX / EIKON / Devices

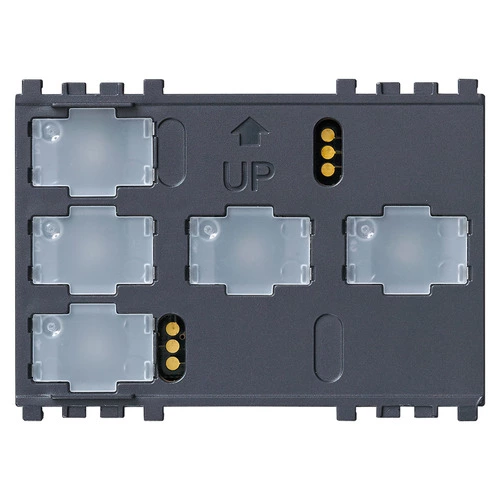

- KNX outdoor transponder reader
- Transponder card reader for outside the room installation, KNX standard, 2 NO 4 A 24 V~ relay output, 2 inputs, supply voltage 12-24 V~ 50/60 Hz and 12-24 Vdc (SELV), to complete with 3-module Eikon Tactil cover plate - 3 modules. Supplied without card
- Product Status
- 2 - Will be discontinued
You may also be interested in
Sheets, Manuals, Documentation
Product Software
Drawings
Class group
Installation bus systems
Installation bus systems
Class
Access control unit for bus system
Access control unit for bus system
Bus system KNX
Yes
Yes
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Grey
Grey
RAL-number (similar)
7024
7024
Transparent
No
No
With bus connection
Yes
Yes
Minimum order quantity: 1 NR
Barcode
8007352514454
1 NR
11.2x9.6x9.8 [cm]
136.8 [g]
8007352648159
18 NR
37.5x30x21 [cm]
2,888 [g]
| Question: | What can I control with the actuators located on the devices? |
|---|---|
| Answer: | In the external transponder reader, the internal transponder reader and the thermostat, you can control a maximum load of 24V, 2A (see instruction sheets). While for the Input/Output module, the relays control a maximum 240V, 16A (see instruction sheets). |
