Frame 3M +screws - 21613

Pdf
Vimar - 21613 - Frame 3M +screws
Vimar - 21613 - Frame 3M +screws
21613

Eikon / Mounting frames / For rectangular boxes

Frame 3M +screws

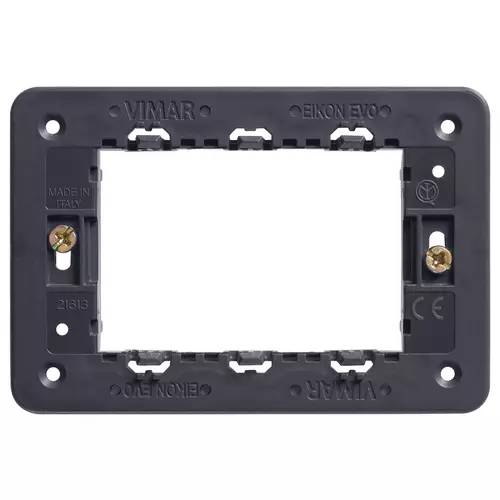

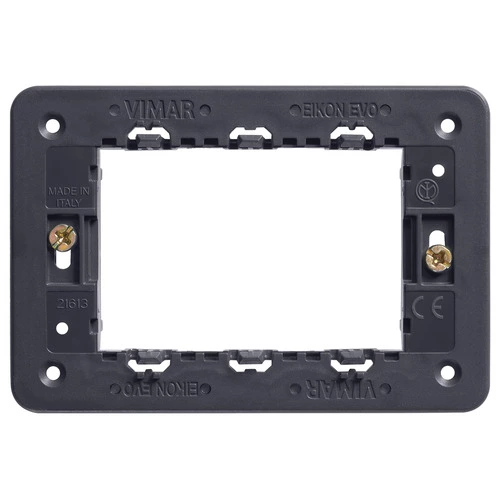

3-module mounting frame, with screws, for 3-module mounting boxes

Product Status
3 - Active

You may also be interested in

21613.C
21613.C - Cover 3M Eikon/Arké/Plana mount-frame
07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm

Drawings

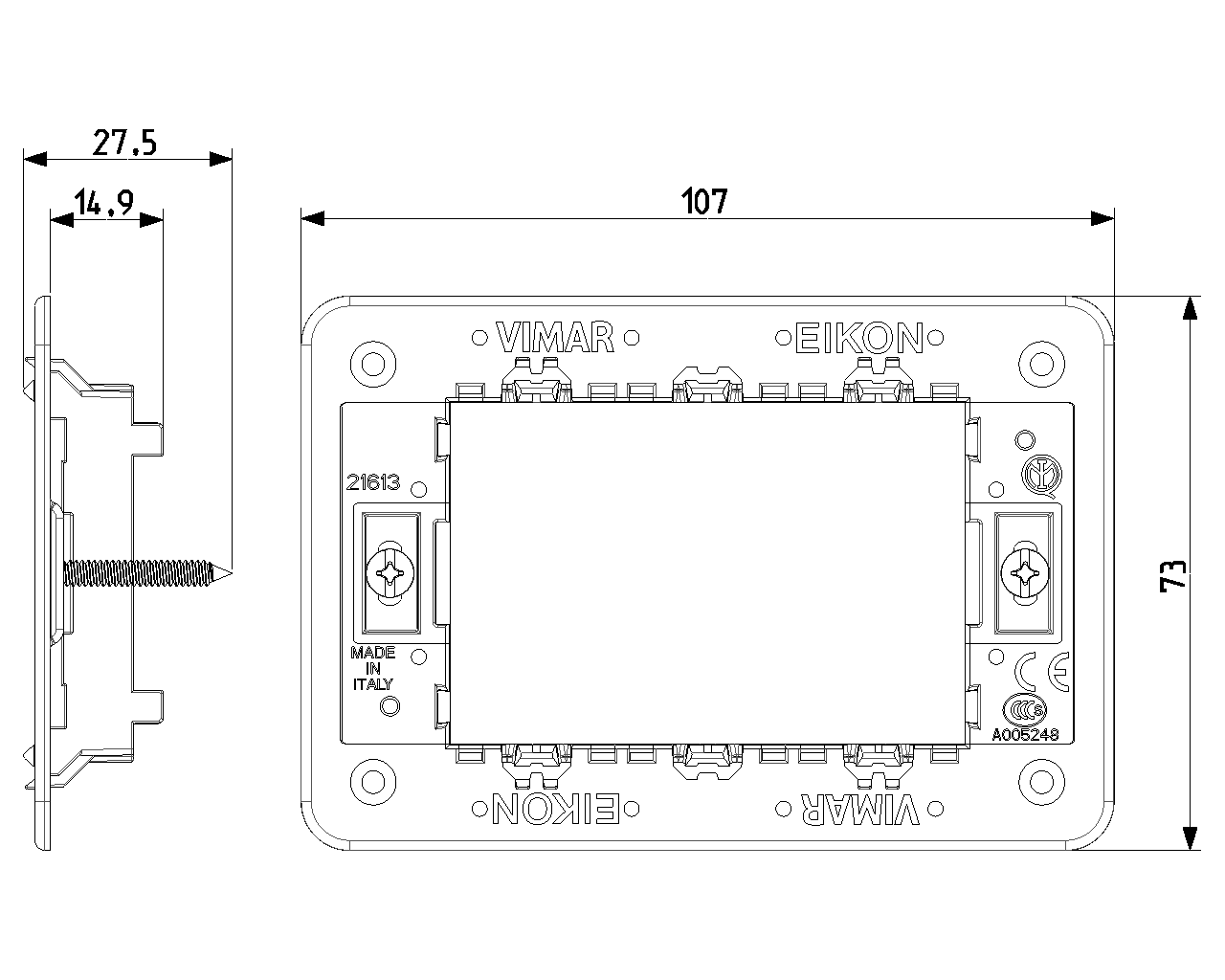

view encumbered art. 21613
PNG DXF

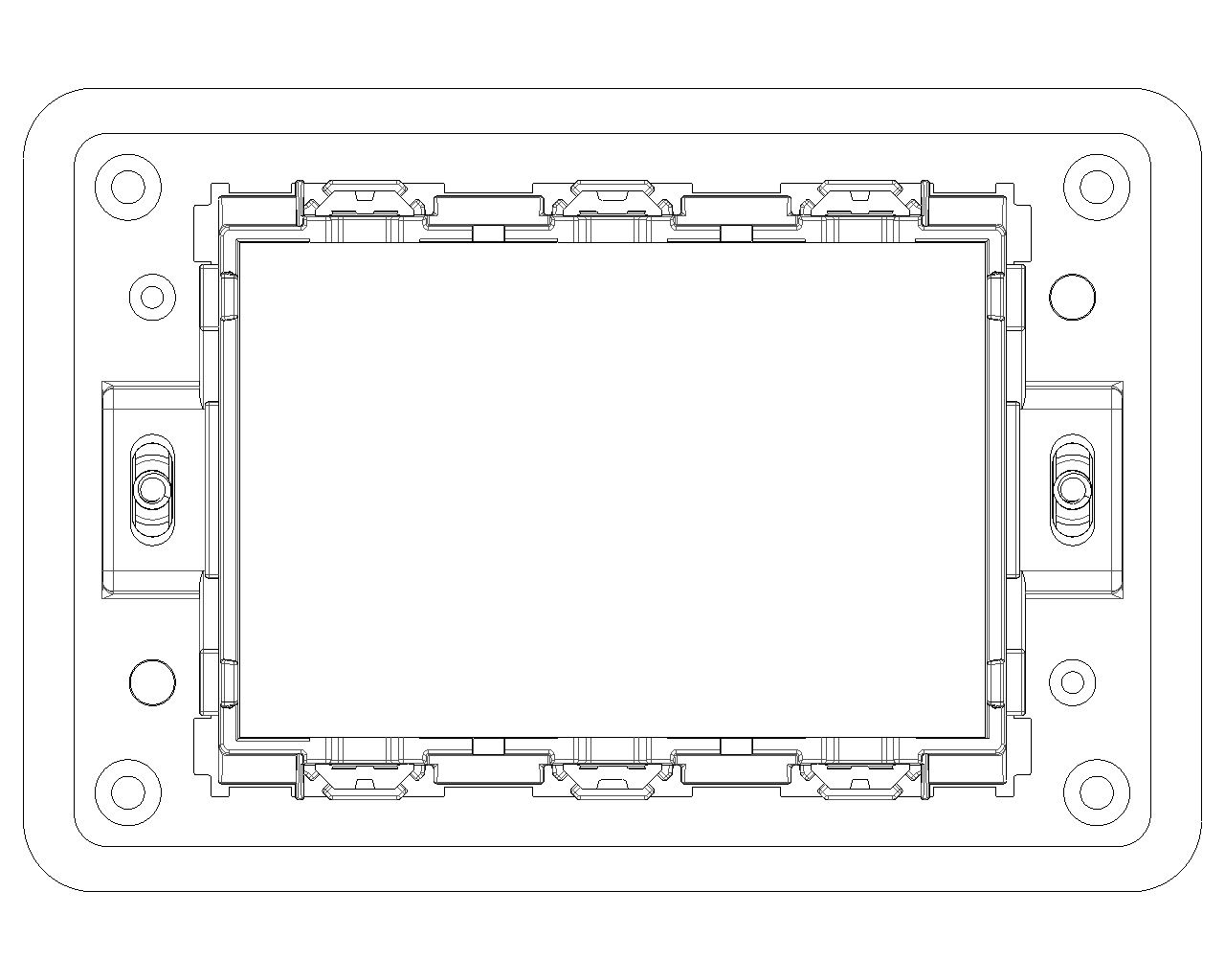

rear view art. 21613
PNG DXF

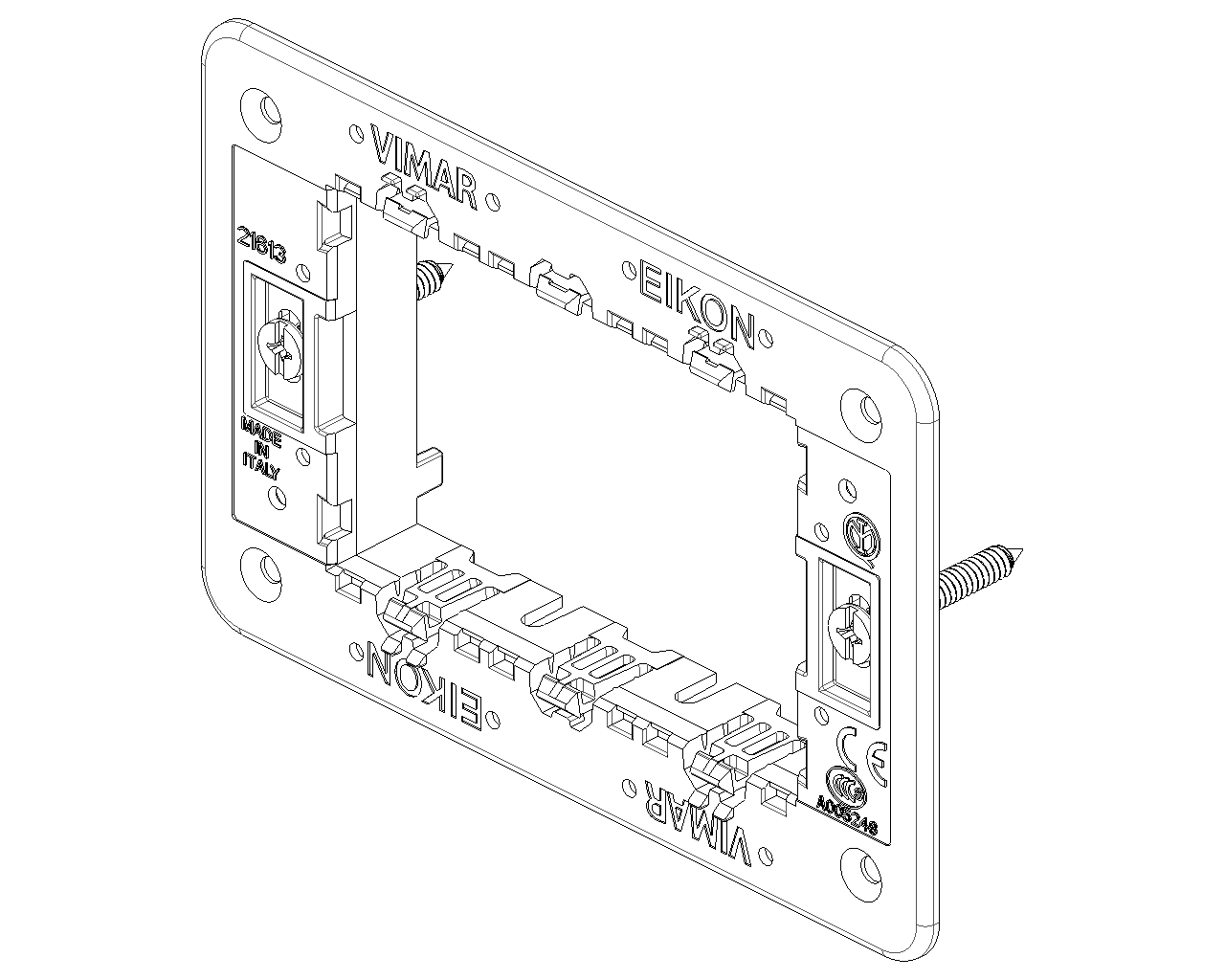

3D view art. 21613
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush mounted (plaster)
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for floor box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

01. IMQ - Italy

01. IMQ - Italy

01. IMQ - Italy

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 200 NR

Barcode

Barcode Qty 1 NR
8007352416345
1 NR
10.7x7.3x1.9 [cm]
41.5 [g]
Barcode Qty 10 NR
8007352416352
10 NR
10.7x7.3x19 [cm]
416.7 [g]
Barcode Qty 200 NR
8007352417748
200 NR
39.5x29.5x23 [cm]
8,016 [g]
Barcode Qty 6,400 NR
8007352483026
6,400 NR
80x120x106 [cm]
280,768 [g]
Question: I purchased an EikonEvo support module, can I install a plaque from the Eikon series?
Answer: No, each series has its own support module with corresponding plaques.

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo
