Touch screen Full Flat KNX 3M neutral - 21849.1.BN

21849.1.BN

Eikon EVO / Systems / KNX

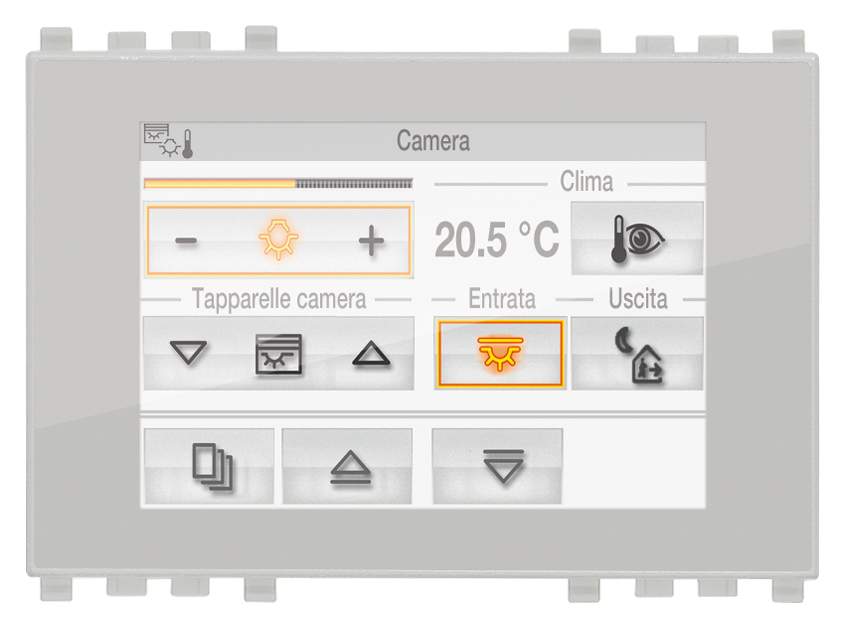

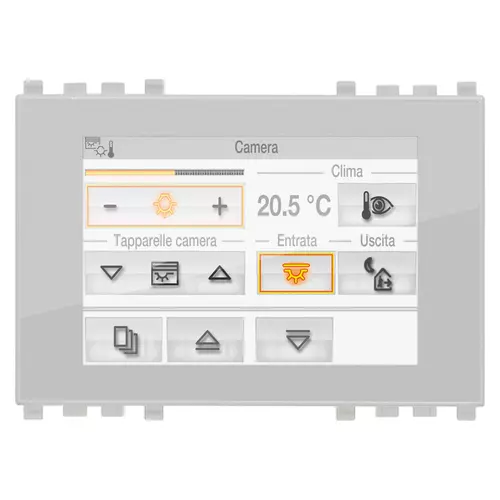

Touch screen Full Flat KNX 3M neutral
Full Flat color touch screen for automation control and supervising, Well-contact Plus, 1 temperature sensor input, to complete with Eikon Evo, Eikon, Arké or Plana cover plates, neutral - 3 modules

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49400485B0 (273 kb)
• FI - Foglio istruzioni ZIS_49400485C0 (280 kb)

Product Software

• FW_TouchScreen3MColor_KNX_REL-01.07_20171005.zip
• SW_KNX_TouchConfigurator_REL-01.22.000_20221027.zip

Class group
Installation bus systems

Class
Signalling and operation panel for bus system

Bus system KNX
Yes

Bus system KNX radio
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
None

Radio frequent bidirectional
No

Mounting method
Flush mounted (plaster)

Text field
Yes

Display
Colour

Touch function
Yes

Additional interfaces
Other

With bus connection
Yes

Material
Plastic

Material quality
Other

Colour
Other

RAL-number (similar)
9002

Degree of protection (IP)
IP40

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 1 NR

---

Barcode

8007352518063

1 NR

11.2x9.6x9.8 [cm]

163.3 [g]
