1P 10AX 2-way switch Vintage satin gold - 22004.88

Pdf
Vimar - 22004.88 - 1P 10AX 2-way switch Vintage satin gold
Vimar - 22004.88 - 1P 10AX 2-way switch Vintage satin gold

22004.88
Wiring devices / Traditional wiring devices / EIKON / Devices

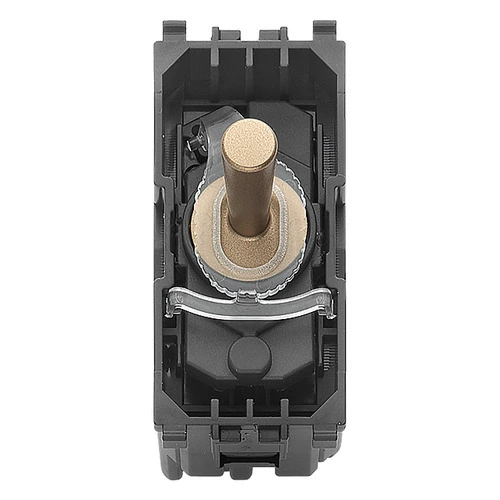

1P 10AX 2-way switch Vintage satin gold
1P 10 AX 250 V~ Vintage 2-way switch, satin-finish gold. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
230 V
Rated current
10,00 A
With lighting
No
With signal lamp
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Metal
Material quality
Brass
Anti-bacterial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1035
Transparent
No
Label space/information surface
Yes
Device width
22,30 mm
Device height
44,80 mm
Device depth
54,70 mm

00. CE Marking - EU

01. IMQ - Italy

09. VDE - Germany

13. SNI-MGI - Indonesia

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352655355
1 NR
5.1x6.5x2.7 [cm]
33.3 [g]
Barcode Qty 10 NR
8007352655362
10 NR
14.5x11x7.4 [cm]
381.3 [g]
