1P NO 10A button mechanism - 30008

Pdf

Vimar - 30008 - 1P NO 10A button mechanism

30008
Wiring devices / Traditional wiring devices / LINEA / Devices

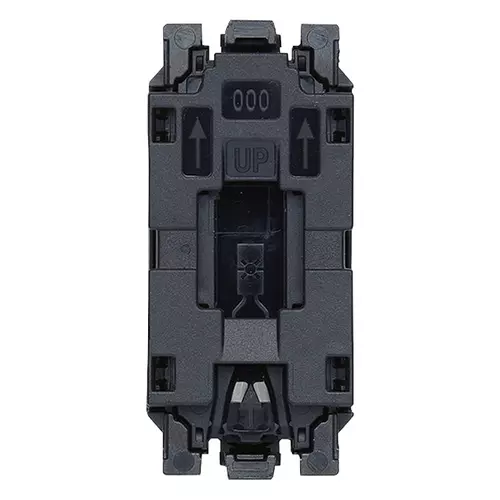

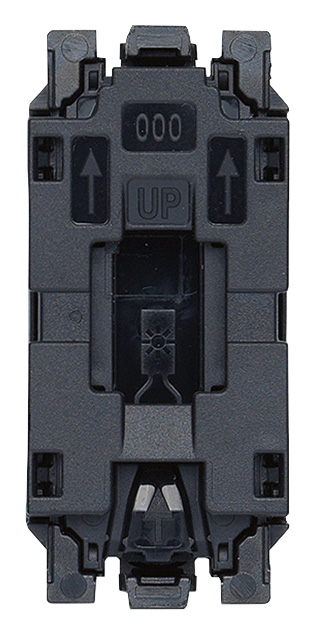

1P NO 10A button mechanism
1P NO 10 A 250 V~ lightable push button mechanism, to be completed with 1-module button

Product Status
3 - Active

You may also be interested in

31000S.B - White lower 1M path light button

31000S.G - Black lower 1M path light button

31000S.C - Lower 1M path light button Canvas

31000A.B - Axial button 1M white

31000A.G - Axial button 1M black

31000A.C - Axial button 1M canvas

31000.B - Button 1M aligned white

31000.G - Button 1M aligned 1M black

31000.C - Button 1M aligned Canvas

00943.W - Linea 110-250V white LED unit

00945.G - Linea Quid LED unit green

Drawings

view encumbered art. 30008

PNG DXF

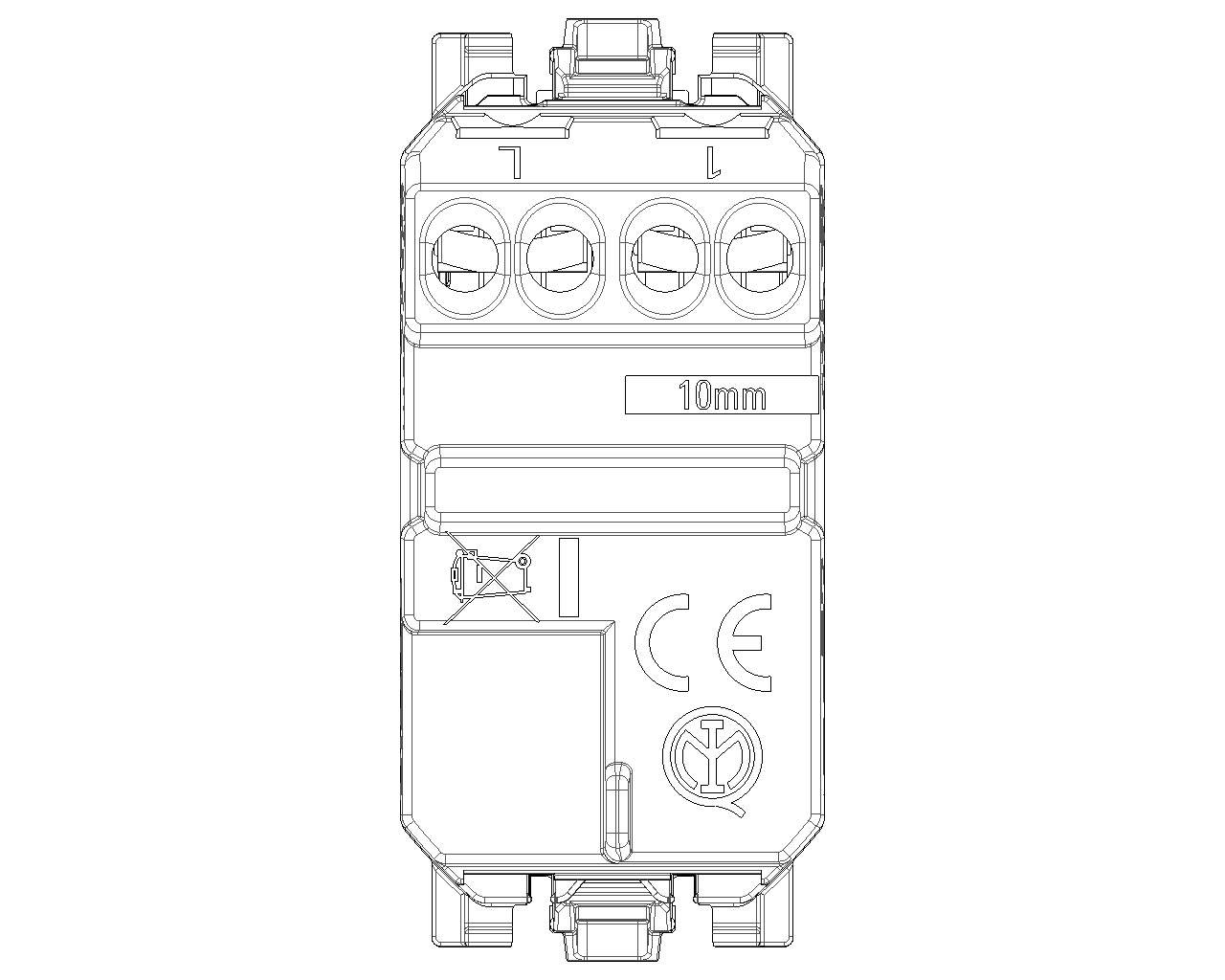

rear view art. 30008

PNG DXF

3D view art. 30008

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of contacts as normally closed contact
0

Number of contacts as normally open contact
1

Number of contacts as change-over contact
0

Number of revolving contacts
0

Contactless type
No

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

With light source
No

With signal lamp
No

Feedback-signal contact
No

Connection type
Screwed terminal

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Anti-bacterial treatment
No

Surface protection
Untreated

Surface finishing
Matt

Colour
Black

RAL-number (similar)
7024

Transparent
No

Label space/information surface
No

Imprint
None

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
52,80 mm

Device depth
28,90 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

01. IMQ - Italy

13. SNI - Indonesia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352683082

1 NR

4.6x2.7x5.6 [cm]

27.06 [g]

8007352683099

50 NR

23.7x14.8x12.8 [cm]

1,493 [g]

8007352683105

300 NR

45.5x27x27 [cm]

9,400 [g]
