4-button KNX control+actuator 2MCode 30581
- 30581
- Smart systems&products / KNX / LINEA / Devices

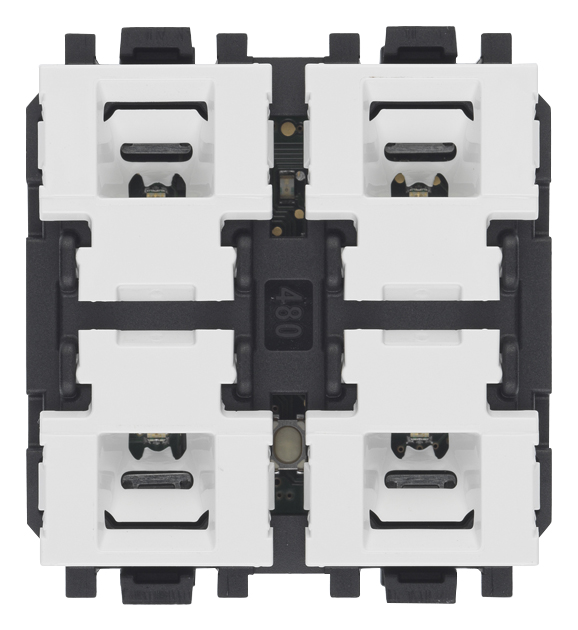

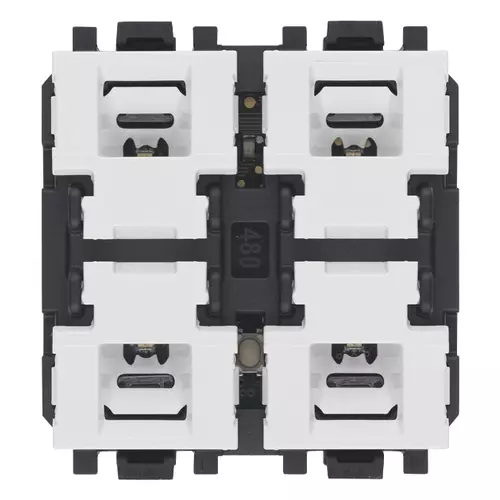

- 4-button KNX control+actuator 2M
- Control device with four push buttons and actuator with NO relay output 16 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED visible in darkness with brightness control, to be completed with two 1- or 2-module interchangeable half-button caps - 2 modules
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Full Multilanguage instructions sheet (1245 kb)
- Light multilanguage instructions sheet (796 kb)
- Manuale installatore (2893 kb)
- Installer manual (1926 kb)
Product Software

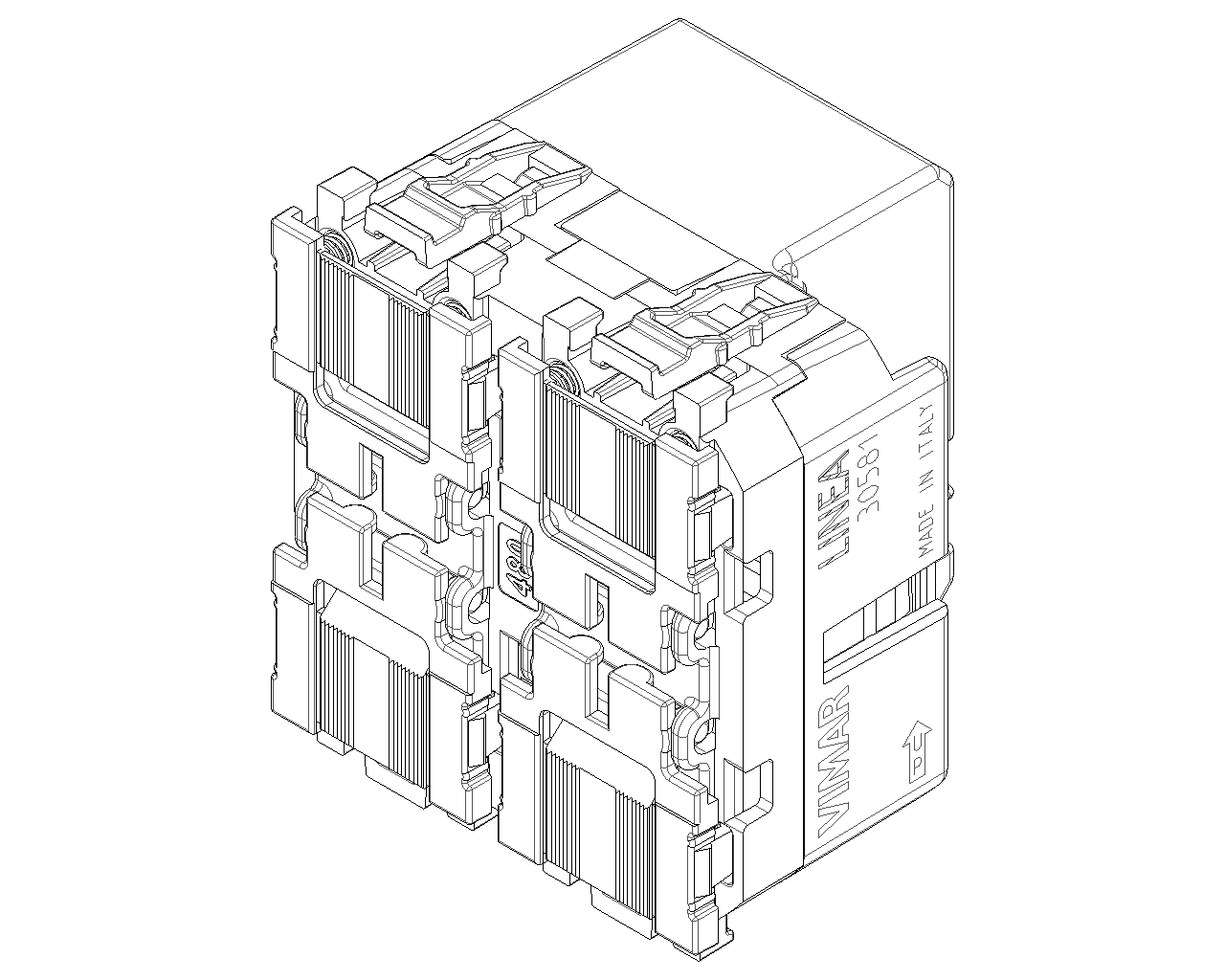

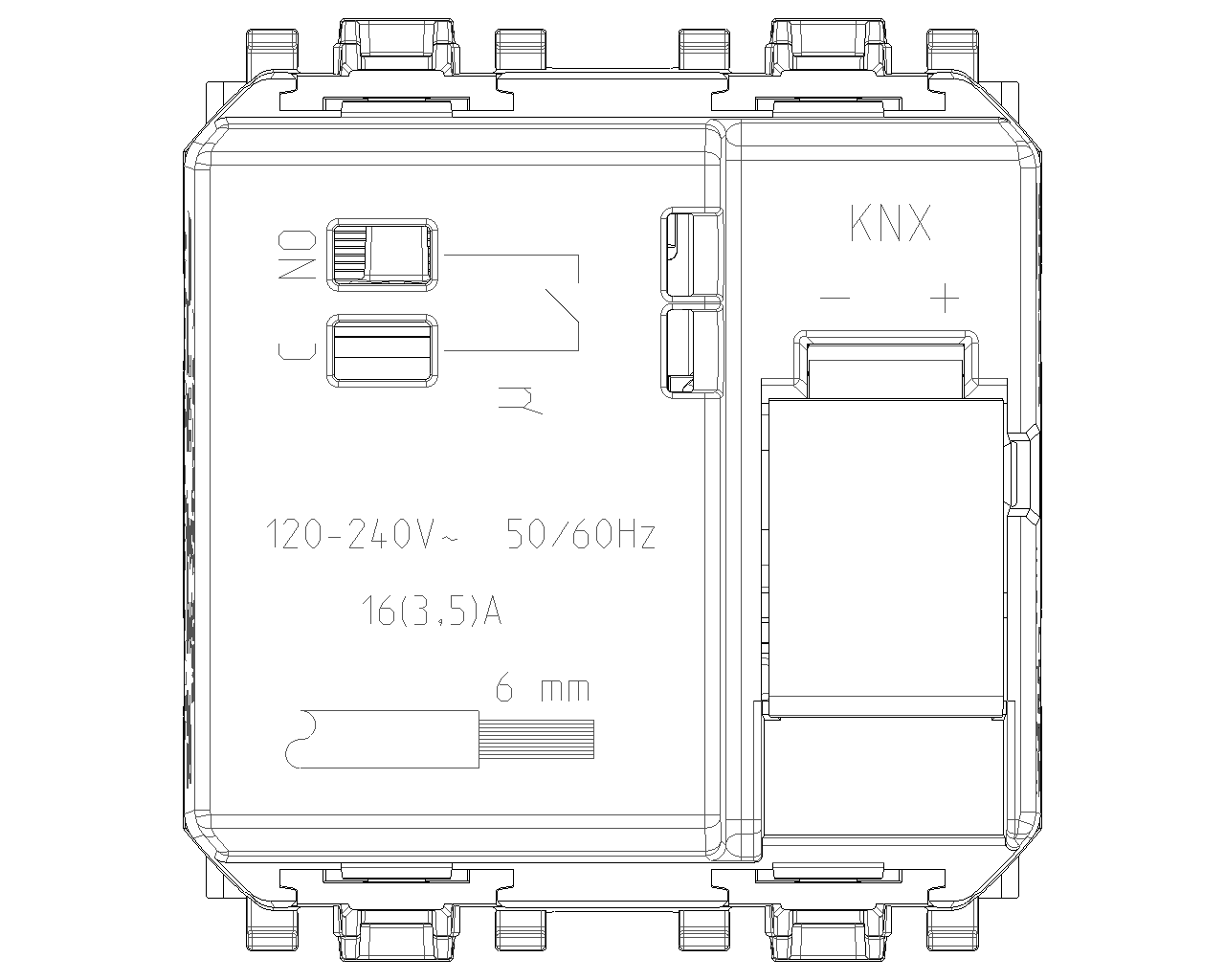

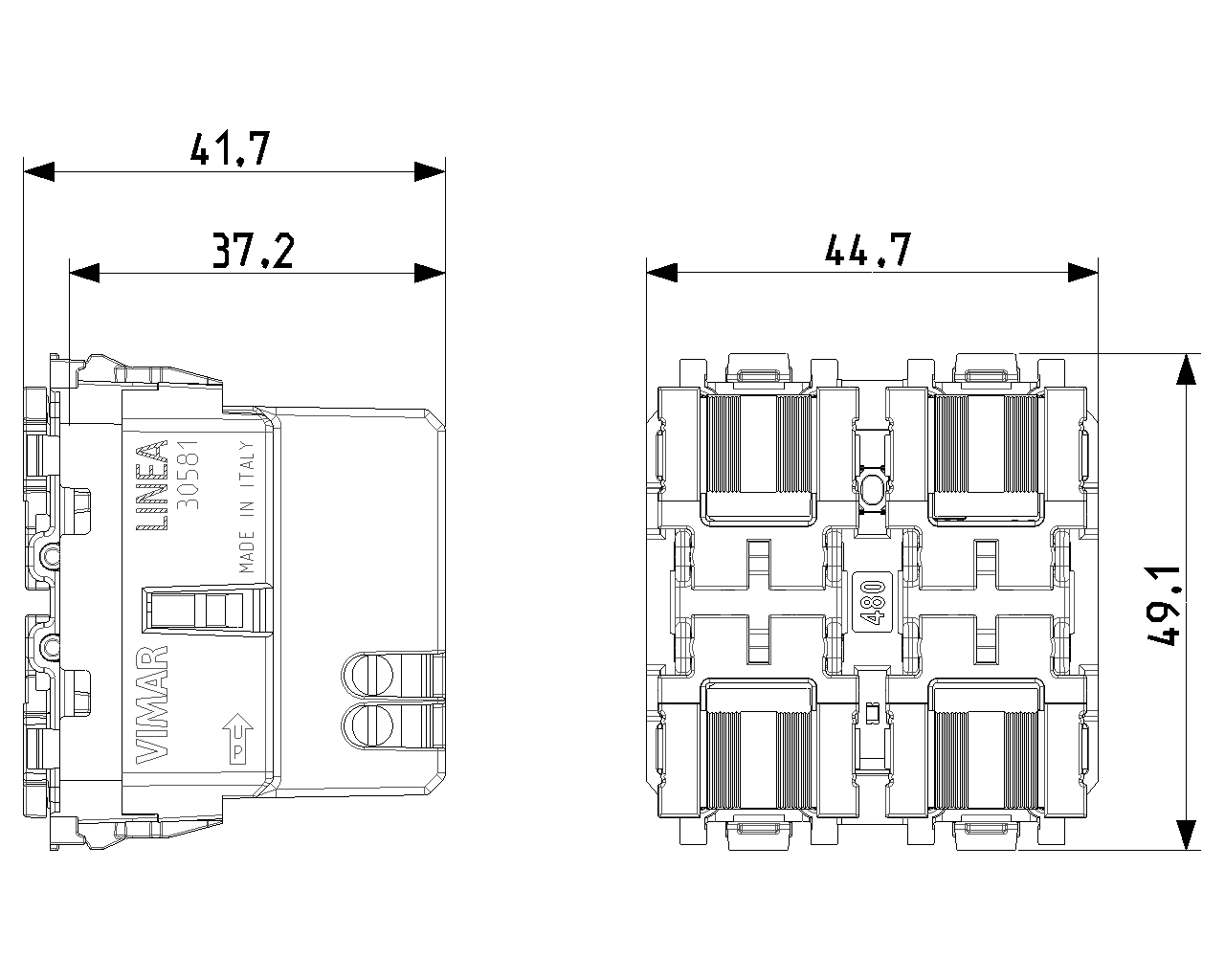

Drawings
Class group
Installation bus systems
Installation bus systems
Class
Multi operating device for bus system
Multi operating device for bus system
Bus system KNX
Yes
Yes
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequency bidirectional
No
No
Mounting method
Flush-mounted
Flush-mounted
Width in number of modular spacings
2
2
Number of actuation points
4
4
With display
No
No
Status-LED
Yes
Yes
IR sensor
No
No
Manual set point setting
No
No
Presence button
No
No
With temperature controller
No
No
With integrated DCF77 receiver
No
No
With time switch clock
No
No
With anti-theft/dismantling protection
No
No
Central functional unit for senders/actuators
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Black
Black
RAL-number (similar)
7021
7021
Transparent
No
No
Degree of protection (IP)
IP40
IP40
With bus connection
Yes
Yes
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352679788
1 NR
6x5.4x5.2 [cm]
62.2 [g]
8007352679801
60 NR
37.5x30x13.5 [cm]
4,050 [g]
