Interphone supply unit 2F+ 100-240V 0,6A - 40100

40100
ELVOX Door entry system / 2F/2F+ video door entry system / Shared A/V components / System components

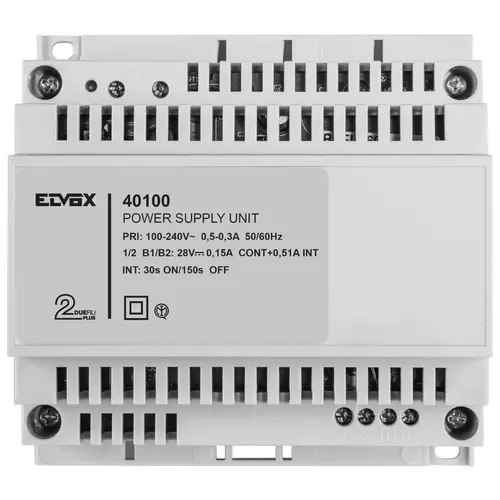

Interphone supply unit 2F+ 100-240V 0,6A
Supply unit for Due Fili Plus 1- and 2-family door entry system kits, with 28 Vdc 0,6 A output, supply voltage 110-240 V~ 50/60 Hz, on DIN (60715 TH35) rail installation, occupies 6 17.5 mm modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (910 kb)

---

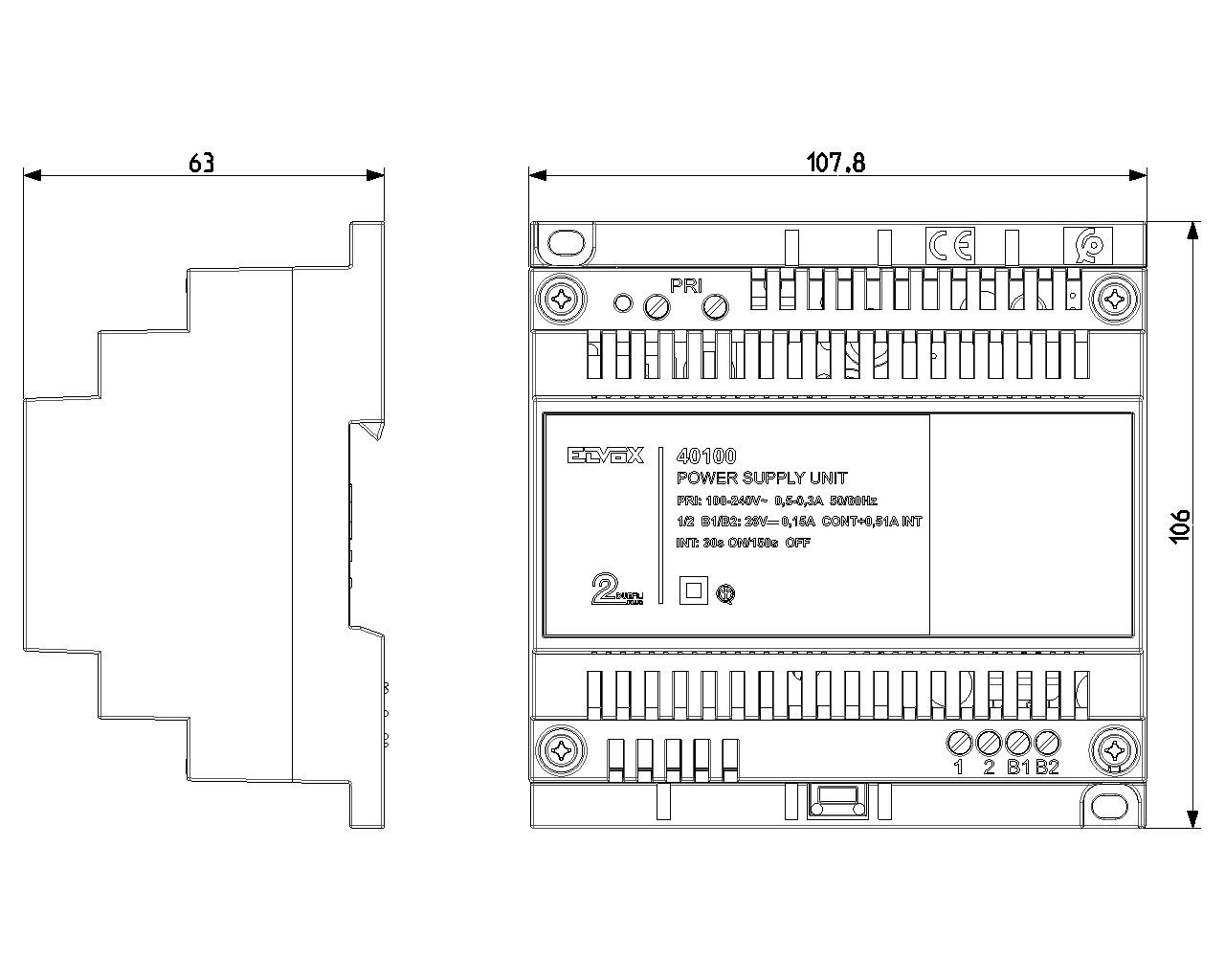

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Power supply door communication

Application
Other

Input voltage
240 V

Type of current
DC

Output voltage
28,00 V

Short-circuit-proof
Yes

Degree of protection (IP)
IP30

Height
106,00 mm

Width
107,80 mm

Depth
63,00 mm

Installation technique
Bus system

Integrated door opening circuit
No

Control function
No

Evaluation function
No

Service indication
No

Mounting method
Other

Programming lock
No

With contact
No

00. CE Marking - EU

01. IMQ - Italy

32. FCC - USA

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352654228

1 NR

11.9x11.5x6.9 [cm]

311.81 [g]

8007352654242

26 NR

38x34x24 [cm]

8,607.06 [g]
