Supply unit100-240V~24Vdc 1A EU UK AU US - 40104

40104
ELVOX Door entry system / Other video door entry systems / Shared A/V components / System components

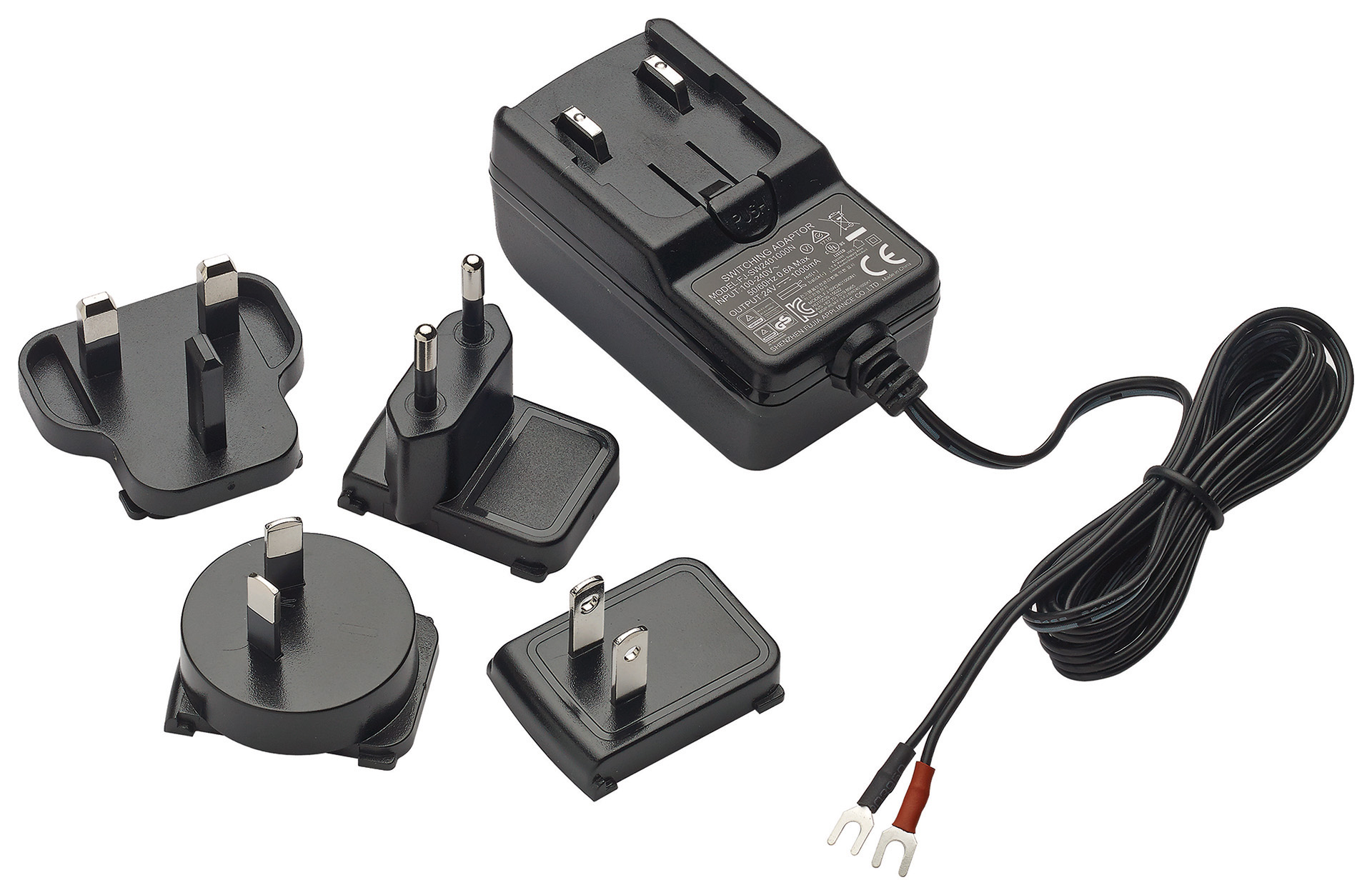

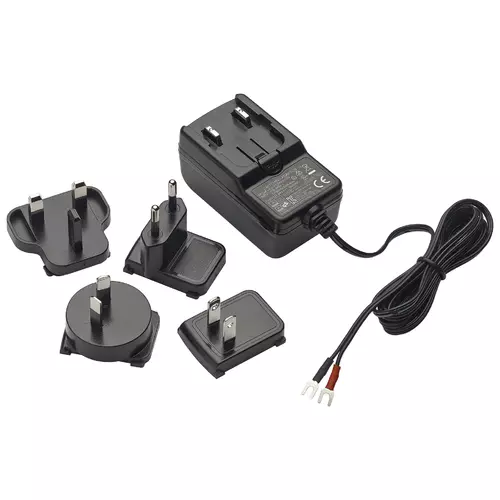

Supply unit100-240V~24Vdc 1A EU UK AU US
Switching power unit 100-240 Vac 50/60 Hz, 2P interchangeable European, British, American and Australian standards plug, 24 Vdc 1 A terminals output

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (490 kb)

Class group
Communication technique

Class
Power supply door communication

Application
Other

Type of current
DC

Degree of protection (IP)
IP20

Installation technique
Other

Integrated door opening circuit
Yes

Control function
No

Evaluation function
No

Service indication
No

Mounting method
Other

Programming lock
No

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406311122

1 NR

14.4x11.6x6 [cm]

224.81 [g]
