Power unit DIN 100-240V~ 50/60Hz 32Vdc - 40105

40105
ELVOX Door entry system / Other video door entry systems / Shared A/V components / System components

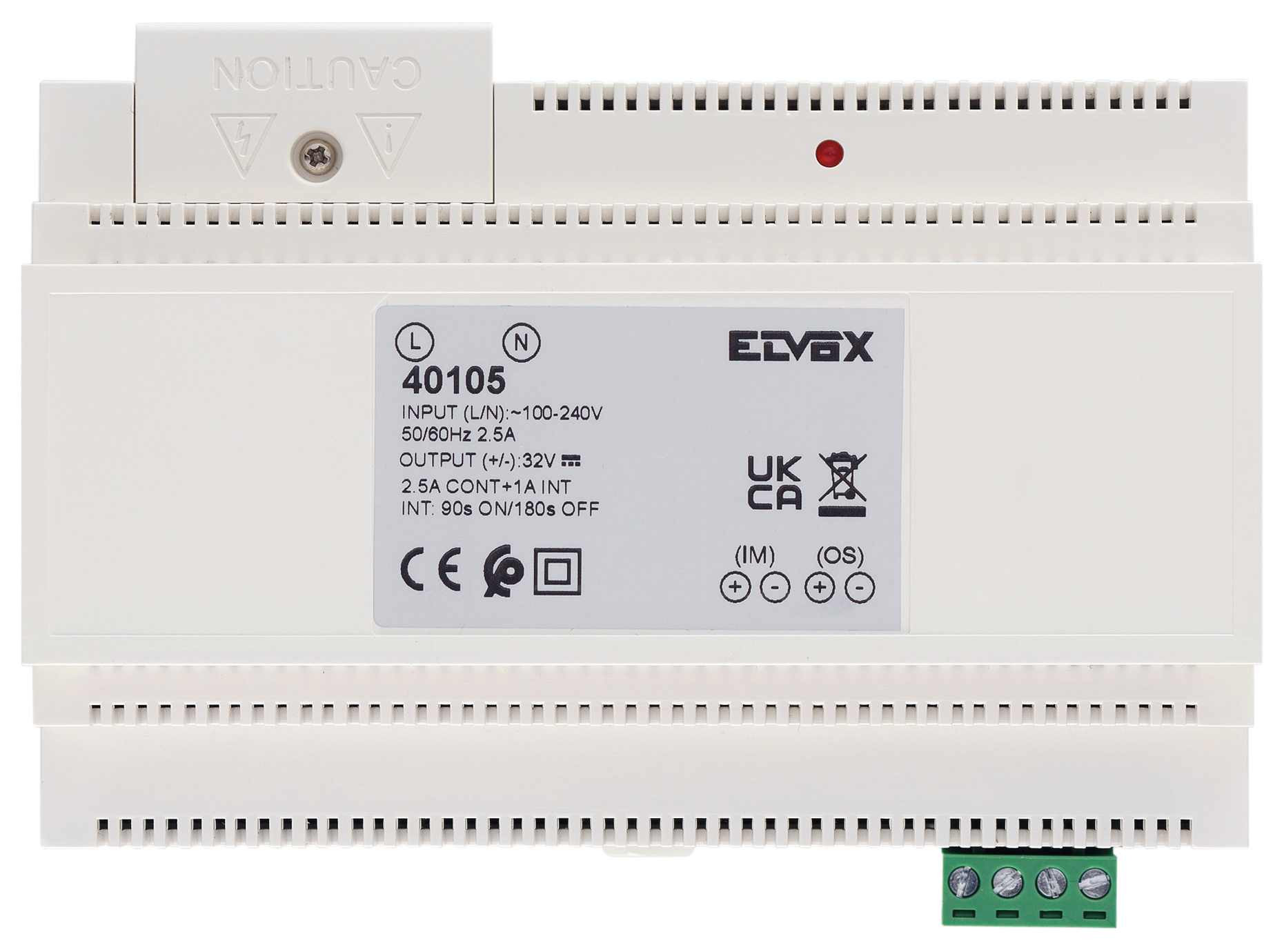

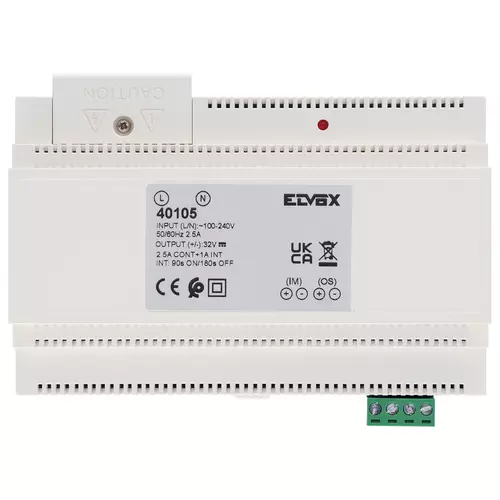

Power unit DIN 100-240V~ 50/60Hz 32Vdc
Power supply unit for IPo2W video door entry system with 32 Vdc 3.5 A output, 100-240 V~ 50/60 Hz power supply, installation on DIN rail (60715 TH35), occupies 8 modules size 17.5 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (574 kb)

Class group
Communication technique

Class
Power supply door communication

Application
Other

Input voltage
240 V

Frequency
50,00 - 60,00 HZ

Type of current
DC

Output voltage
32,00 V

Max. output current
4.000,0 mA

Short-circuit-proof
Yes

Degree of protection (IP)
IP20

Width in number of modular spacings
8

Installation technique
2-wire

Integrated door opening circuit
No

Control function
No

Evaluation function
No

Service indication
Yes

Mounting method
DIN rail

Programming lock
No

With contact
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352708716

1 NR

21.4x10.8x7 [cm]

561 [g]
