Semi-flush accessories for plate 40170Code 40179

Download as PDFPDF
Immagine 40179
Immagine 40179
40179
ELVOX Door entry system / 2F/2F+ video door entry system / Outdoor stations / Roxie series

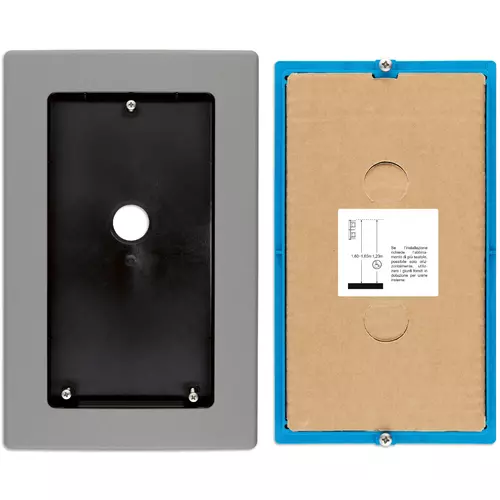

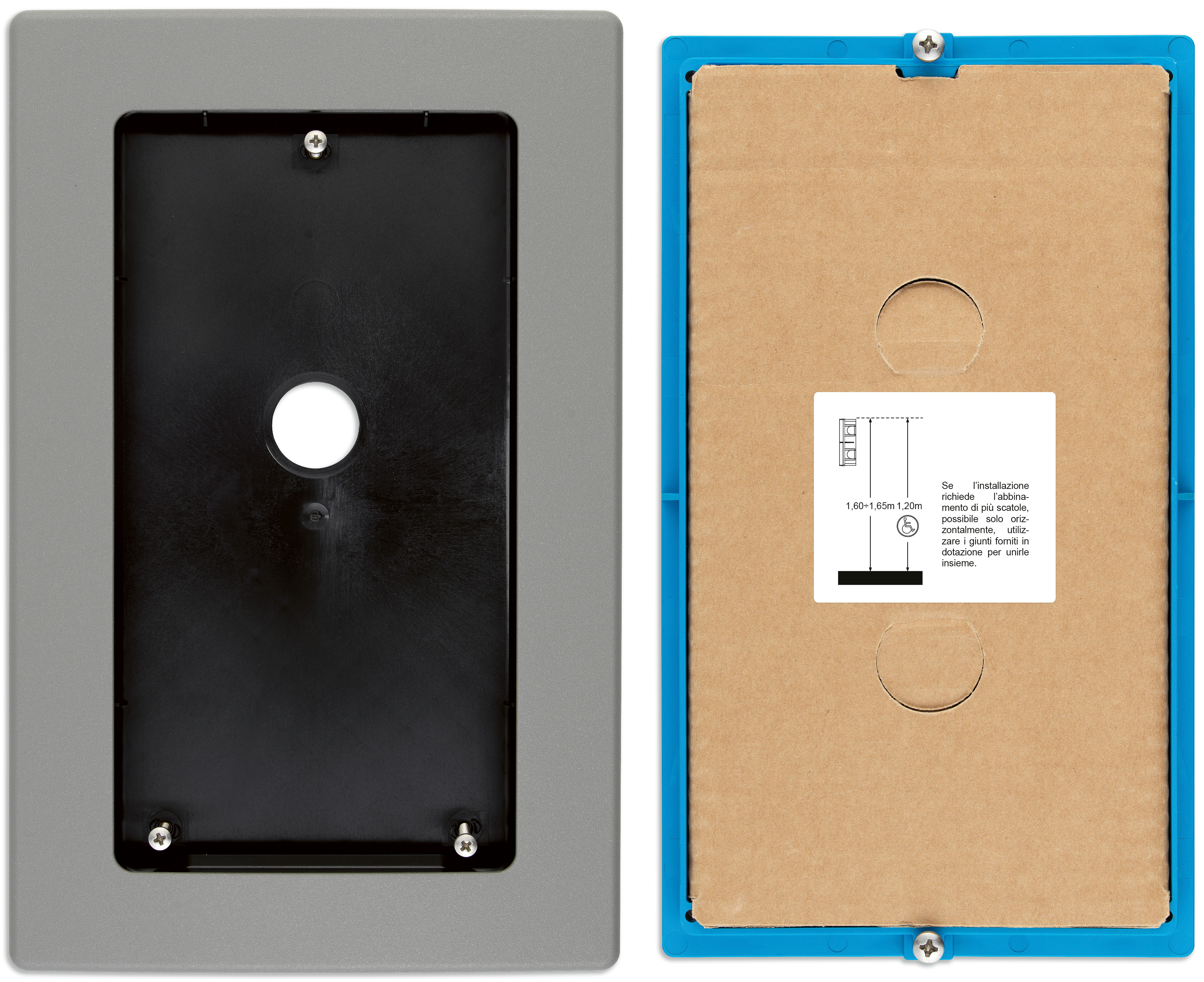

Semi-flush accessories for plate 40170
Accessories kit for flush mounting of Roxie entrance panel 40170: 1 mounting frame, 1 frame 1 flush mounting box
Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

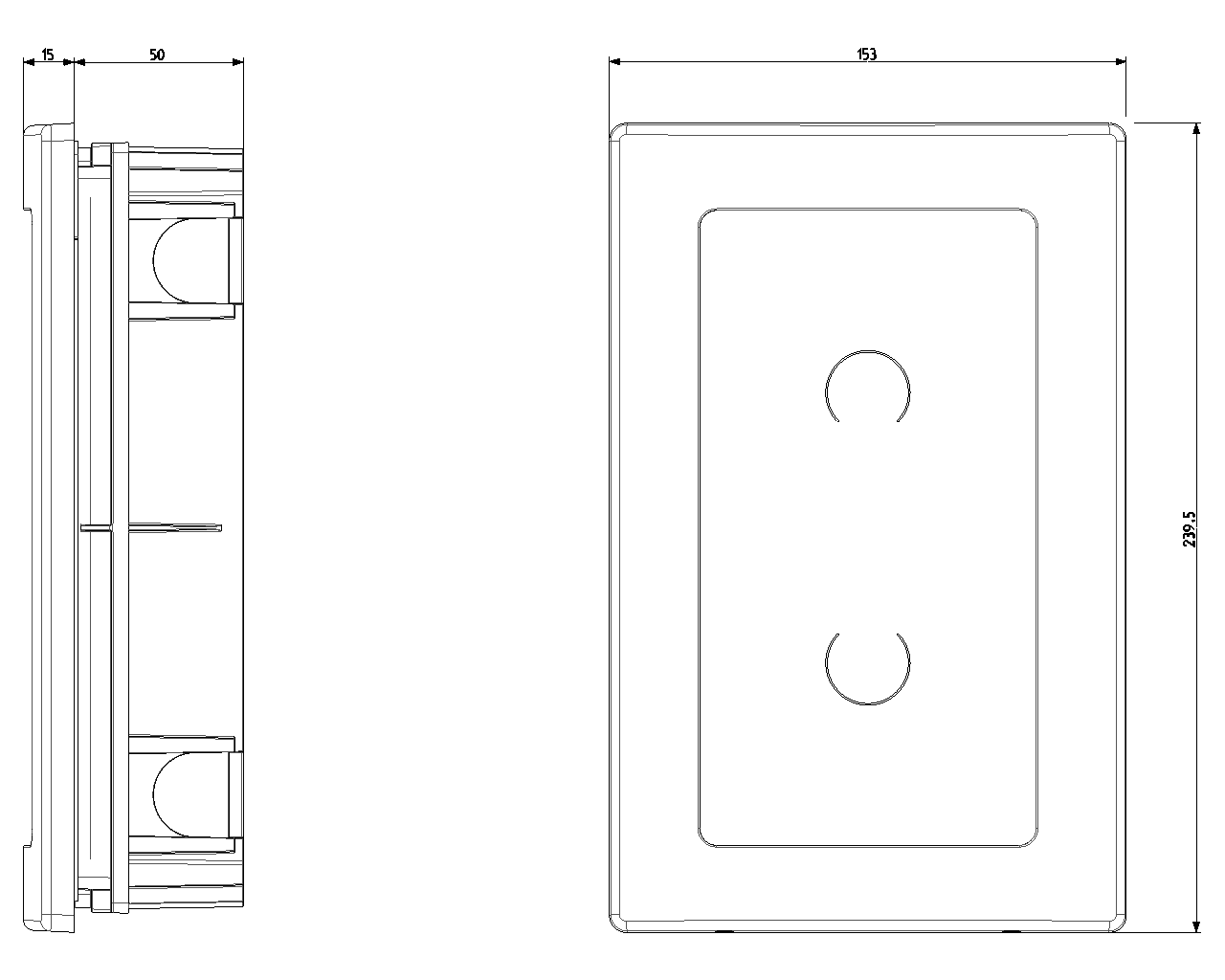

view encumbered art. 40179
PNG DXF

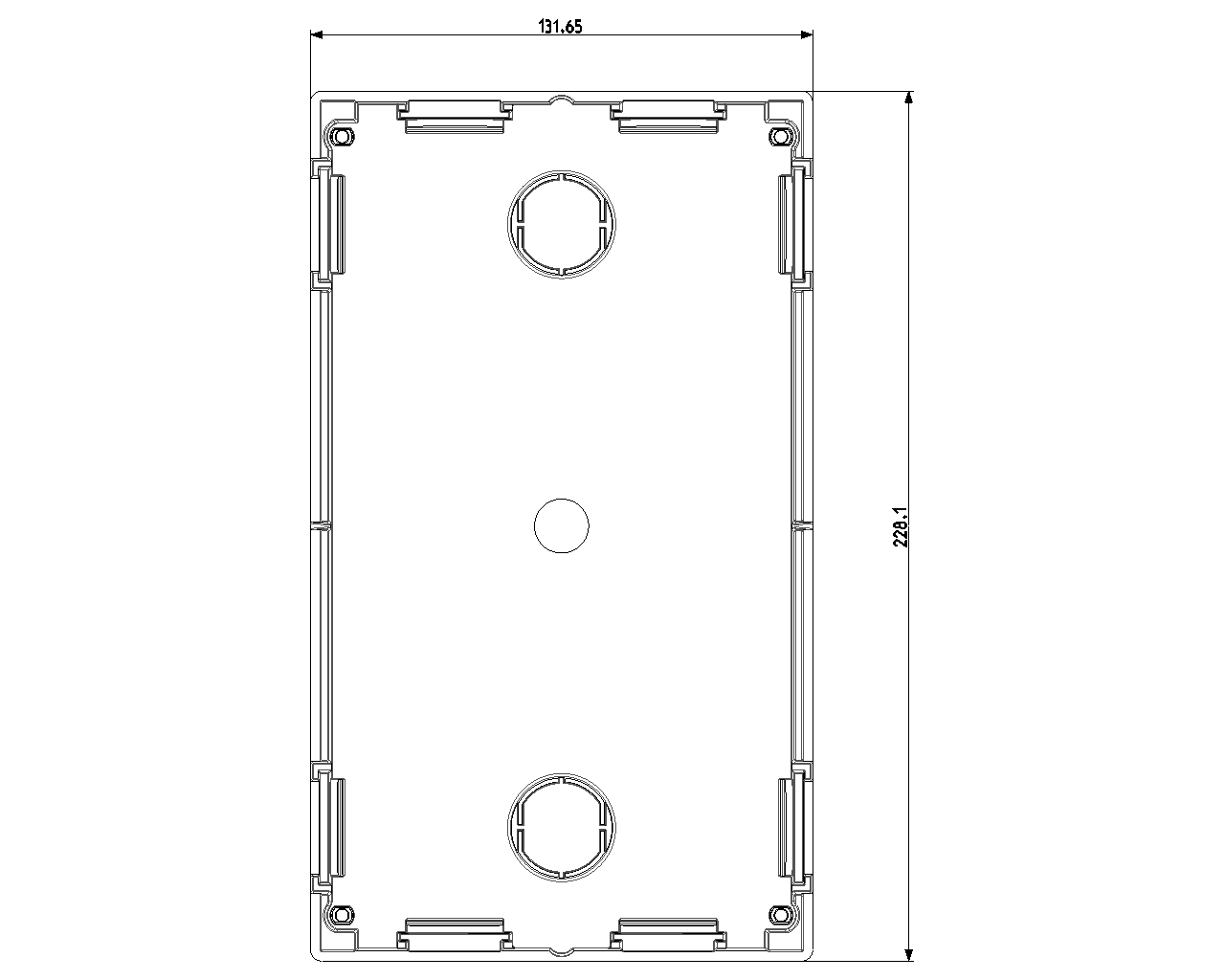

rear view art. 40179
PNG DXF

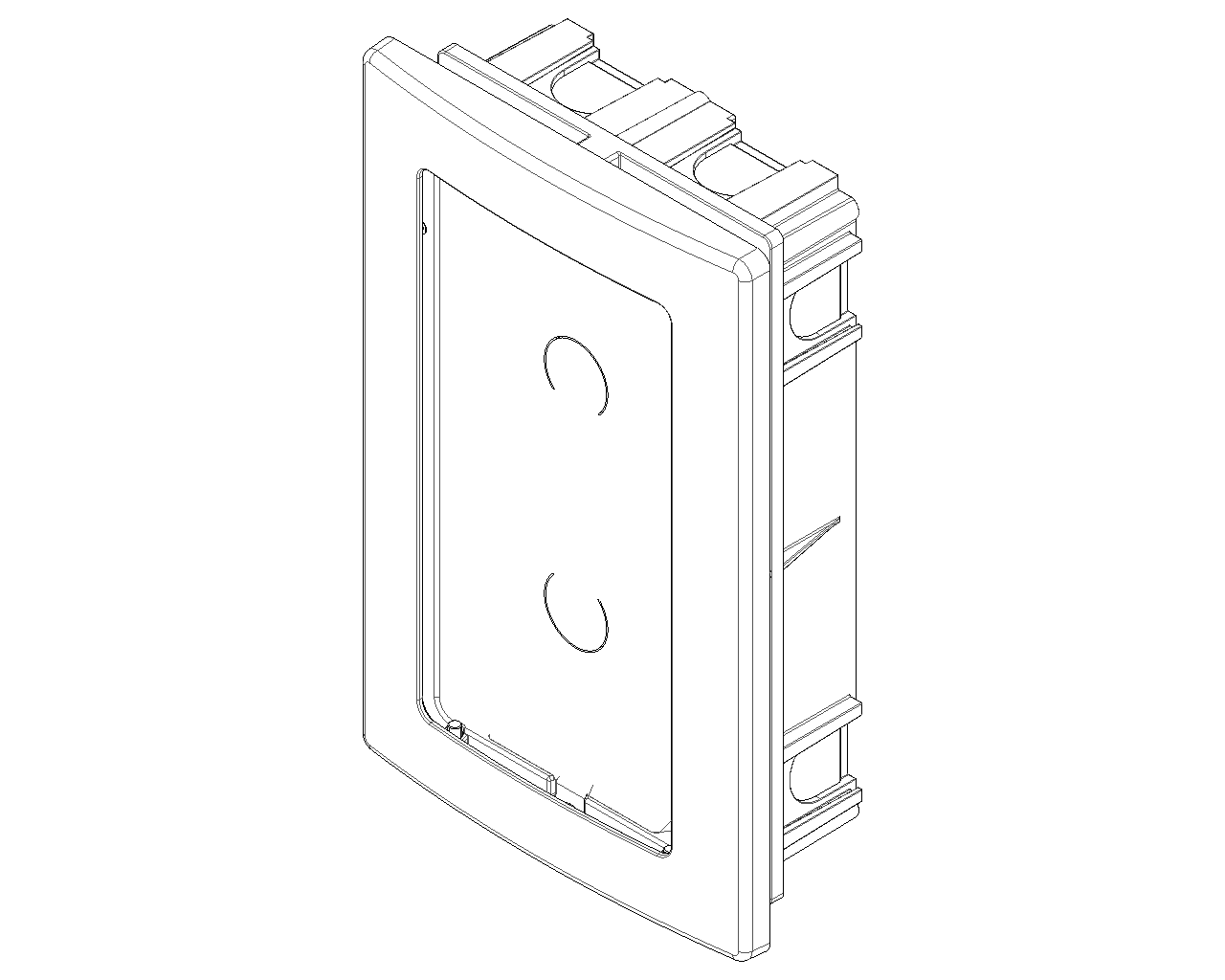

3D view art. 40179
PNG DXF
Class group
Communication technique (components and systems)
Class
Mounting frame for door station
Material
Zinc
Colour
White
Mounting method
Built-in
Width
153,00 mm
Height
239,50 mm
Depth
65,00 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352745100
1 NR
25.2x16.3x9.8 [cm]
872.6 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
