2-relay-input/output IP device - 40636

Pdf
40636

ELVOX Door entry / IP / Consumer unit

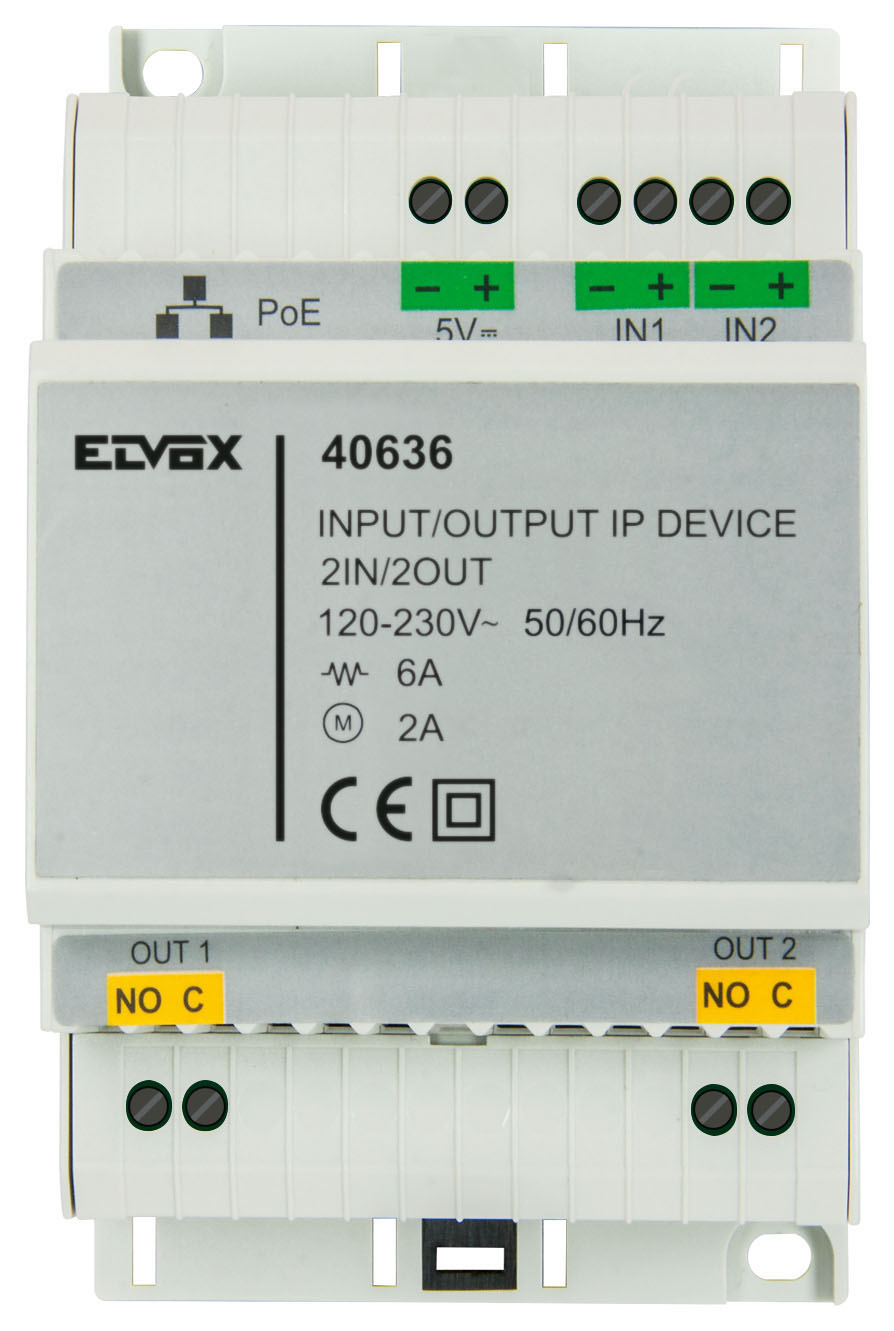

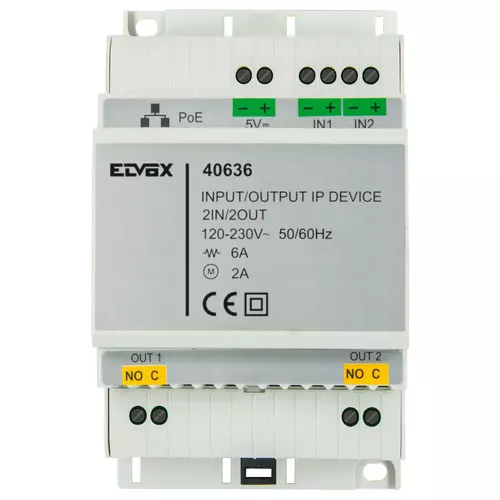

2-relay-input/output IP device
2-input/output device, IP standard, 2 6 A 230 V~ relay outputs, 2 inputs, PoE or 5 Vdc power supply, for DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules

Product Status
4 - Active

Class group
Communication technique
Class
Mounting accessories for door communication
Suitable for
Indoor station
Material
Other
Mounting method
Surface mounted (plaster)
Colour
Grey

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406291004
1 NR
11x10x6.8 [cm]
160 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
