IP Bullet mot.cam-4Mpx 7-22mm - Plus - 4621.0722DMA

Download as PDF PDF Add to portfolio

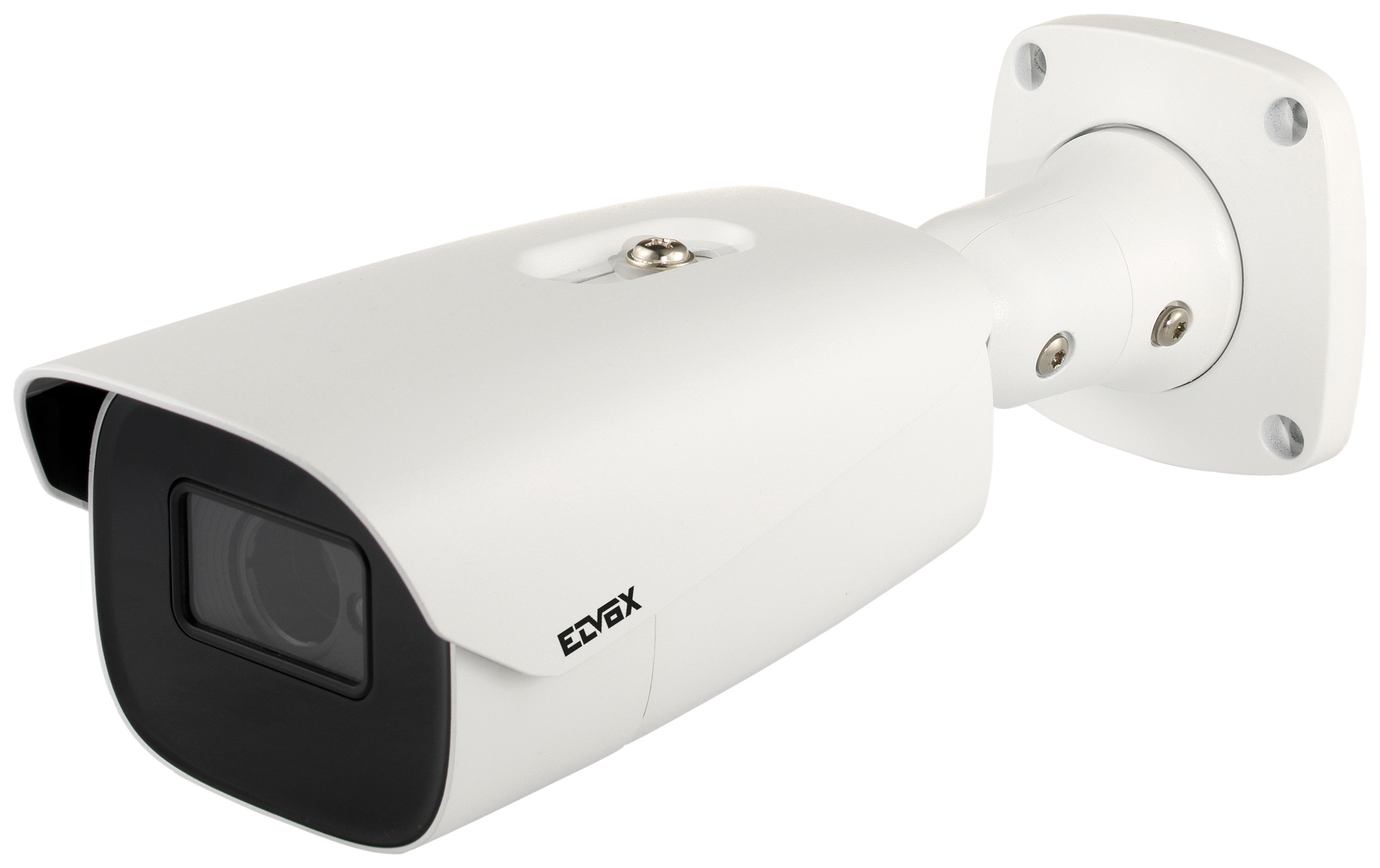

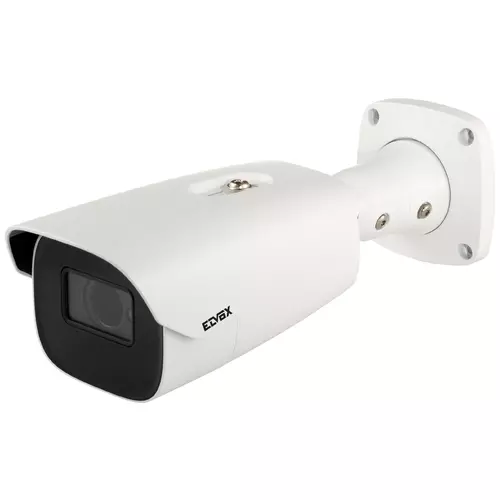

Immagine 4621.0722DMA
download product photo

4621.0722DMA
Safety / ELVOX CCTV / IP / Cameras

IP Bullet mot.cam-4Mpx 7-22mm - Plus
Day & Night colour IP bullet camera, CMOS 1/3” sensor, 4 Mpx resolution (2592×1520), 7-22 mm motor-driven varifocal lens, mechanical IR filter, H.265 and H.264 Multistream, PoE or 12 V DC power supply, SD CARD slot, IR 70-100 m, CVBS, Audio IN/OUT, AV, H-WDR, HLC, BLC, ROI, 3DNR, Mask, Motion, DC-Iris, SmartIR, RTSP functions, ONVIF protocol, protection degree IP67. Dimensions: 100x89x280 mm. Weight 1115 g

Product Status
3 - Active

You may also be interested in

46917.005
46917.005 - Pole bracket IP cams
46922.041
46922.041 - IP camera contacts bracket
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Bullet shape
Thermal camera
No
Number of pixels (Megapixel)
4
With lens
Yes
Modular (lens and camera separated)
No
Focal size
7,00 - 22,00 mm
Shutter control
DC
Lens connection
Other
Motor zoom
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3af (PoE)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
100 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
128
Number of digital inputs
0
Number of digital outputs
1
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
Other
Degree of protection (IP)
IP67
Horizontal field of view
16,70 - 42,50
With microphone
Yes
With loudspeaker
No
Power consumption
1.000,00 W
Supply voltage
0,10 - 12,01 V
Voltage type
DC
Colour
White
Diameter
8.700,00 mm
Height
87,00 mm
Width
8.700,00 mm
Depth
219,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352664135
1 NR
35x13.6x14.5 [cm]
557 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
