Tab h-o-h interphone w/handset, white - 7509/D

Pdf

7509/D
ELVOX Door entry system / 2F/2F+ video door entry system / Audio / Audio indoor stations

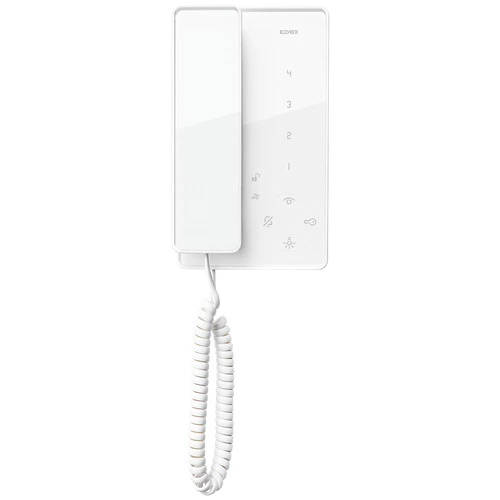

Tab h-o-h interphone w/handset, white
Surface mounting Tab interphone for Due Fili system with handset, loudspeaker for electronic calls, capacitive keypad for interphone functions and intercom calls, facility for hard of hearing function, screws for fixing in round or rectangular mounting box, white

Product Status
3 - Active

You may also be interested in

Class group
Communication technique
Class
Intercom
Model
Main station
Type of communication
Full-duplex
Type of system
Central
Single call function
Yes
Group call function
Yes
General call function
No
Installation technique
Bus system
Mounting method
Wall-/desk type model

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406226846
1 NR
22.5x21.7x8.4 [cm]
646 [g]
Barcode Qty 8 NR
8013406229656
8 NR
51.3x34.6x27.2 [cm]
5,168 [g]
Barcode Qty 10 NR
8013406305251
10 NR
28x24.5x21 [cm]
6,460 [g]
Question: How do you encode door entry units art. 7509 - Tab series - setting the primary and secondary identifier?
Answer: Encoding the main ID code: 1_ Lift the handset and press the Bell and Self-start buttons, holding them down until the Bell button starts to flash. 2_ Release the buttons. 3_ Within 5 seconds from release, press the Lock button and hold down until a warning beep is given from the indoor station, and communication between this and the external electronic unit has been established. 4_ Release the Lock button. 5_ Press the button (which?) or type in the code you wish to assign into the entrance panel.  Encoding the secondary ID code: Lift the handset and press the Bell and Self-start buttons, holding them down until the Bell button starts to flash. 2_ Release the buttons. 3_ Within 5 seconds from release, press the Lock and Self-start buttons and hold down until a warning beep is given from the indoor station, and communication between this and the external electronic unit has been established. 4_ Release the Lock and Self-start buttons. 5_ Press the button (which?) or type in the code you wish to assign into the entrance panel.
