R16965
Smart systems&products / By-me Plus / IDEA / Devices

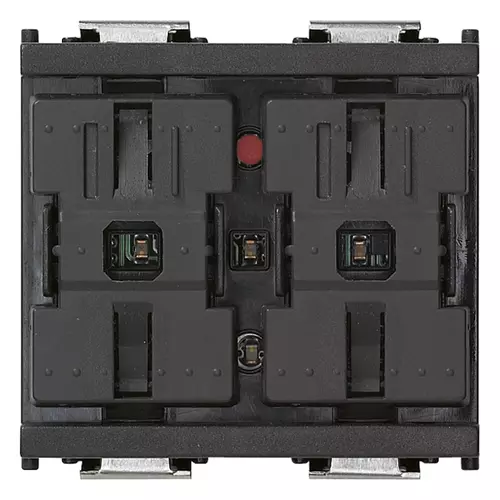

Two simple push buttons+actuator grey
Spare control device with two simple push buttons and actuator with change-over relay output 8 A 120-230 V~, to be completed with 1 or 2 module interchangeable buttons, grey - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
200
Number of poles
1
Nominal voltage
230 V
Rated current
8,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40
Device width
49,80 mm
Device height
50,10 mm
Device depth
44,80 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352617100
1 NR
11.2x9.6x9.8 [cm]
145.07 [g]
