IP40 surface consumer unit 5M +door - V50405

Pdf
V50405

Consumer units / Surface mounting / IP40 consumer units

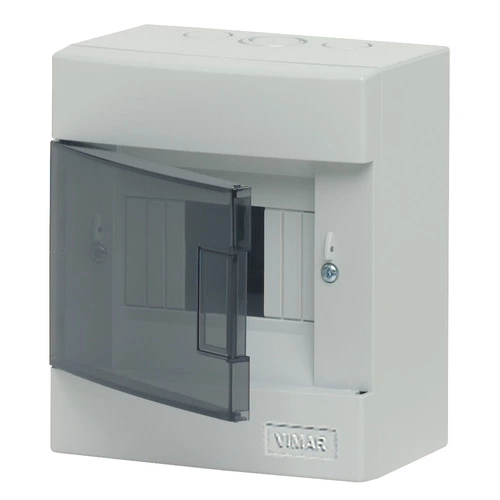

IP40 surface consumer unit 5M +door
Surface mounting consumer unit with vertically hinged transparent door, 5 (4+1) modules, top and bottom knockouts, RAL 7035 grey. Pre-set for support for earth terminal block V51859

Product Status
3 - Active

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted (plaster)
Number of rows
1
Width in number of modular spa
5
Type of cover
Door
Cover model
Closed
Transparent cover/door
Yes
Material housing
Plastic
Height
170,00 mm
Width
145,00 mm
Depth
95,00 mm
Built-in depth
0,00 mm
Internal depth
94,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
With lock
No
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152571
1 NR
14.5x17x9.5 [cm]
349.87 [g]
Barcode Qty 16 NR
8007352152588
16 NR
62x42x26 [cm]
6,453.33 [g]
