IP55 surface consumer unit 5M+door grey - V51005

Pdf
Vimar - V51005 - IP55 surface consumer unit 5M+door grey
Vimar - V51005 - IP55 surface consumer unit 5M+door grey

V51005
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

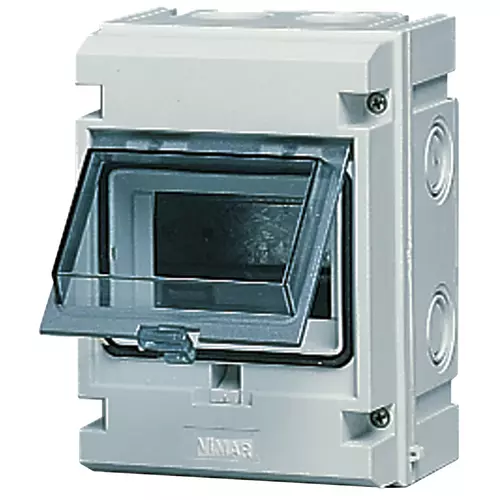

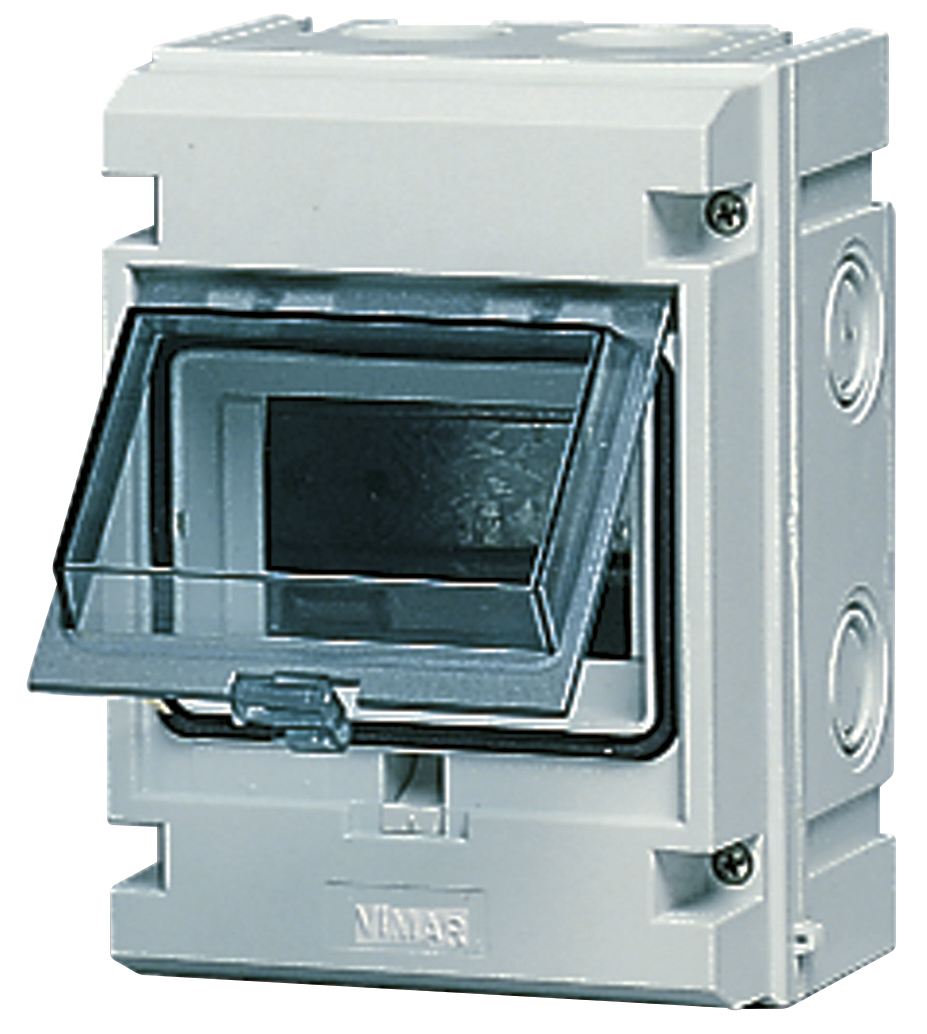

IP55 surface consumer unit 5M+door grey
Surface mounting consumer unit with horizontally hinged transparent door, 5 (4+1) modules, RAL 7035 grey. Delivered with screwcaps for double insulation. Pre-set for 2 supports for earth terminal blocks V51853. Possibility of adjoining to additional consumer units with joining accessories V51905

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
5
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
111,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP55
Height
175,00 mm
Width
125,00 mm
Depth
112,00 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352078918
1 NR
12.5x17.5x11.2 [cm]
482.67 [g]
Barcode Qty 15 NR
8007352078925
15 NR
45x60x20 [cm]
8,197.33 [g]
