IP55 surface consumer unit 12M+door grey - V51012

Pdf
Vimar - V51012 - IP55 surface consumer unit 12M+door grey
Vimar - V51012 - IP55 surface consumer unit 12M+door grey

V51012
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

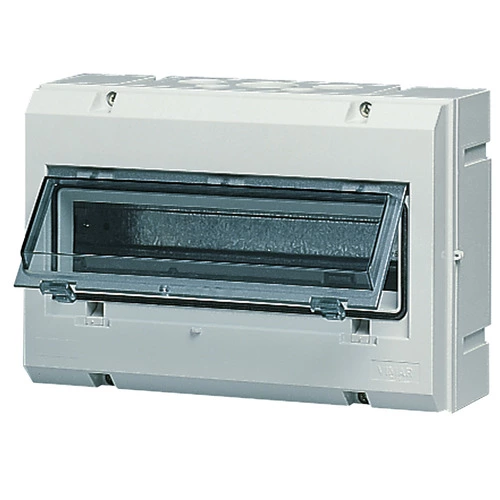

IP55 surface consumer unit 12M+door grey
Surface mounting consumer unit with horizontally hinged transparent door, 12+1 modules, RAL 7035 grey. Delivered with screwcaps for double insulation. Pre-set for support for earth terminal block V51854. Possibility of adjoining to additional consumer units with joining accessories V51905

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
12
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
118,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP55
Height
200,00 mm
Width
285,00 mm
Depth
119,00 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352078956
1 NR
28.5x20x11.9 [cm]
1,004.67 [g]
Barcode Qty 10 NR
8007352078963
10 NR
61x42x35 [cm]
11,029.33 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
