IP40 flush consumer unit 4M +door white - V52404

Pdf
Vimar - V52404 - IP40 flush consumer unit 4M +door white
Vimar - V52404 - IP40 flush consumer unit 4M +door white

V52404
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

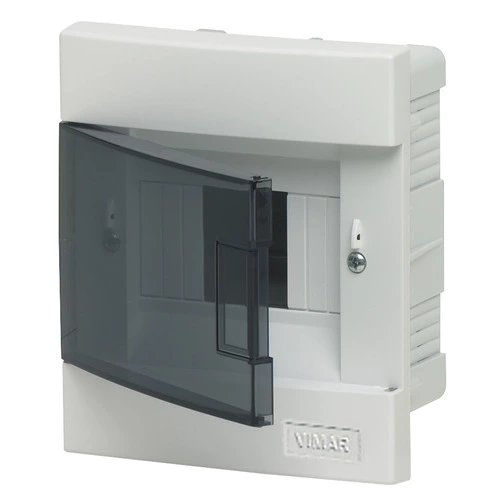

IP40 flush consumer unit 4M +door white
Flush mounting consumer unit with vertically hinged transparent door, 4 modules, RAL 9003 white

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
1
Width in number of modular spacings
4
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
73,00 mm
Inner depth
92,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
White
RAL-number
0
Degree of protection (IP)
IP40
Height
166,00 mm
Width
145,00 mm
Depth
93,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152670
1 NR
14.5x16.6x9.3 [cm]
315.53 [g]
Barcode Qty 40 NR
8007352152687
40 NR
59x47x40.4 [cm]
13,815.33 [g]
