Flush consumer unit 12M smokegrey - V53112

Pdf
Vimar - V53112 - Flush consumer unit 12M smokegrey
Vimar - V53112 - Flush consumer unit 12M smokegrey

V53112
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

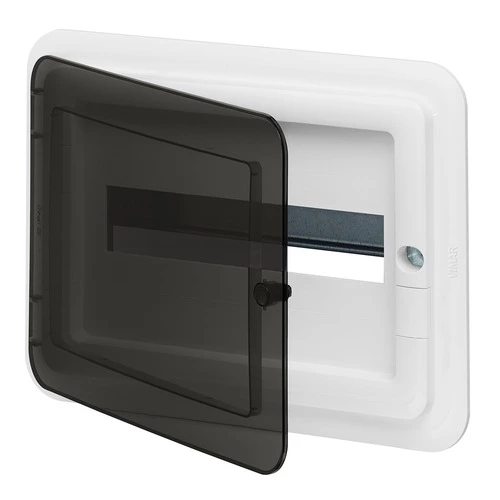

Flush consumer unit 12M smokegrey
12-module flush mounting consuner unit, IP40, with DIN (60715 TH35) rail and smoked glass door

Product Status
3 - Active

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
1
Width in number of modular spacings
12
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
Yes
Housing material
Plastic
Built-in depth
75,70 mm
Inner depth
107,20 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
Height
259,90 mm
Width
344,90 mm
Depth
108,20 mm

01. IMQ - Italy

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352510128
1 NR
37.5x28.5x14 [cm]
1,137.4 [g]
