Flush mounting box for V53136 - V53336

Pdf
V53336

Consumer units / Flush mounting / Consumer units mounting boxes

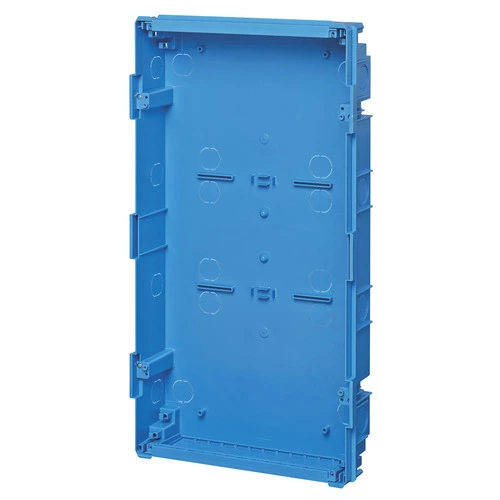

Flush mounting box for V53136
Flush mounting box for 36-module consumer unit (GW 650 °C) for masonry walls, light blue. Dimensions 316x588x80 mm

Product Status
3 - Active

Class group
Distribution boards
Class
Empty cabinet
Mounting method
Flush mounted (plaster)
Type of cover
None
Cover model
None
Type of door
None
Transparent cover/door
No
With lock
No
Nominal current (In)
0 A
Height
588 mm
Width
316 mm
Depth
80,00 mm
Built-in depth
80,00 mm
Internal depth
78,00 mm
RAL-number
0
Number of modules
36
Number of rows
3
Width in number of modular spacings
36
Number of openings for flange plates
0
Extension possible
No
Number of conduit inlets
20
Material housing
Plastic
Surface protection
Untreated
With mounting plate
No
Suitable for outdoor use
No
Suitable for lightning protection
No
Degree of protection (IP)
IP40
Protection class
II
Circuit integrity
None
Minimum order quantity: 4 NR

Barcode

Barcode Qty 1 NR
8007352509931
1 NR
58.5x31.5x8 [cm]
854.6 [g]
Barcode Qty 4 NR
8007352509948
4 NR
58x38x42.5 [cm]
4,346 [g]
