Flush-mount box 3M f/hollow walls blue - V71703

Pdf
Vimar - V71703 - Flush-mount box 3M f/hollow walls blue
Vimar - V71703 - Flush-mount box 3M f/hollow walls blue

V71703
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

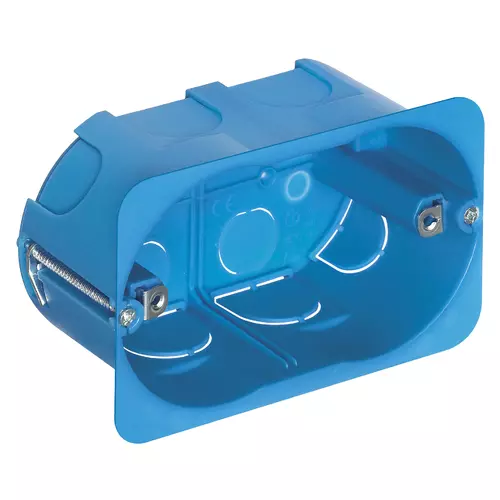

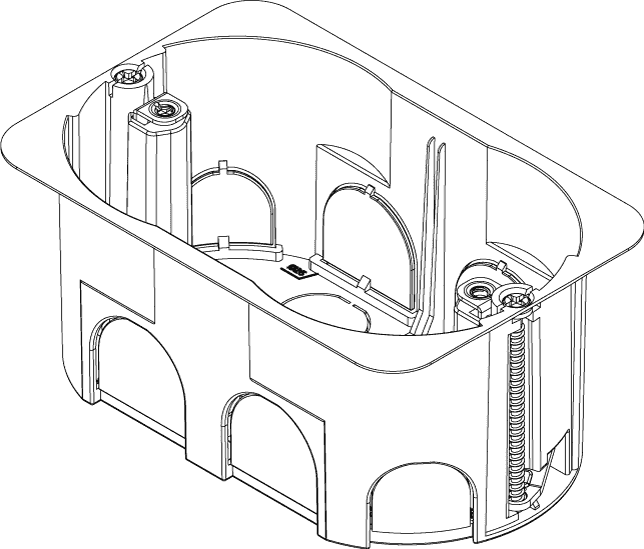

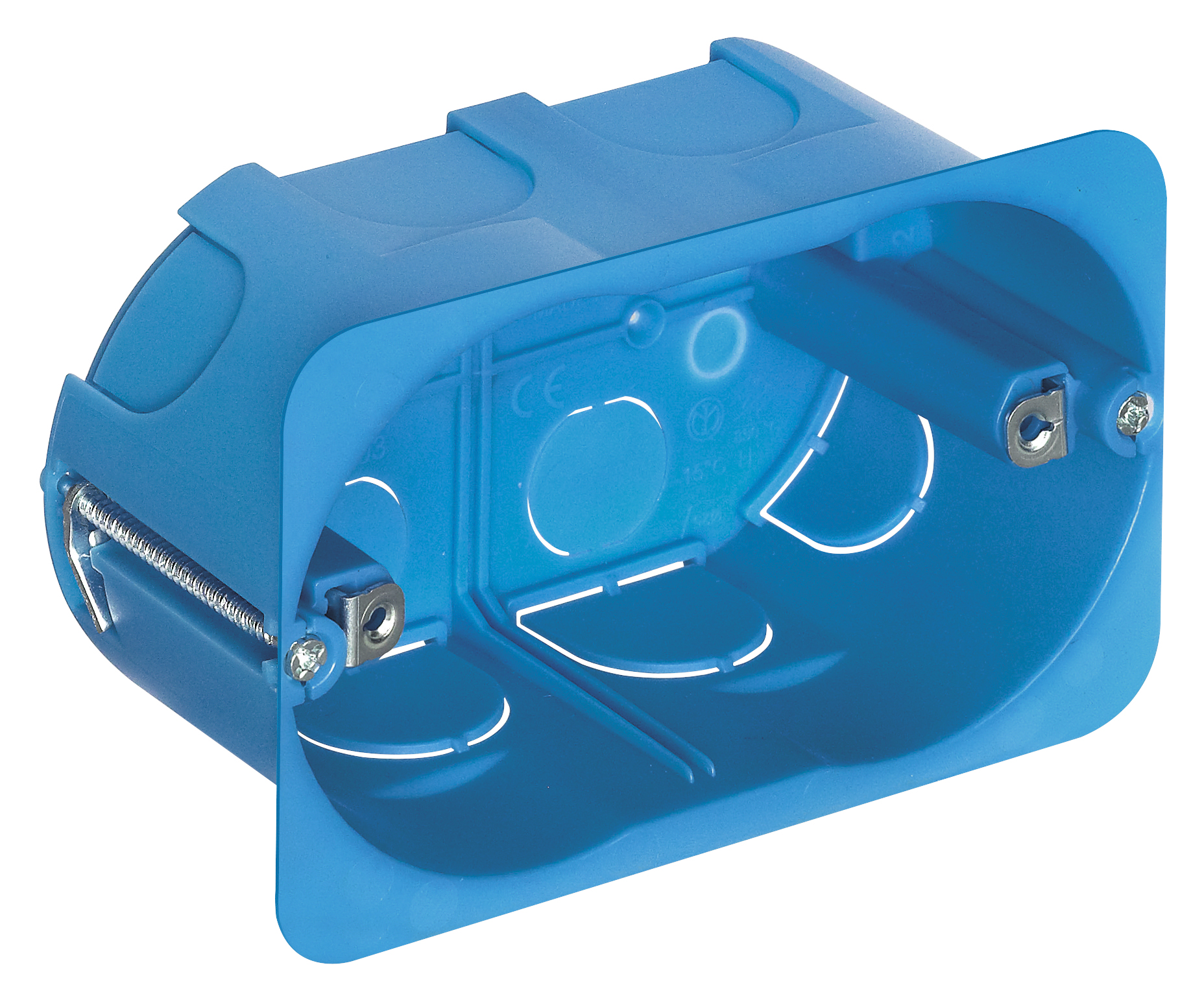

Flush-mount box 3M f/hollow walls blue
3-module mounting frame (GW 850 °C) for hollow walls, light blue

  • Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)

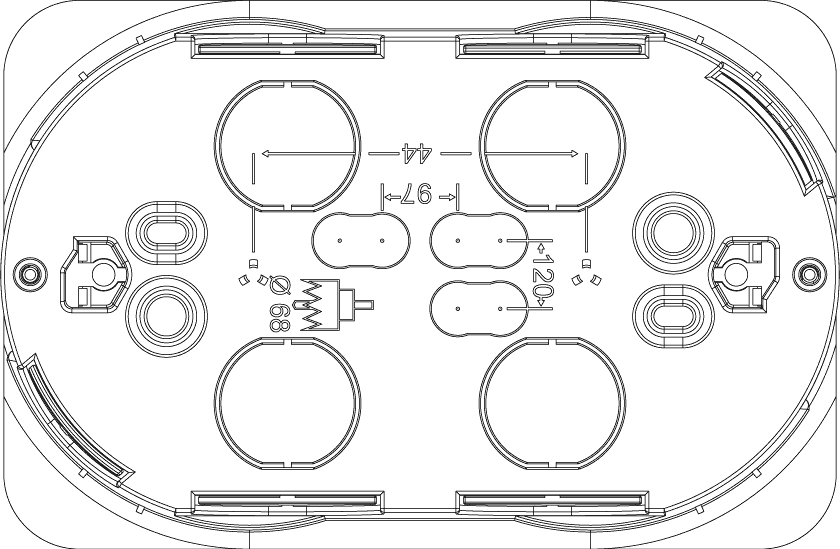

  • Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
  • Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
  • Fixing lugs for support screws made of metal
  • Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Product Status
3 - Active

You may also be interested in

V71633
V71633 - Flat cover 3M
V71573
V71573 - Accessory for 3M boxes for hollow walls
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Hollow wall
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm

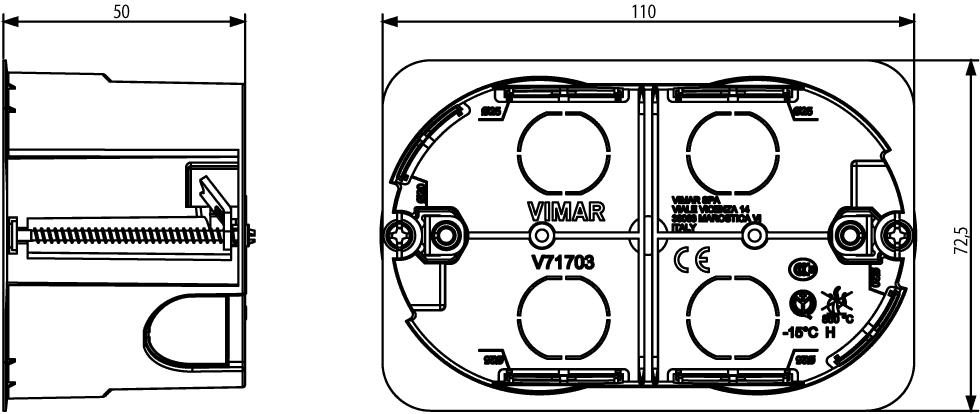

Length
72,50 mm
Width
110,00 mm
Depth
0,00 - 50,00 mm
Inner depth
50,00 mm
For number of electric fittings
3
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
14
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352425675
1 NR
11x7.3x5 [cm]
36 [g]
Barcode Qty 5 NR
8007352425682
5 NR
11x7.3x25 [cm]
180 [g]
Barcode Qty 135 NR
8007352425699
135 NR
59x38.5x30 [cm]
5,690 [g]
