Junction box hollow walls 298x164x73,5mm - V72007

Pdf
V72007

Enclosures and mounting boxes / Junction flush mounting boxes / For hollow walls

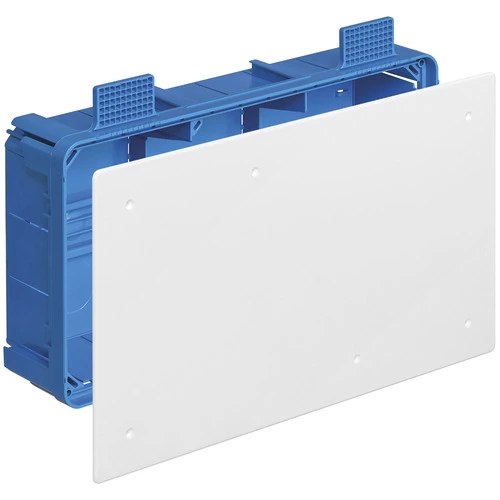

Junction box hollow walls 298x164x73,5mm
Flush mounting junction box for hollow walls with white cover and fixing screws.Dimensions 298x164x73.5 mm

Product Status
3 - Active

Class group
Connection devices
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush mounted (plaster)
Shape
Rectangular
Construction type
Cable junction box
Model
Other
Provided with revolving ring
No
Connectable
Yes
Equipped with
None
Diameter
0 mm
Length
298,00 mm
Width
298,00 mm
Depth
0,00 - 73,50 mm
Internal depth
73,50 mm
For number of electric fittings
0
Mounting switching equipment
Spread
With screws
Yes
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
Other
Pipe locking
Yes
Pipe locking optional
Yes
Inlet from the rear
Yes
Number of inlets
18
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP20
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
With nail lugs
Yes
Special application
None
Minimum order quantity: 7 NR

Barcode

Barcode Qty 1 NR
8007352589940
1 NR
32.3x22.7x7.6 [cm]
496 [g]
Barcode Qty 7 NR
8007352589957
7 NR
59x38.5x24 [cm]
4,188 [g]
