Revers.rolling door gear motor 230V160kgCode ZP08

Download as PDFPDF

ZP08: Safety / ELVOX Automations / Motors / Windows and doors

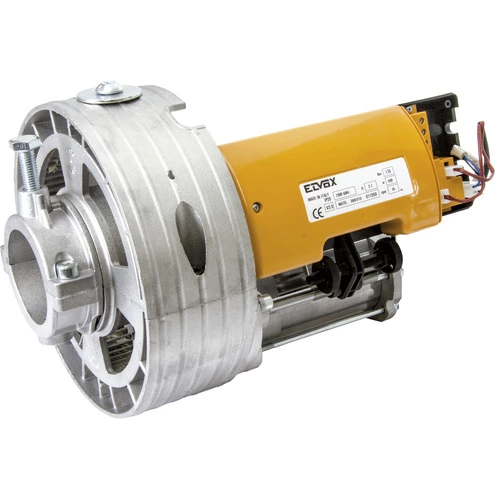

Revers.rolling door gear motor 230V160kg: Reversible 230 V~ gear motor for rolling doors with 60 mm diameter shaft and 200 mm diameter spring box, lifting capacity 160 kg, residential and industrial use, facility for ZXP1 electromechanical brake, pair of adaptors for 48 mm diameter shaft and 220 mm diameter spring box, 4 metres of 4x1 mm2 cable
Product Status: 2 - Will be discontinued

Sheets, Manuals, Documentation

Installer manual (953 kb)

Class group
Drive systems for roller shutters, doors, windows

Class
Tube mounted motor

Outer diameter
220 mm

Torque
155 N/m

For roller blinds
No

For awnings
No

Max. weight of roller shutter
160 kg

Type of end switch
Mechanical

Back jump
No

Electronic route monitoring
No

Electronic obstacle recognition
No

With carrier
Yes

With shaft adaptor
Yes

Length
460 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

8013406191113

41.3x23.5x24.5 [cm]

7,100 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
