Plate 6M (2+2+2)x71 techn.carbon matt - 09666.14

Pdf
09666.14

Neve Up / Cover plates / Snap fixing technopolymer cover plates

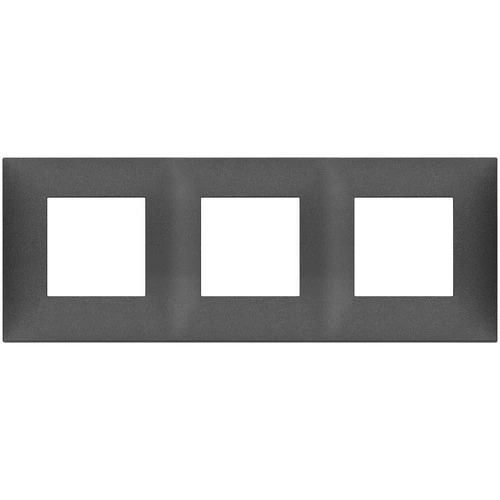

Plate 6M (2+2+2)x71 techn.carbon matt
6-module cover plate (2+2+2, distance between centres 71 mm), technopolymer, carbon matt

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (akin)
7016
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
224,00 mm
Height
86,00 mm
Depth
8,50 mm
Built-in width
224,00 mm
最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352660526
1 NR
25x9x0.5 [cm]
33.07 [g]
Barcode Qty 5 NR
8007352660533
5 NR
10x4.5x29 [cm]
205 [g]
