46XVR.FS08
Safety / ELVOX CCTV / AHD / DVR
8-channel AHD 4K Lite HDD XVR - 1TB
Hybrid DVR with 8 channels AHD/CVBS compatible with 8 additional IP cameras, professional 1 TB HDD, H.265 compression, CsC function, supports AHD up to 8 Mpx (8Mpx @8fps, 8Mpx Lite@ 12fps, 5Mpx @12fps, 5Mpx Lite@20fps, 4/3Mpx @12fps, 4Mpx Lite/1080p/720/WD1@25 fps) and IP up to 8 Mpx (25 fps), 1 in/1 out audio, RS485 port, 2 USB, BNC output (CVBS or SPOT), VGA up to 1080p and HDMI up to 4K, RJ45 Ethernet, web interface, CVM, remote control and QRCODE. 12 VDC power supply unit included. Dim. 255x234x42 mm
Product Status
9 - Discontinued
Sheets, Manuals, Documentation
- Integrazione Elvox TVCC nei touch screen (779 kb)
- Elvox CCTV integration in touch screens (740 kb)
- Multilanguage instructions sheet (1500 kb)
- Interfaccia grafica videoregistratori (25361 kb)
- Videorecorder graphical user interface (25293 kb)
- Configurazione analisi video per DVR/NVR (13835 kb)
- DVR/NVR video analysis configuration (13802 kb)
Product Software

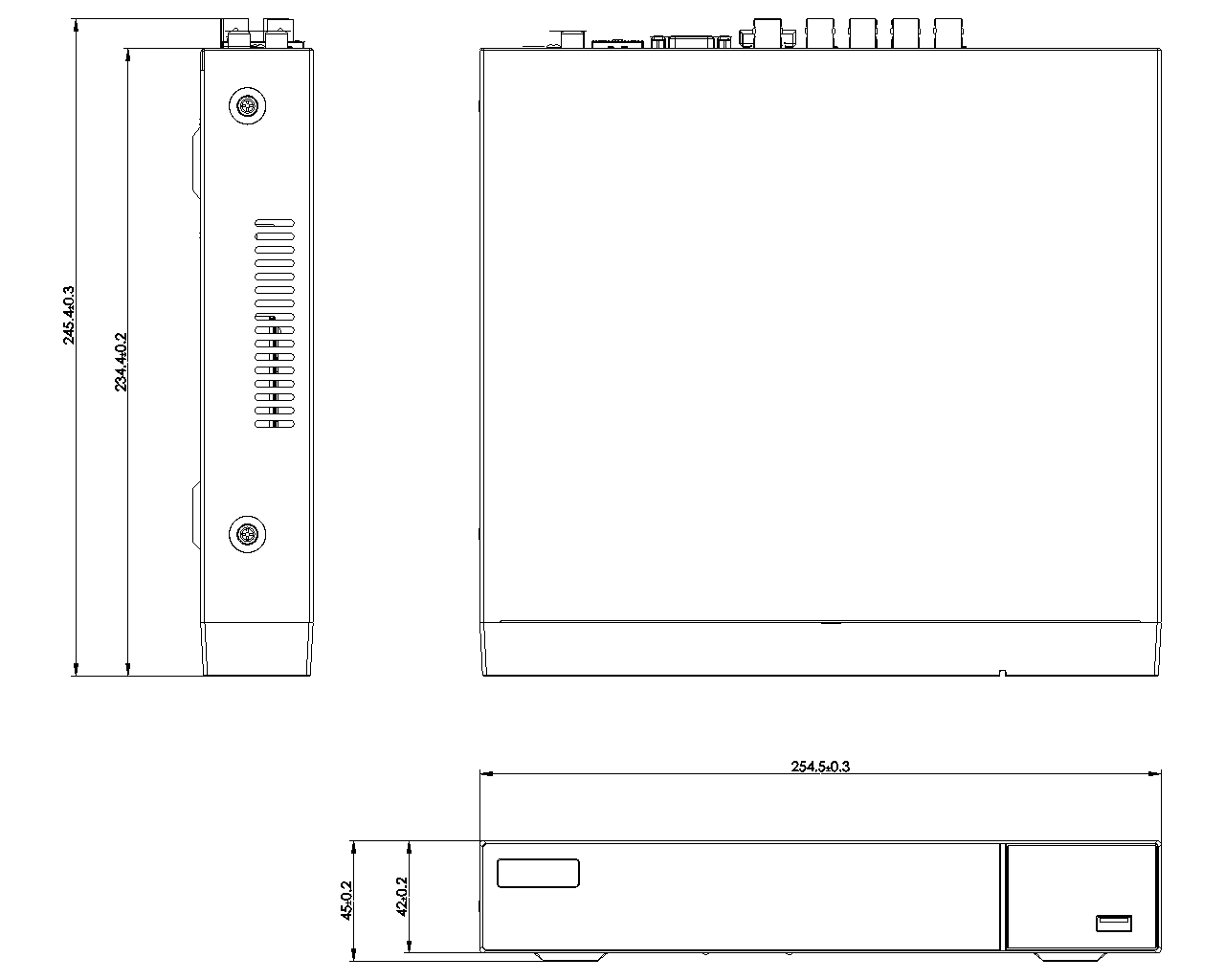

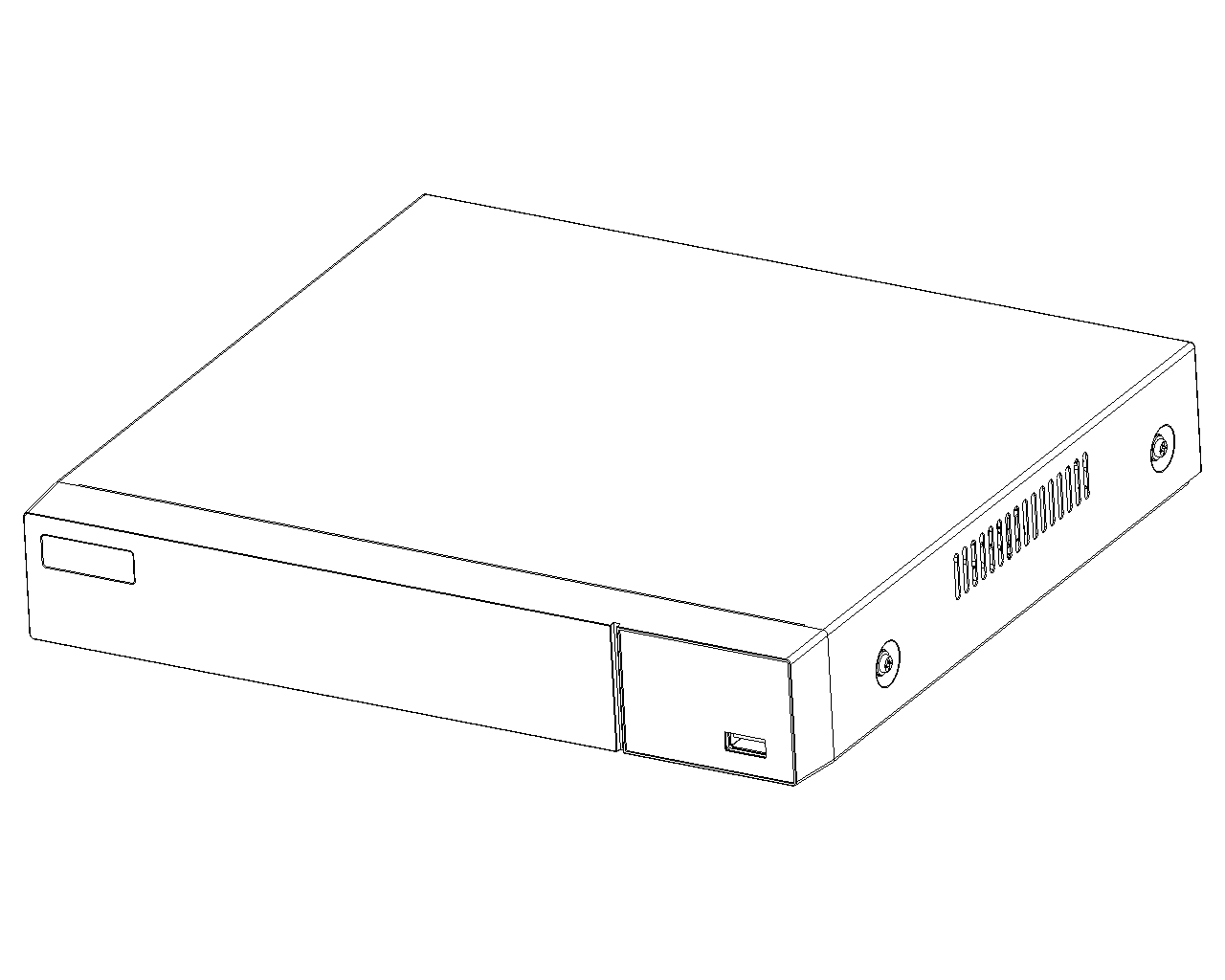

Drawings
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
