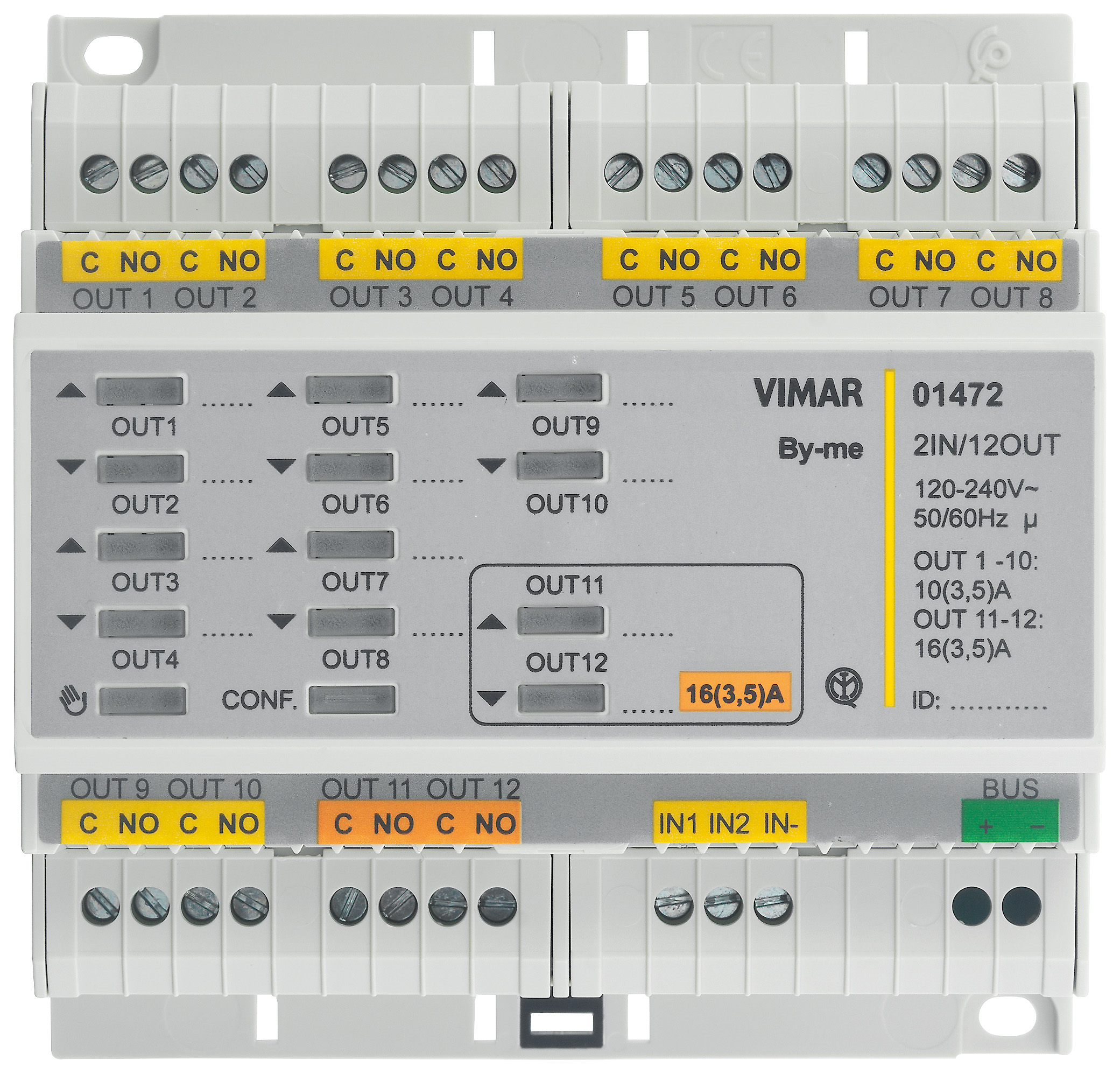

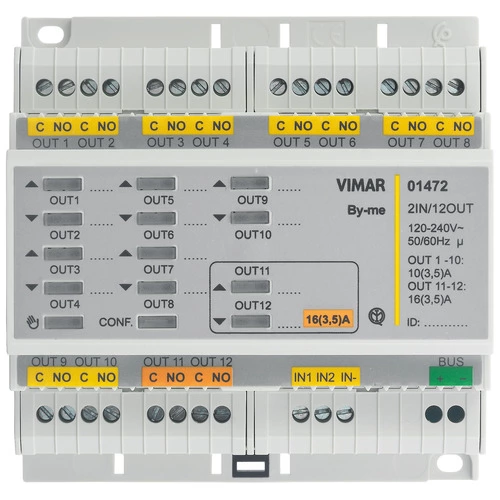

By-me 12 OUT 6M DIN actuatorCode 01472

Download as PDFPDF

01472: Smart systems&products / By-me Plus / Shared components / DIN devices
By-me 12 OUT 6M DIN actuator: By-me Plus electronic control module with 2 inputs and 12 programmable outputs for residential or hotel applications, programmable digital inputs for potential-free contacts with control function for lights, roller shutters and to recall a scenario, 10 NO 10(3.5) A or 3.5 A motor 50/60 Hz 120-240 VAC relay outputs, 2 NO 16 (3.5) A or 3.5A motor 120-240 VAC 50/60 Hz relay outputs programmable with control function for lights, roller shutters with slat orientation, climate control and circulation pump, push buttons for local control, By-me home automation system, installation on DIN rails (60715 TH35), occupies 6 modules size 17.5 mm.
Product Status: 3 - Active

Sheets, Manuals, Documentation

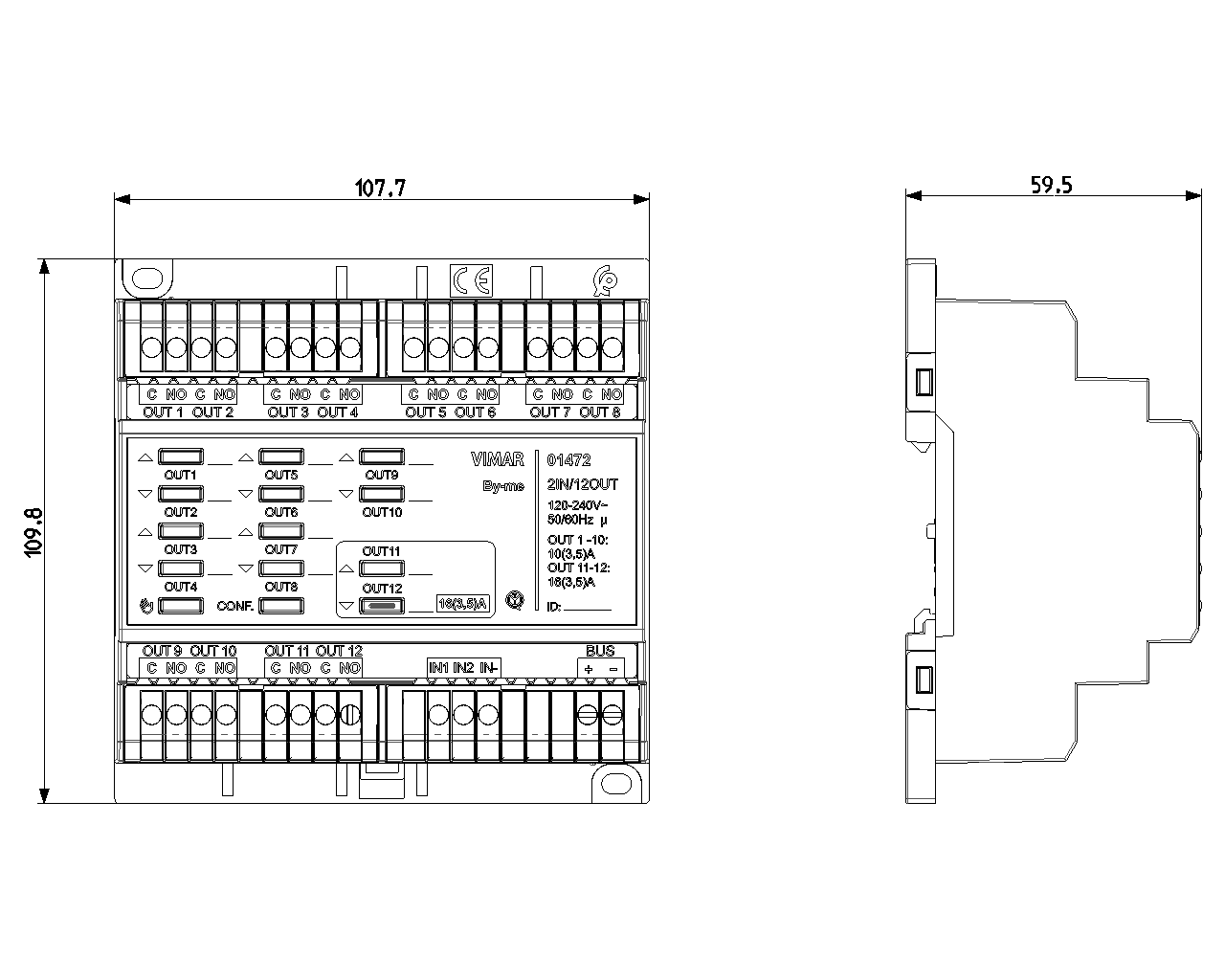

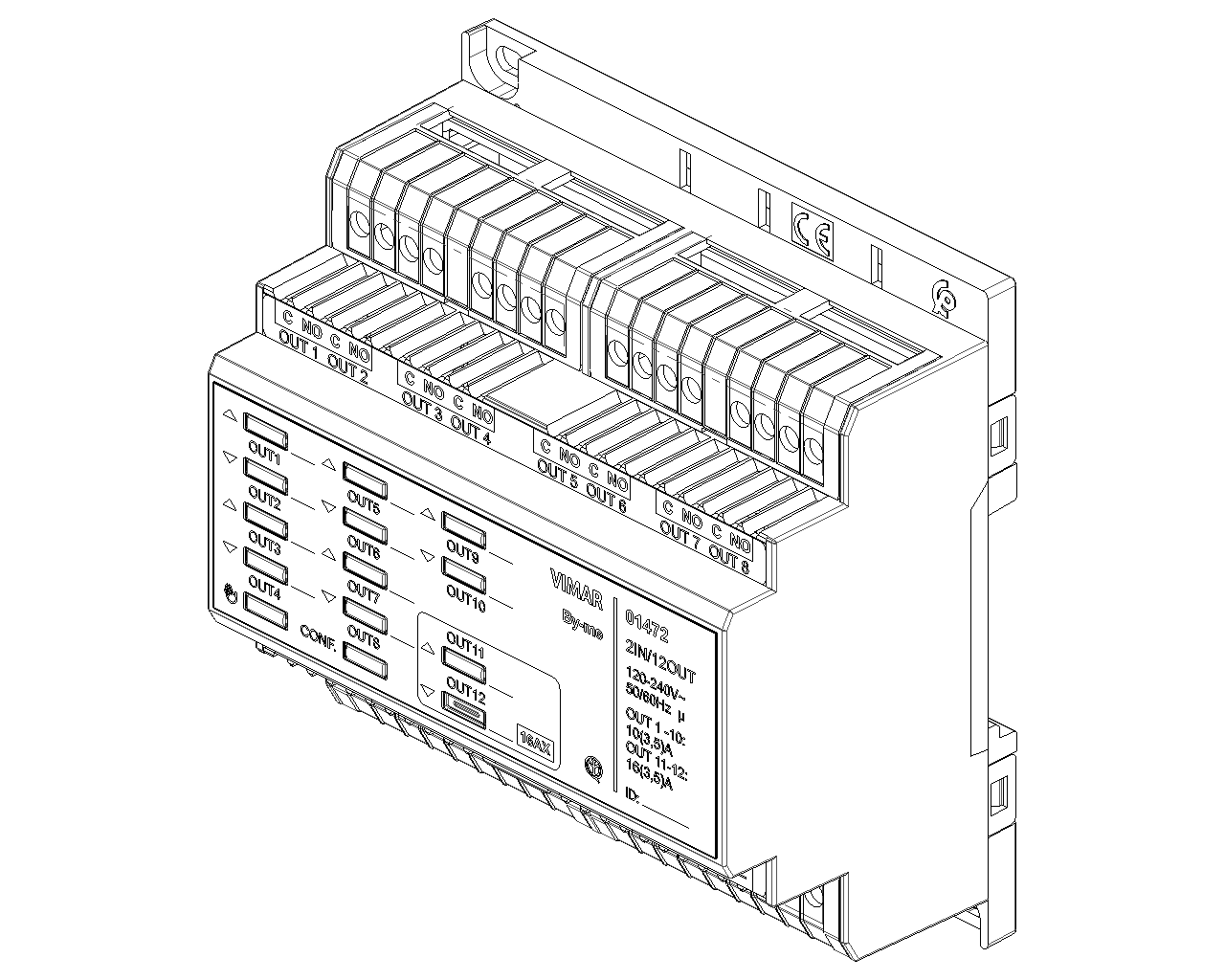

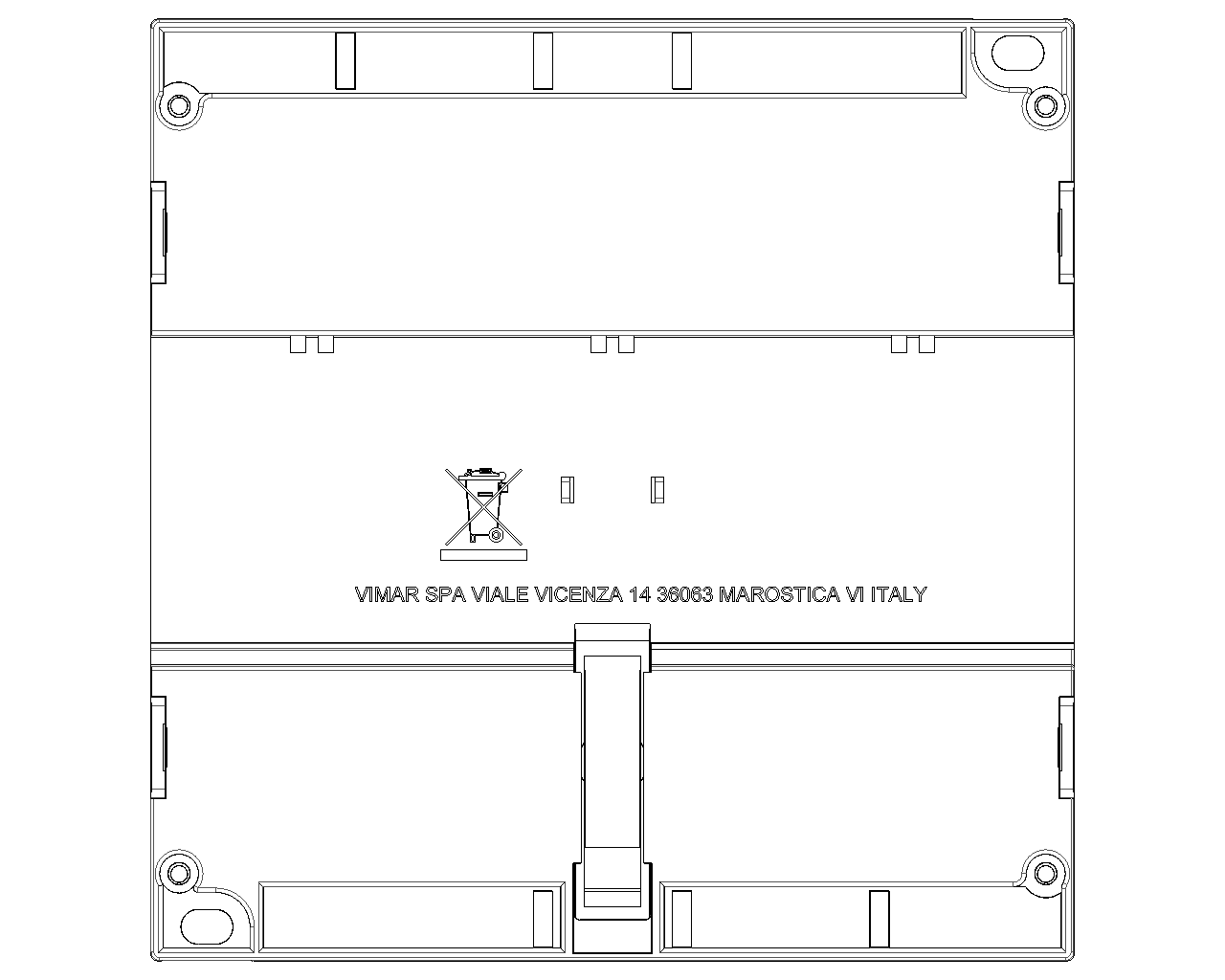

Drawings

Class group
Installation bus systems

Class
Switch actuator for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequency)
No

Bus system KNX Secure
No

Bus system KNX Secure-RF (Radio Frequency)
No

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Radio frequency bidirectional
No

Number of linkable devices
4

Mounting method
Other

Width in number of modular spacings
4

Local operation/hand operation
Yes

With LED indication
Yes

Number of digital inputs
4

Suitable for C-load
No

Max. number of switching contacts
4

Rated current
16 A

Rated operating voltage
120,00 - 230,00 V

Different phases connectable
No

With bus connection
Yes

Bus module detachable
Yes

Modular expandability
No

Degree of protection (IP)
IP20

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

8007352817647

11.9x11.5x6.9 [cm]

337 [g]
