By-alarm Plus IR 12+12m IP55 surf.det.Code 01741

Download as PDFPDF

01741: Safety / By-alarm Plus / Surface mounting components / Non-modular components

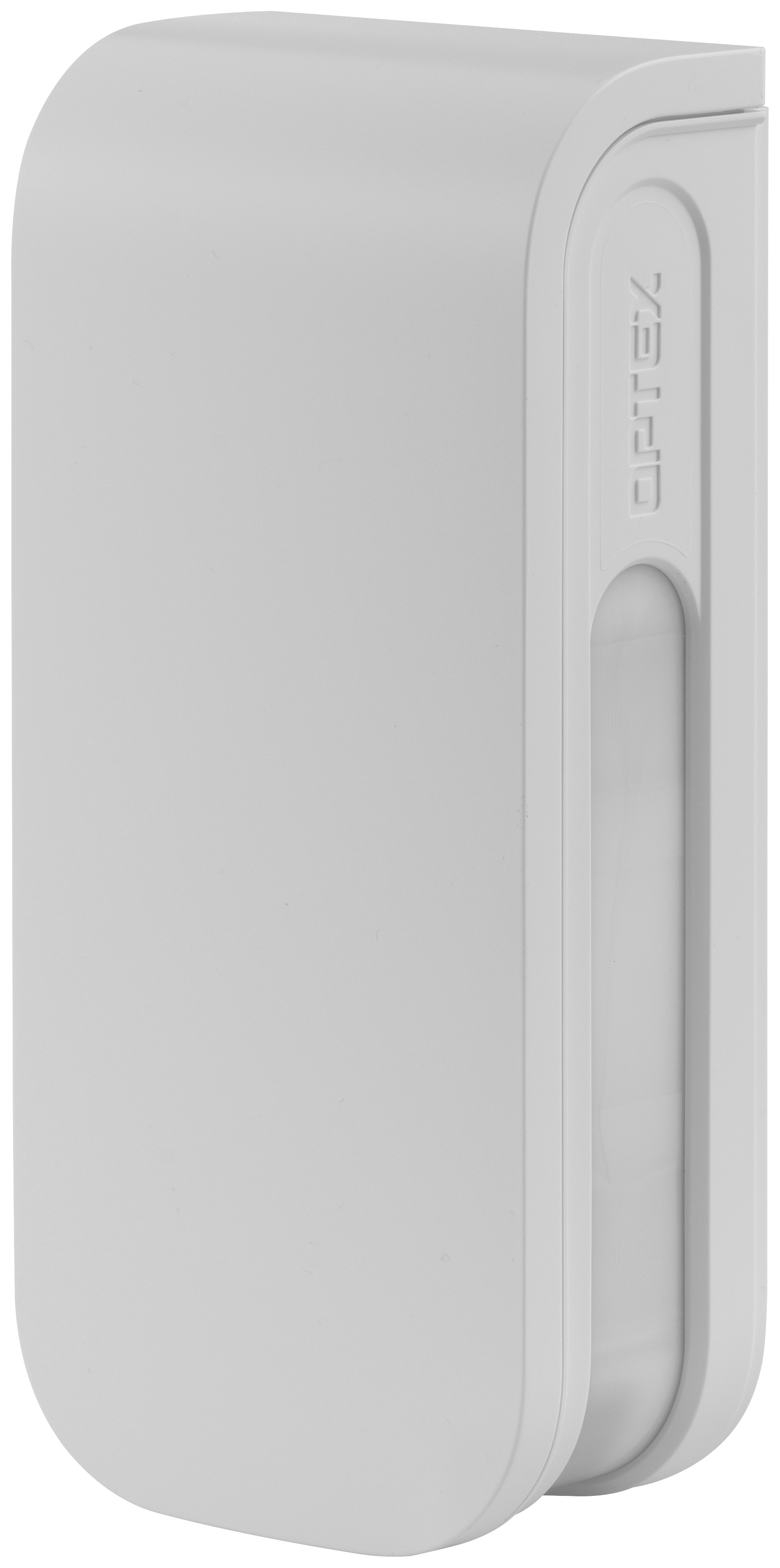

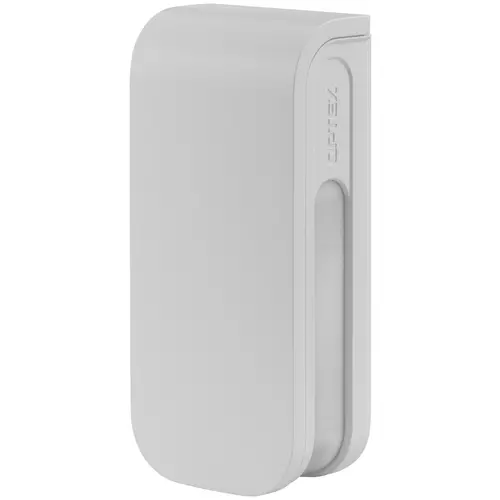

By-alarm Plus IR 12+12m IP55 surf.det.: By-alarm Plus passive infrared detector for the protection of building exteriors, independent 12-metre curtain-effect detection on each side (left and right), with anti-masking, PET immune, IP55, 2 NO and NC 28 VDC 0.1 A relay outputs per output, 9.5-18 VDC 34 mA 12 V power supply, surface mounting, for outdoor use
Product Status: 3 - Active

You may also be interested in

01742 - By-alarm Plus DT IP55 volum.surf.detect.

01743 - By-alarm Plus IR IP65 60m surf.barrier

01723 - By-alarm Plus DT IP54 curtain surf.det.

01740 - By-alarm Plus IR curtain PET imm.detect.

Sheets, Manuals, Documentation

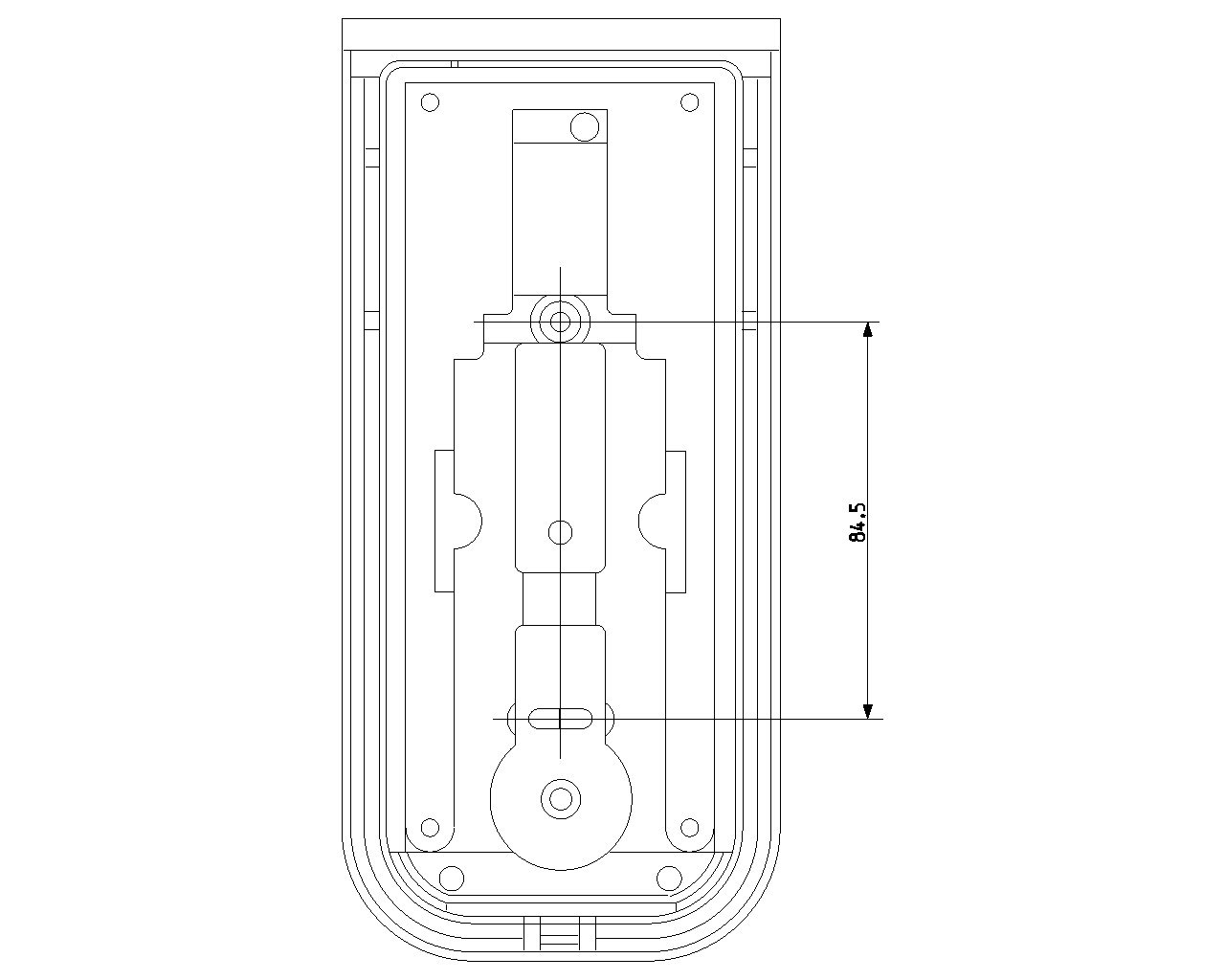

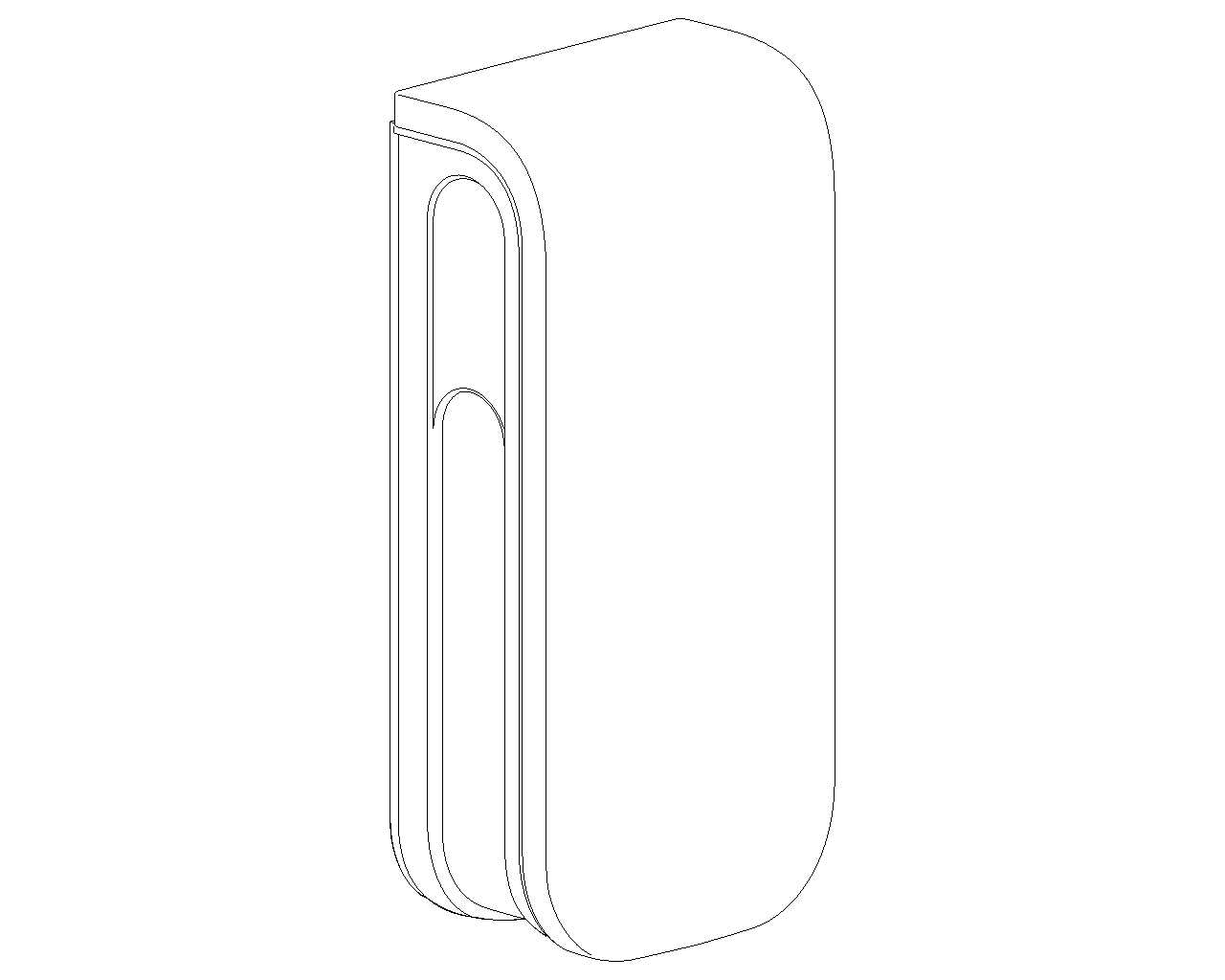

Drawings

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Mounting method
Surface mounting

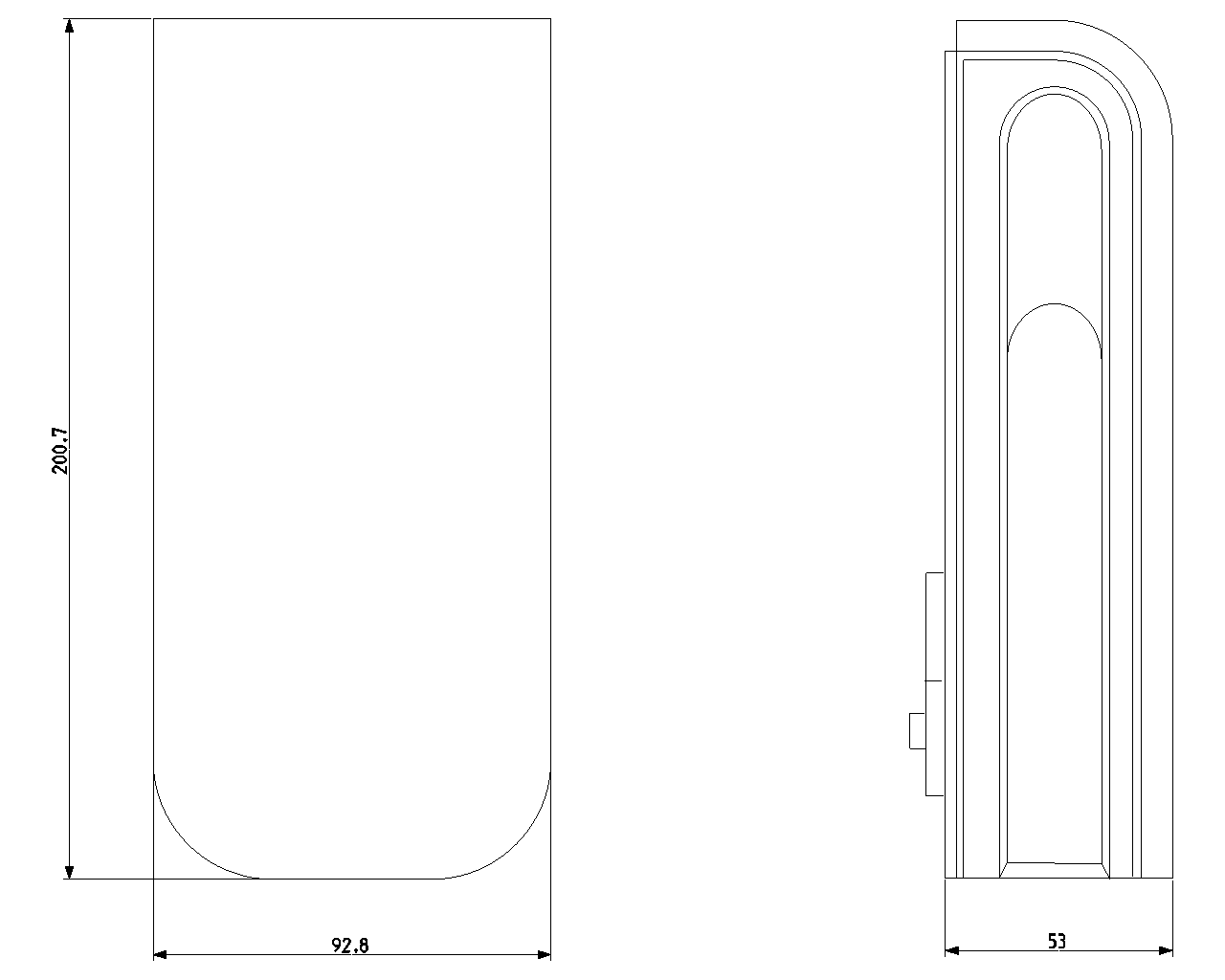

Height
200,70 mm

Width
92,80 mm

Depth
53,00 mm

Colour
White

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

8007352767379

22.5x8x10.4 [cm]

500 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
