By-alarm Plus DT IP55 volum.surf.detect.Code 01742

Download as PDFPDF

01742: Safety / By-alarm Plus / Surface mounting components / Non-modular components

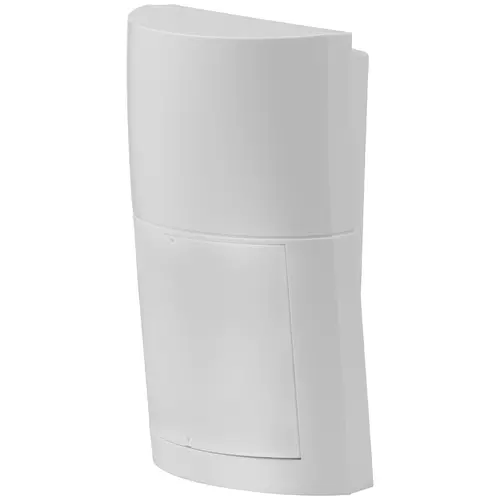

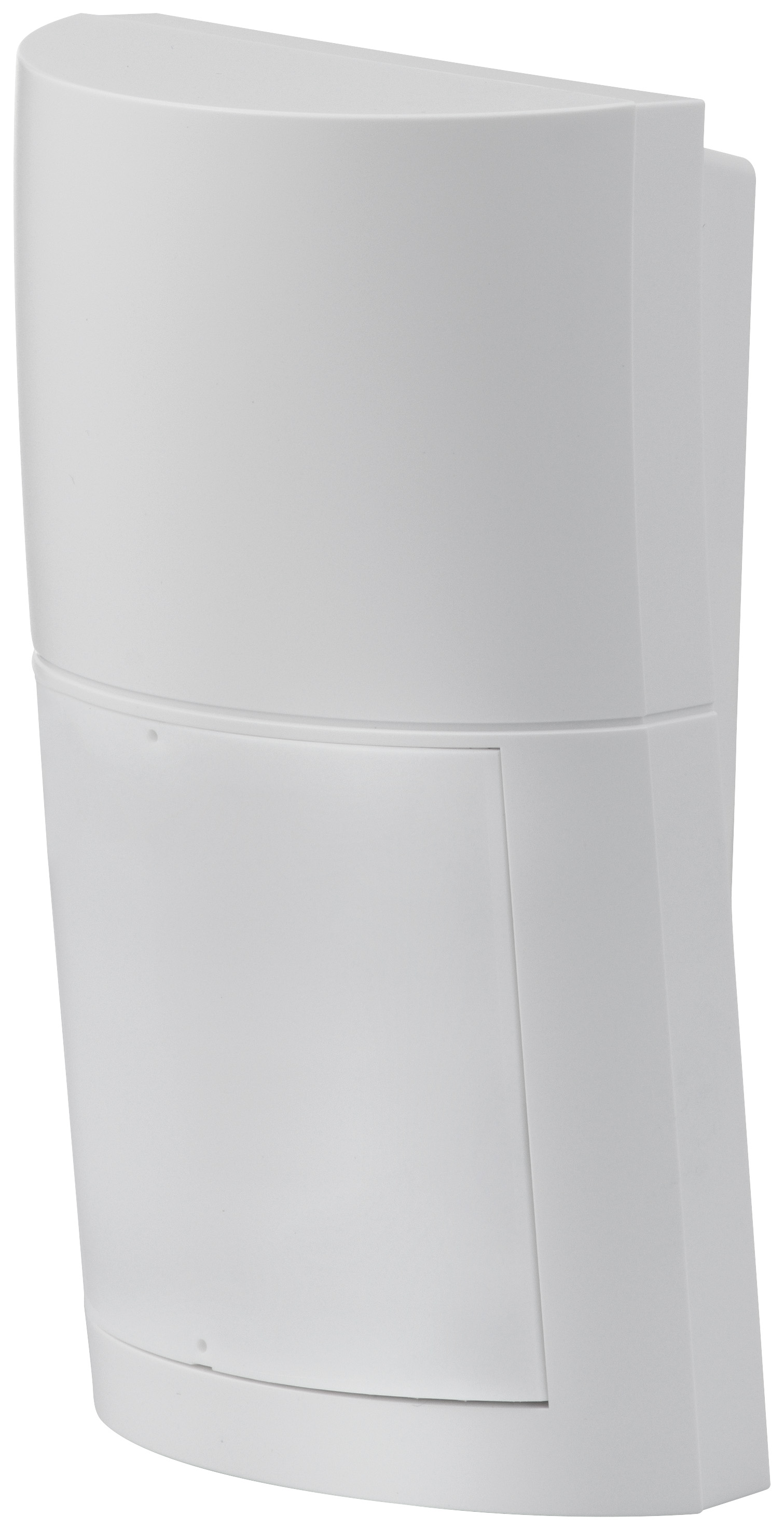

By-alarm Plus DT IP55 volum.surf.detect.: By-alarm Plus passive infrared and microwave dual technology detector, with anti-blinding, 120° coverage up to 12m, high (2.2-2.7 metres) or low (0.8-1.2 metres) mounting, can be set for PET immunity, IP55, 1 NO and NC 28 VDC 0.1 A relay output, 9.5-16 VDC power supply with 30 mA 12V, surface mounting, for outdoor use
Product Status: 3 - Active

You may also be interested in

01741 - By-alarm Plus IR 12+12m IP55 surf.det.

01743 - By-alarm Plus IR IP65 60m surf.barrier

01723 - By-alarm Plus DT IP54 curtain surf.det.

01740 - By-alarm Plus IR curtain PET imm.detect.

Sheets, Manuals, Documentation

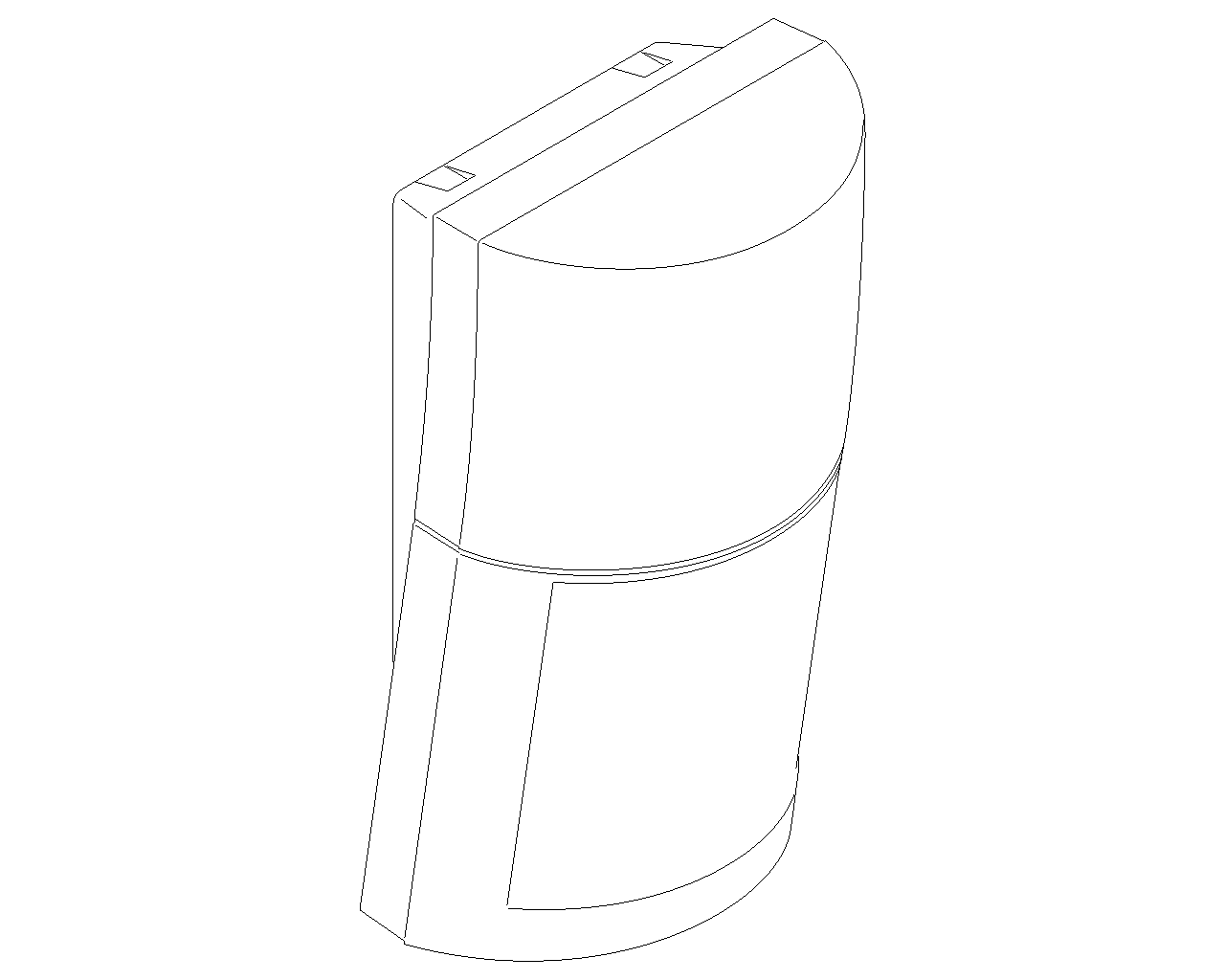

Drawings

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Type of messaging
Infrared/microwave (dual)

Mounting method
Surface mounting

Operating current
30,00 mA

Monitoring radius
120 m

Cover monitoring
Yes

Characteristic
Distance

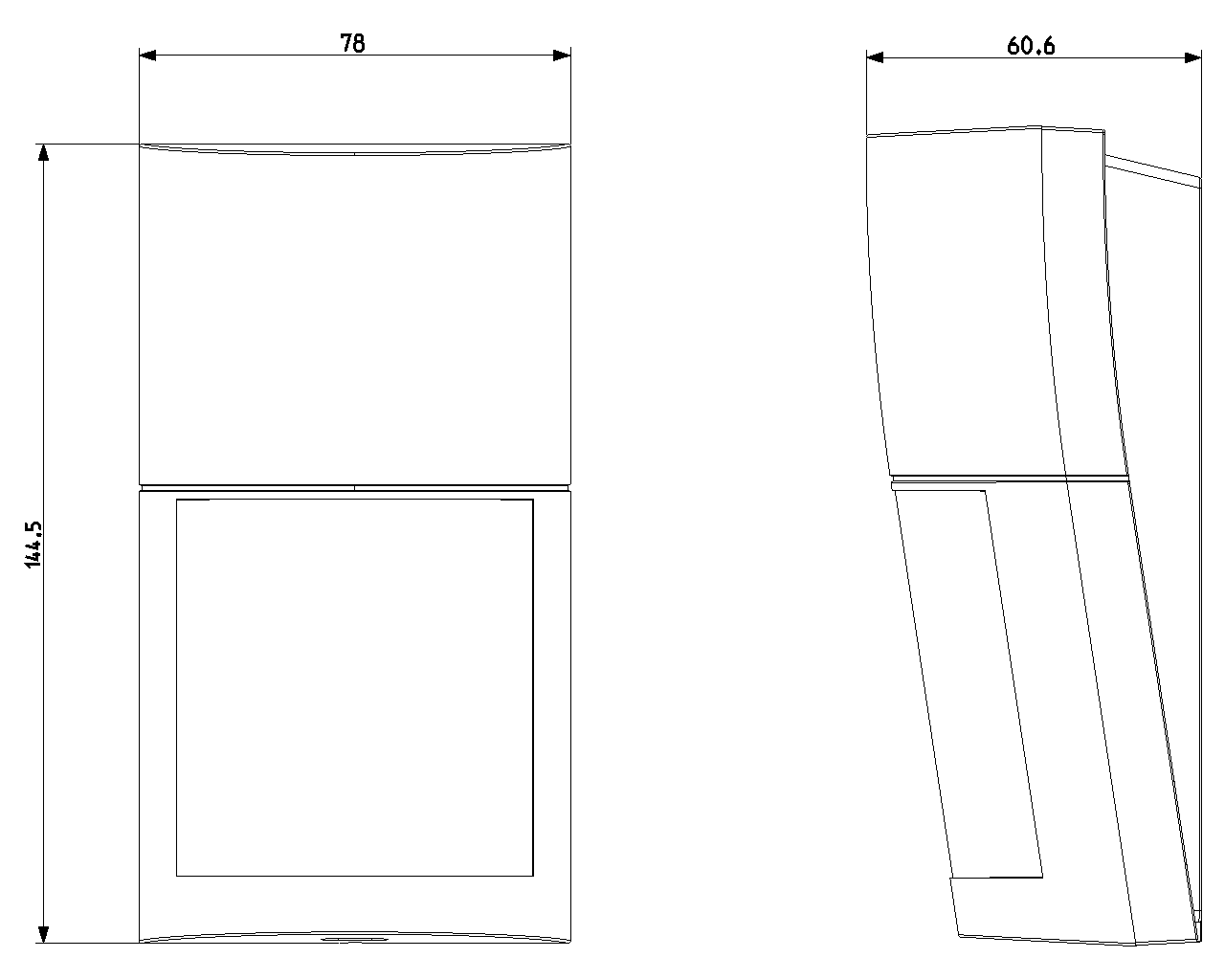

Height
144,50 mm

Width
78,00 mm

Depth
60,60 mm

Radio system
No

Colour
White

VdS class
None

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

8007352767386

15.7x8.1x10 [cm]

245 [g]
