LED driver 230V 50Hz 350/500/700mA - 01875

01875
Wiring devices / Traditional wiring devices / Shared components / Accessories

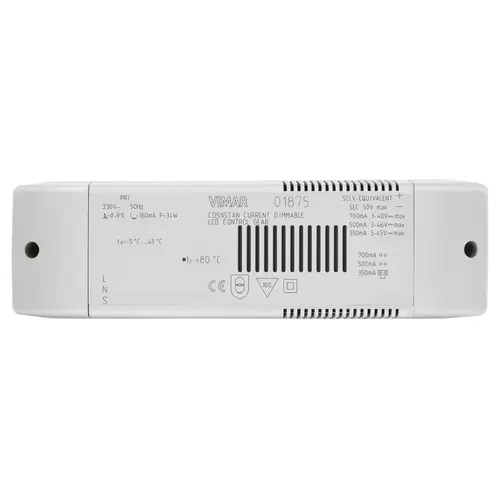

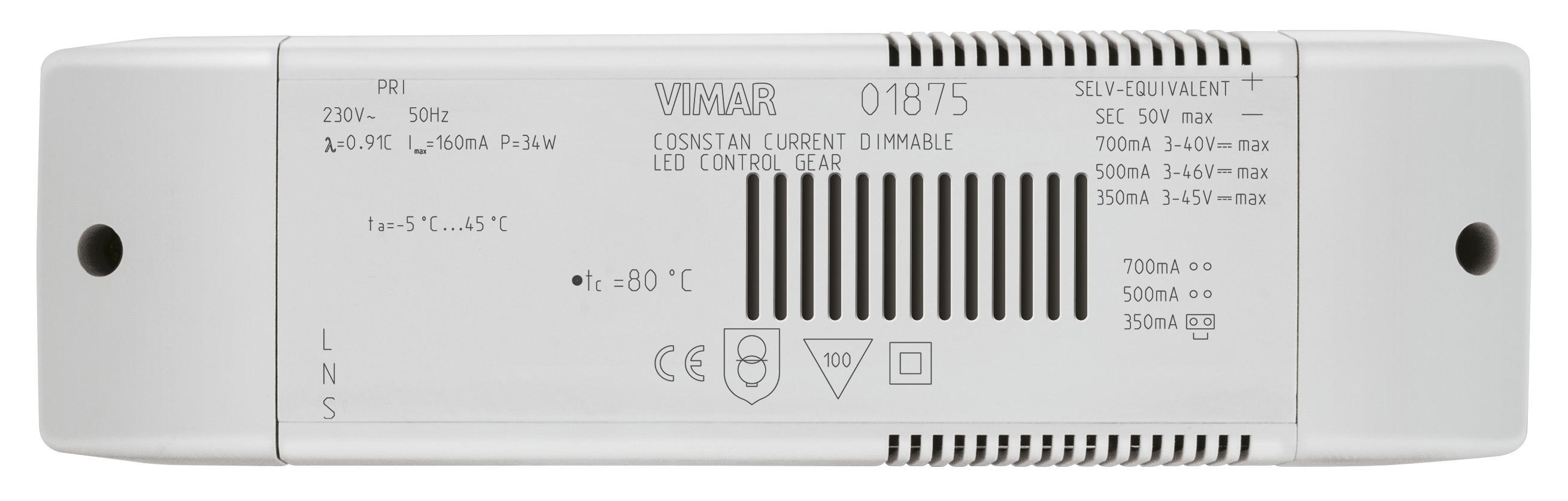

LED driver 230V 50Hz 350/500/700mA
Multivoltage power supply unit 230 V~ 50 Hz for LED strip modules 350/500/700 mA, dimmable with MASTER dimmers (not for 230 V~ LED lamps and 0-10 V and 1-10 V ballast)

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1353 kb)
• Installation diagrams (2458 kb)

Video

• New universal dimmers

---

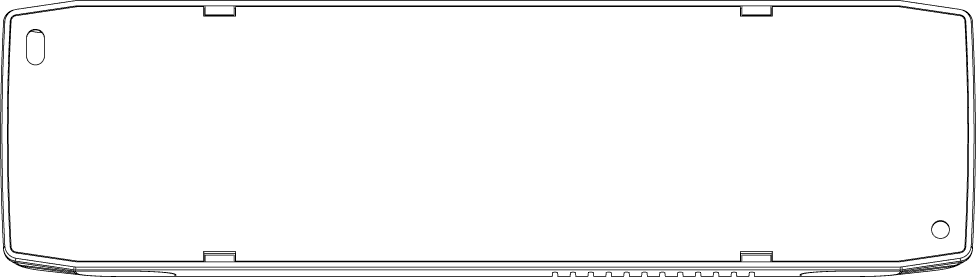

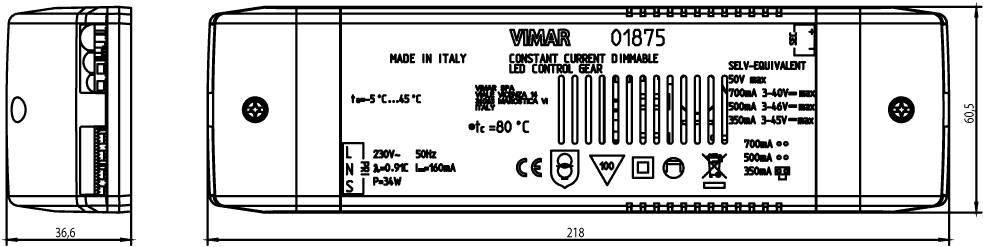

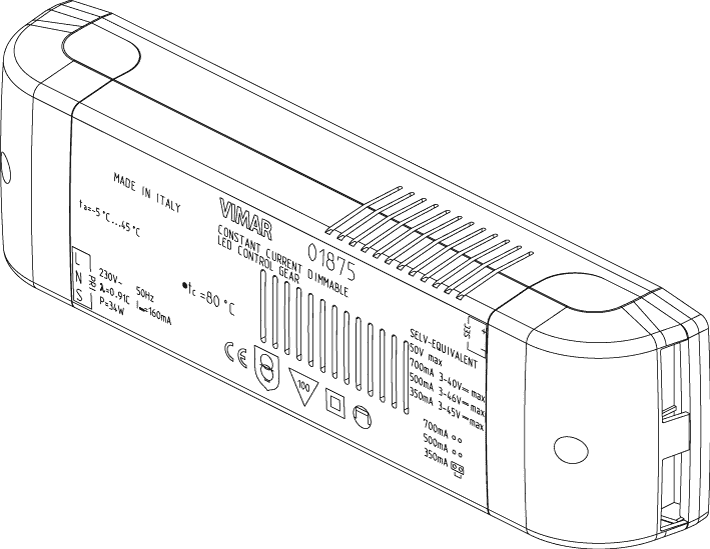

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Light control

Class
LED driver

Suitable for outdoor use
No

Housing
Plastic housing

Suitable for constant current
Yes

Suitable for constant voltage
No

Output voltage
3 - 50 V

Output current
0 - 700 mA

Suitable for DC-voltage (primary side)
No

Output power
27,00 - 27,01 W

Degree of protection (IP)
IP20

Protection class
II

Length
36,60 mm

Width
218,00 mm

Height
60,50 mm

Diameter
0 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352458482

1 NR

26.9x11.6x4.9 [cm]

333.9 [g]
