Lamphld - 4,5A 24V halogen lampCode 02370

02370

Portable installation / Lighting components / Lampholders / Halogen lampholders

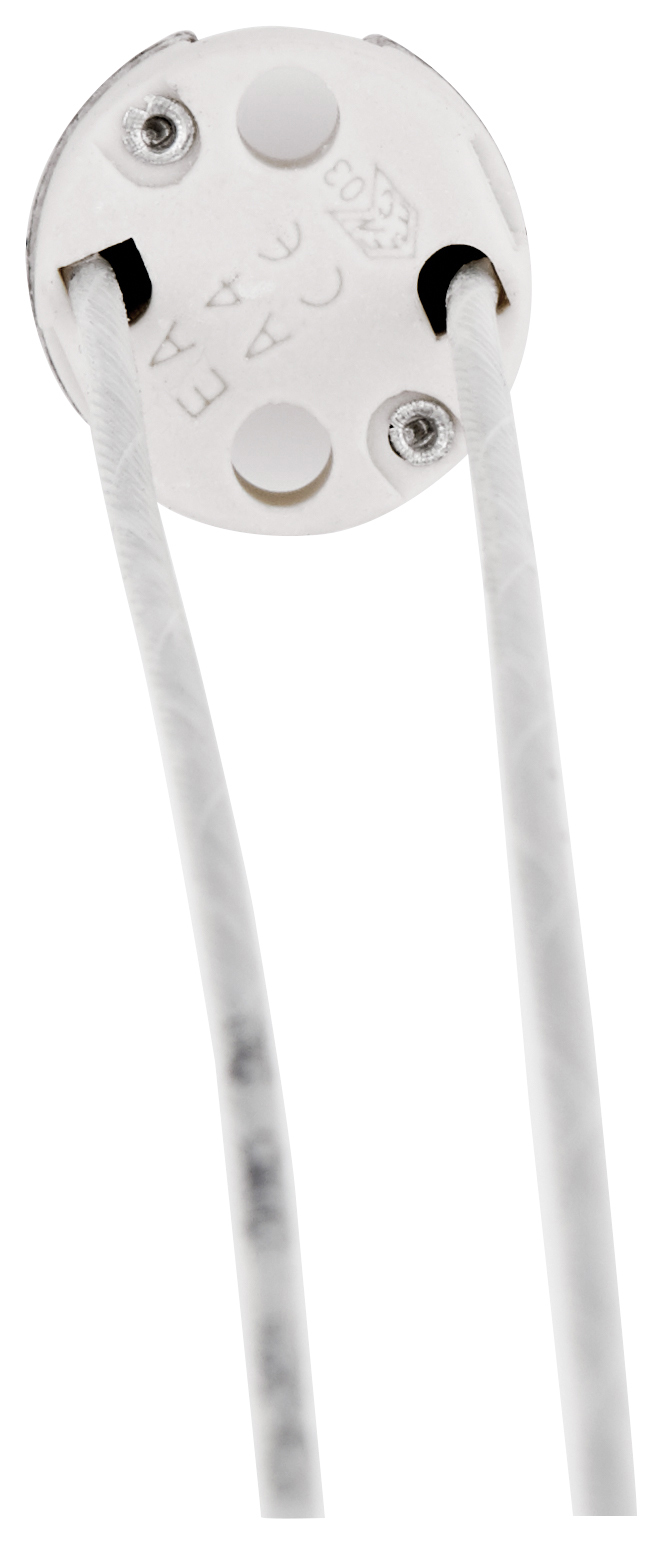

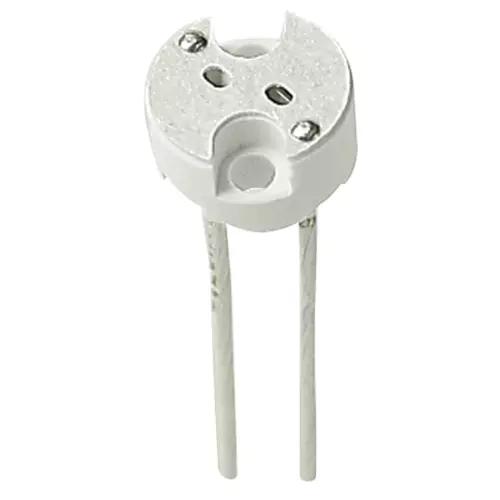

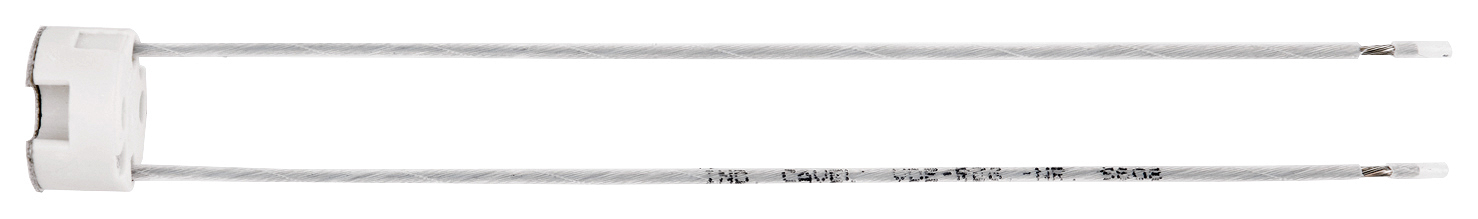

Lamphld - 4,5A 24V halogen lamp

4,5 A 24 V lampholder for halogen lamps with cap G4 - G5.3 - G6.35 - GY6.35 - 140 mm PTFE teflon cable 0,75 mm2. Rated operating temperature: the lampholder 300 °C, the cable 180 °C. ø 3,3 mm fixing holes, 11,5 mm fixing centres, ø 17 mm body

Product Status

3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

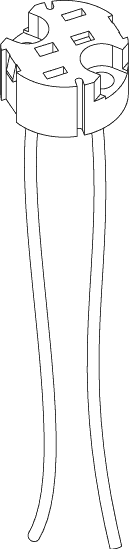

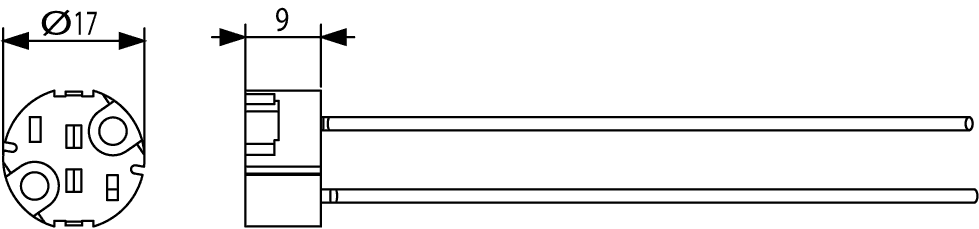

Drawings

PNG DXF

PNG DXF

Class group
Accessories for lighting

Class
Lamp holder

Model
Plug-in lamp holder

Material
Other

Colour
White

Lamp holder
GX5.3

With starter insertion
No

Type of fastening
Screw mounting

Nipple thread
3/8 inch

00. CE Marking - EU

17. ENEC 03 (IMQ)

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352037878

1 NR

1.7x0.9x1.7 [cm]

7.39 [g]

8007352011229

100 NR

19x14.3x9.5 [cm]

739.4 [g]

8007352643406

500 NR

30.5x26x22 [cm]

4,240 [g]
