LED emergency lamp Eikon/Arké/Plana - 02662

02662
Wiring devices / Traditional wiring devices / Shared components / Devices

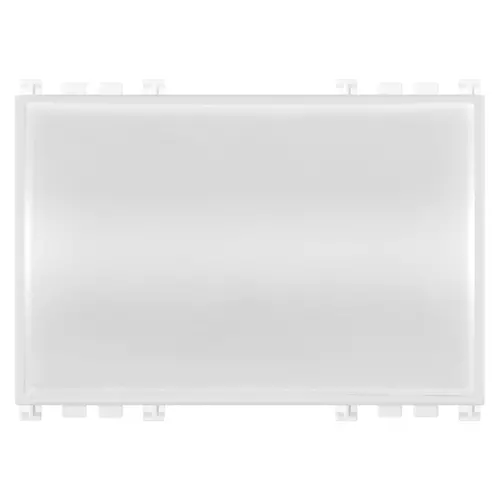

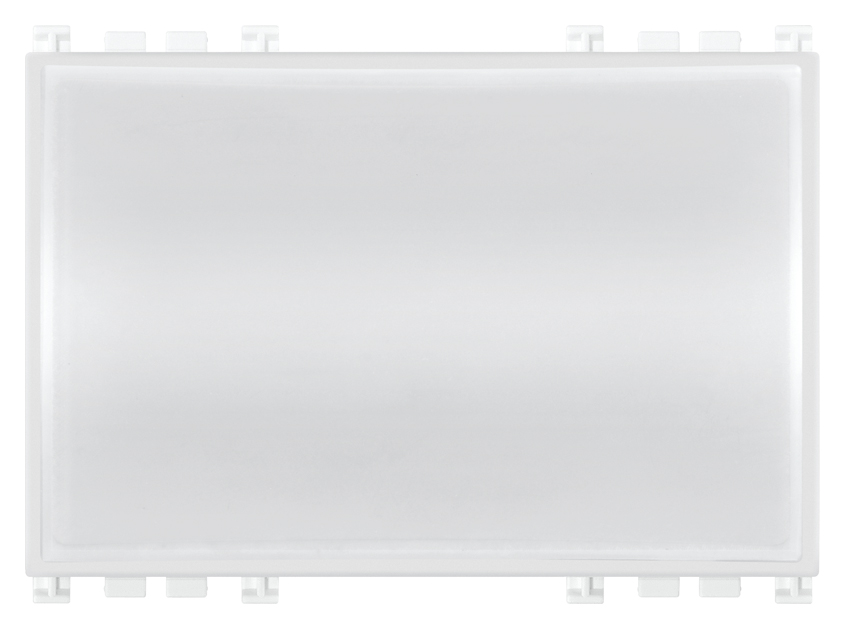

LED emergency lamp Eikon/Arké/Plana
LED lamp, supply voltage 230 V~ 50 Hz, from MASTER dimmer or ON/OFF device control, with automatic emergency device, 3 replaceable and rechargeable 1,2 V AAA batteries, 3 hours of operating range - 3 modules. To complete with Eikon, Arké or Plana cover plates

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (2112 kb)
• Installation diagrams (2458 kb)

---

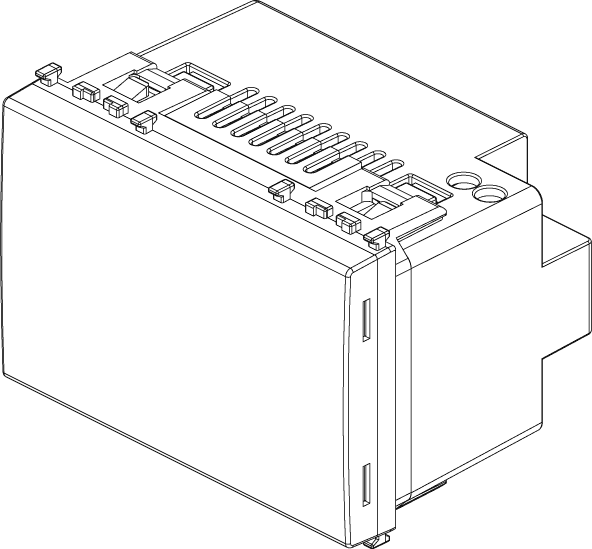

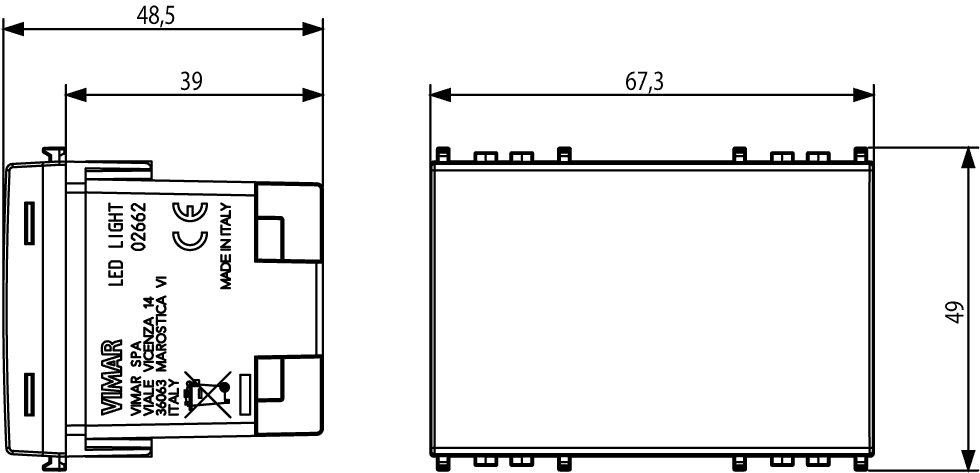

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Luminaires

Class
Emergency luminaire

Monitoring equipment
None

With remote switch connection
Yes

Power supply system
Peripheral (individual battery)

Battery technology
NiMH

Lamp type
LED not exchangeable

With light source
Yes

Housing colour
White

Voltage type
AC

Nominal voltage
230,00 - 230,01 V

Degree of protection (IP)
IP40

Protection class according to IEC 61140
II

Max. system power
2,50 W

Rated luminous flux according to IEC 62722-2-1
50

Width
67,30 mm

Height/depth
48,50 mm

Length
49,00 mm

Built-in width
67,30 mm

Built-in height/depth
39,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352468733

1 NR

11.2x9.6x9.8 [cm]

172.9 [g]
