RGB emergency lamp Eikon/Arké/Plana - 02663.120

02663.120
Wiring devices / Traditional wiring devices / Shared components / Devices

RGB emergency lamp Eikon/Arké/Plana
RGB LED lamp, supply voltage 120 V~ 50 Hz, from RGD and FADING-SHOW dimmers control, with automatic emergency device, 3 replaceable and rechargeable 1,2 V AAA batteries, 3 hours of operating range - 3 modules. To complete with Eikon, Arké or Plana cover plates

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49400507B0 (2068 kb)
• SI - Schemi Installativi ZIS_120 V Insta (2052 kb)

---

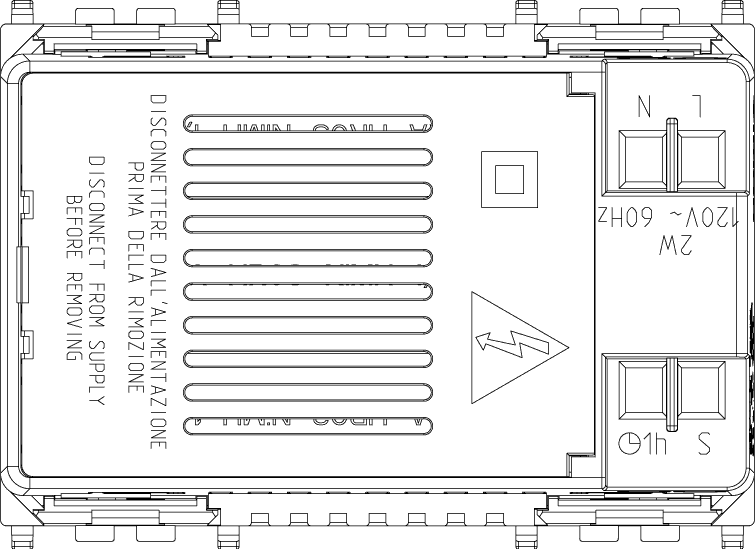

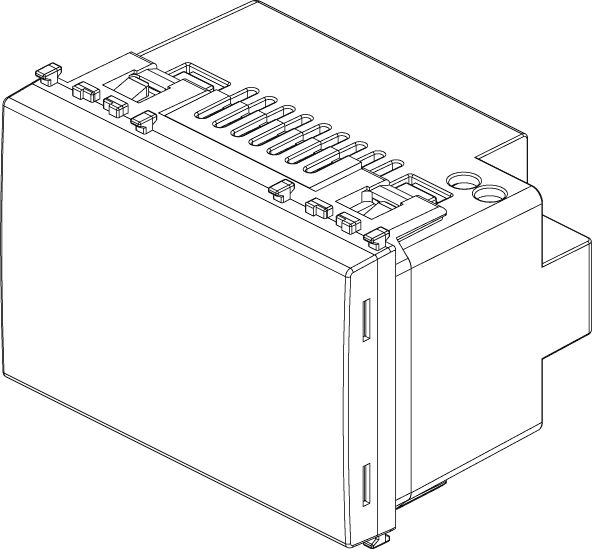

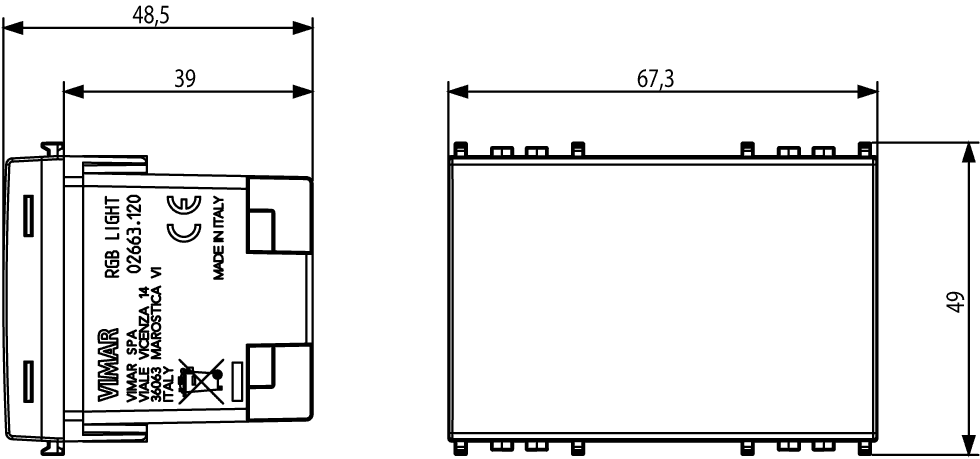

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Luminaires

Class
Emergency luminaire

Monitoring equipment
None

With remote switch connection
Yes

Power supply system
Peripheral (individual battery)

Battery quality
NiMH

Lamp type
LED not exchangeable

With light source
Yes

Housing colour
White

Voltage type
AC

Nominal voltage
120,00 - 120,01 V

Degree of protection (IP)
IP40

Protection class
II

Max. system power
3,00 W

Width
67,30 mm

Height/depth
48,50 mm

Length
49,00 mm

Built-in width
67,30 mm

Built-in height/depth
39,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352487826

1 NR

11.2x9.6x9.8 [cm]

171.4 [g]
