Surface battery-thermostat white - 02900.1

Pdf
Vimar - 02900.1 - Surface battery-thermostat white
Vimar - 02900.1 - Surface battery-thermostat white

02900.1
Smart systems&products / Smart climate control / Surface mounting components / Non-modular components

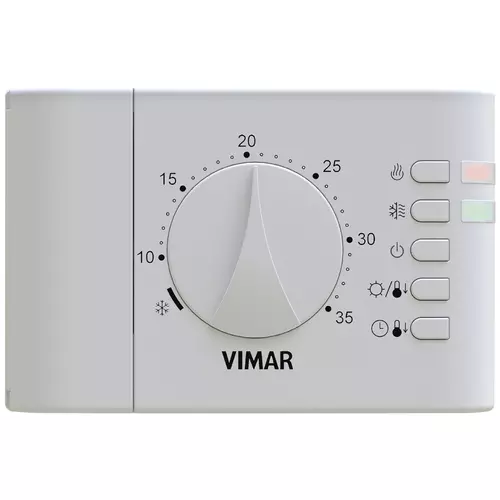

Surface battery-thermostat white
Electronic thermostat for ON/OFF ambient temperature control (heating and air-conditioning), class I temperature control device (contribution 1%), change-over relay output 5(2) A 240 V~, AA LR6 1,5 V battery-powered (not supplied), surface mounting, white

  • Suitable for all heating or cooling systems
  • Summer/winter operation with signalling LED
  • Front door for easy battery access
  • Maximum simplicity thanks to the large knob
  • ˝Night˝ function saves energy at night

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

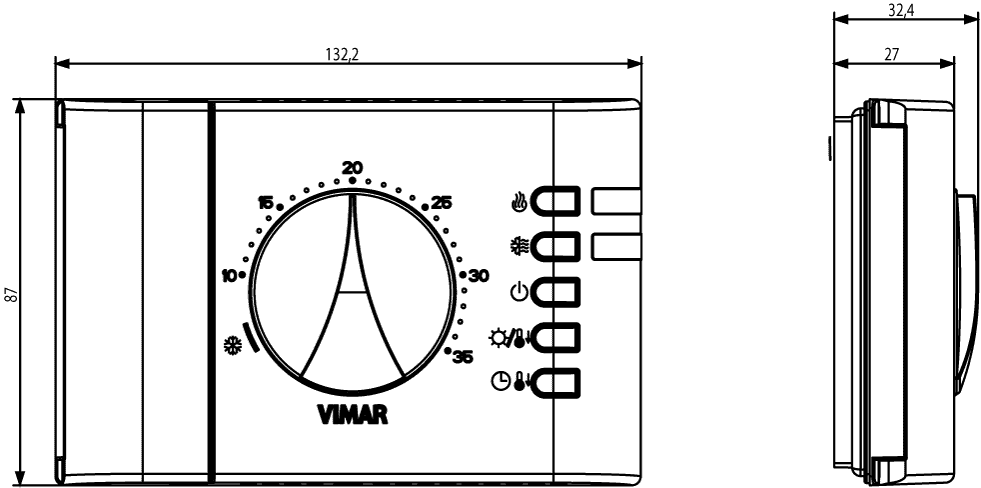

view encumbered art. 02900.1
PNG DXF

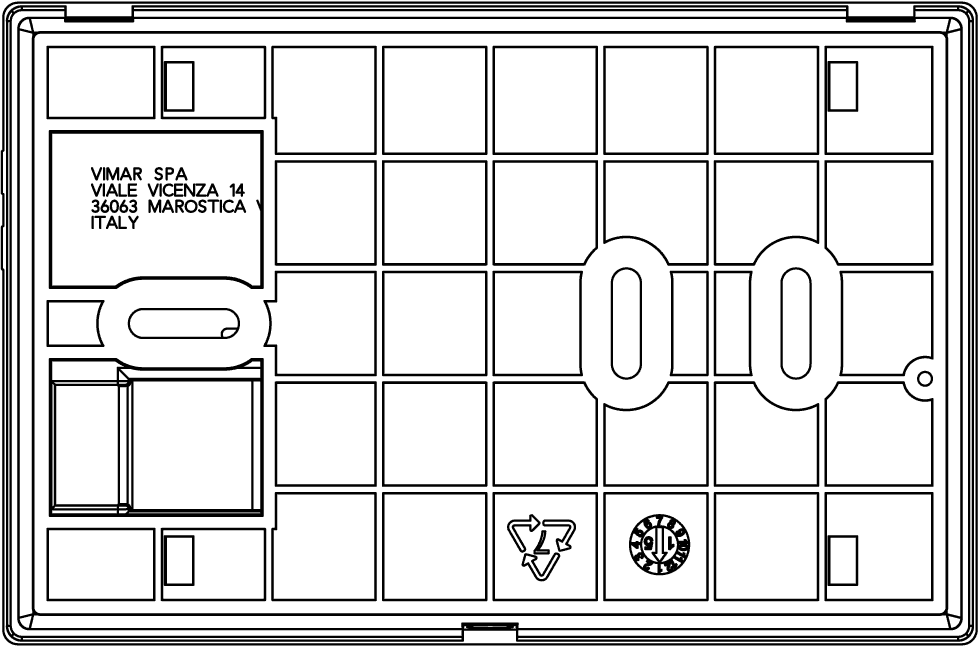

rear view art. 02900.1
PNG DXF
3D view art. 02900.1
PNG DXF
Class group
Stats, switches and controllers
Class
Room thermostat
Differential value
0,00 - 1,00 k
Temperature readable
No
Mounting method
Surface mounted
Max. contact voltage
230 V
Degree of protection (IP)
IP20
Colour
White

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352583214
1 NR
15.8x10x5.1 [cm]
215 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
