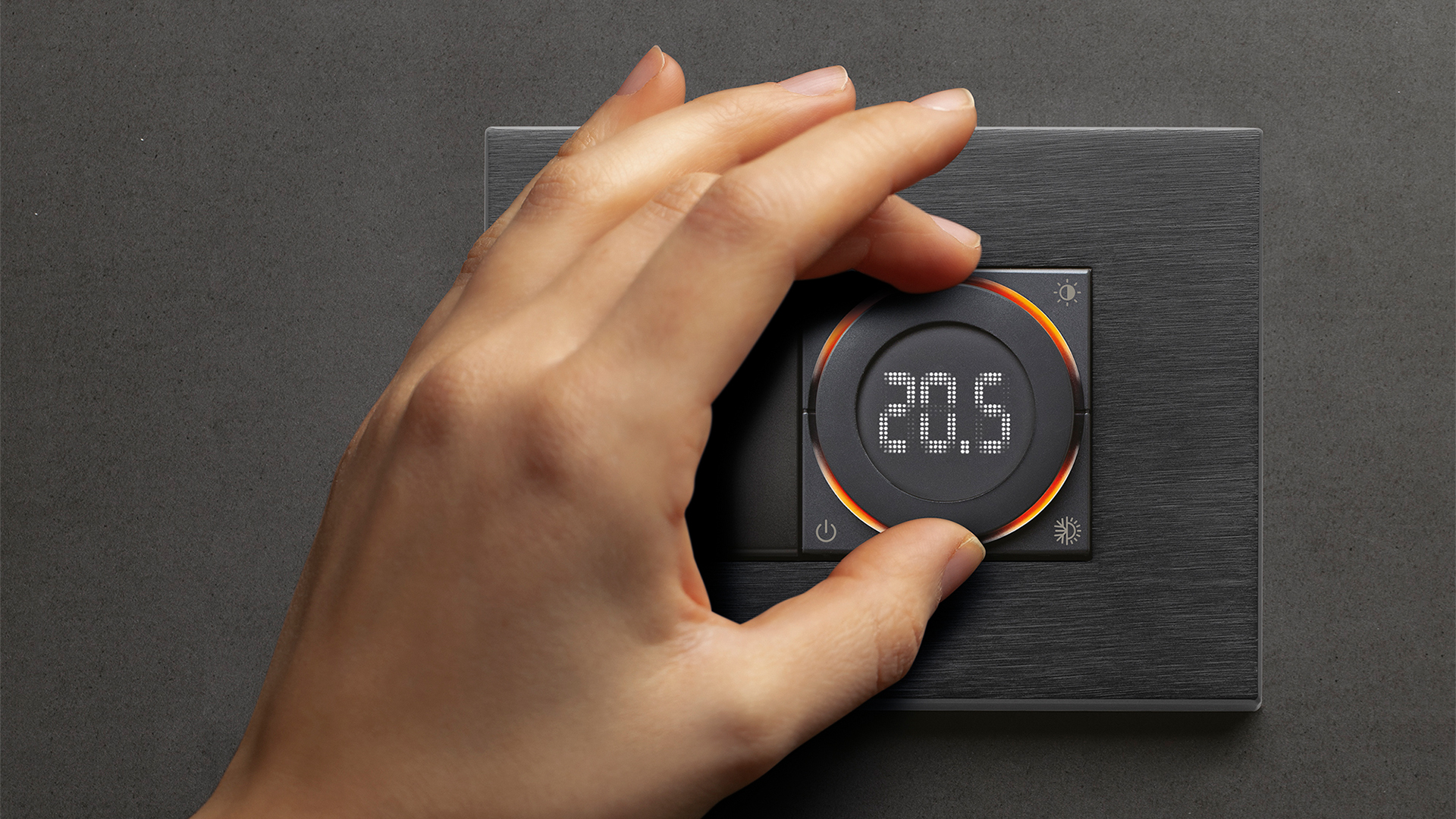

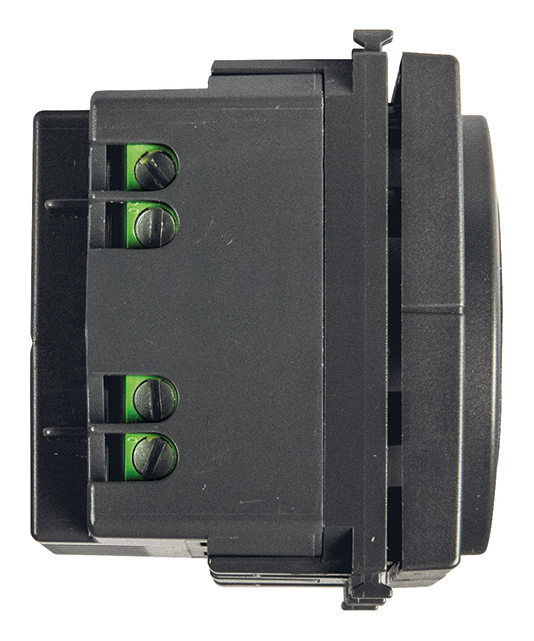

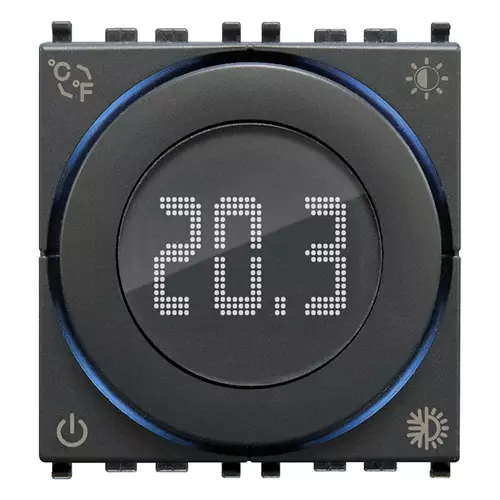

Dial thermostat 100-240V 2M greyCode 02970

Download as PDFPDF

02970: Wiring devices / Traditional wiring devices / Shared components / Devices

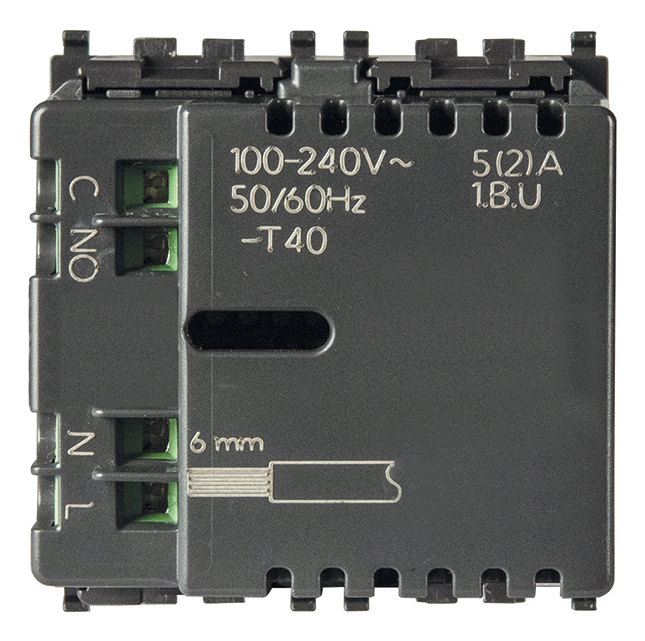

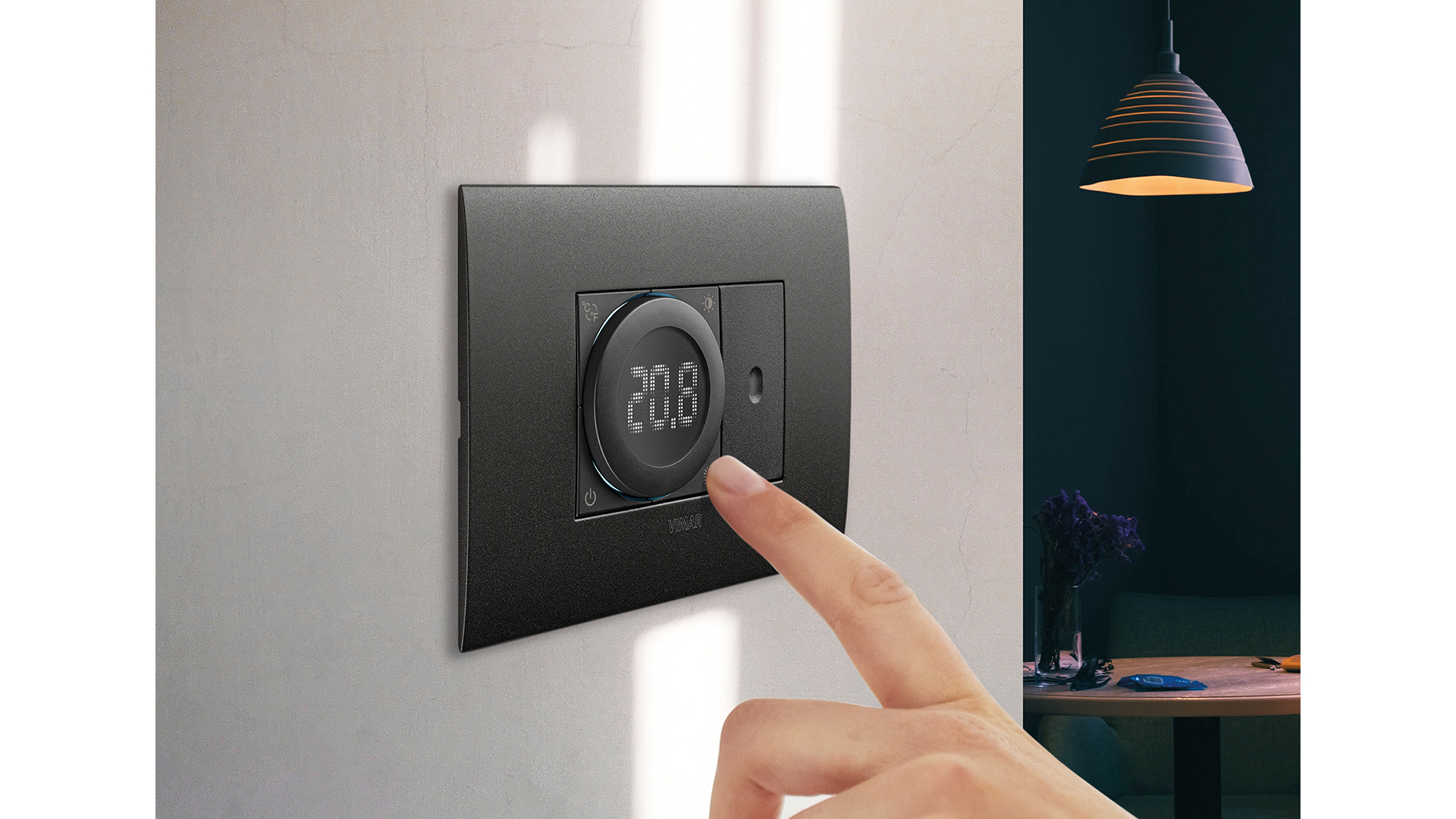

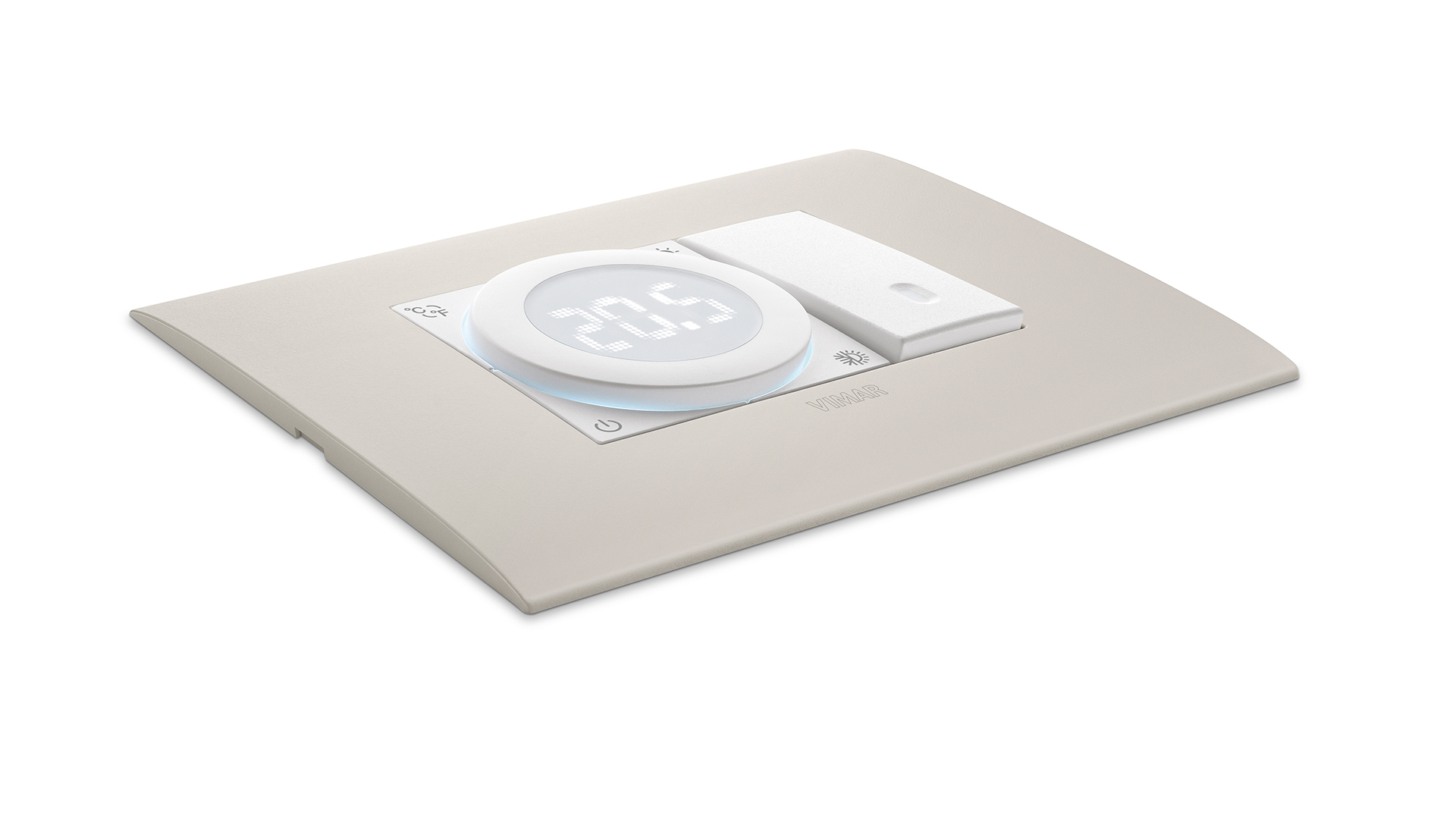

Dial thermostat 100-240V 2M grey: Dial thermostat with relay output 5(2) A 240 V~, heating and air conditioning in ON/OFF mode, class I temperature control device (contribution 1%), white LED backlighting with brightness control, 100-240 V 50/60 Hz power supply, grey - 2 modules. To be completed with Eikon, Arké and Plana cover plates, for Idea with dedicated mounting frame 16723
Product Status: 3 - Active

Sheets, Manuals, Documentation

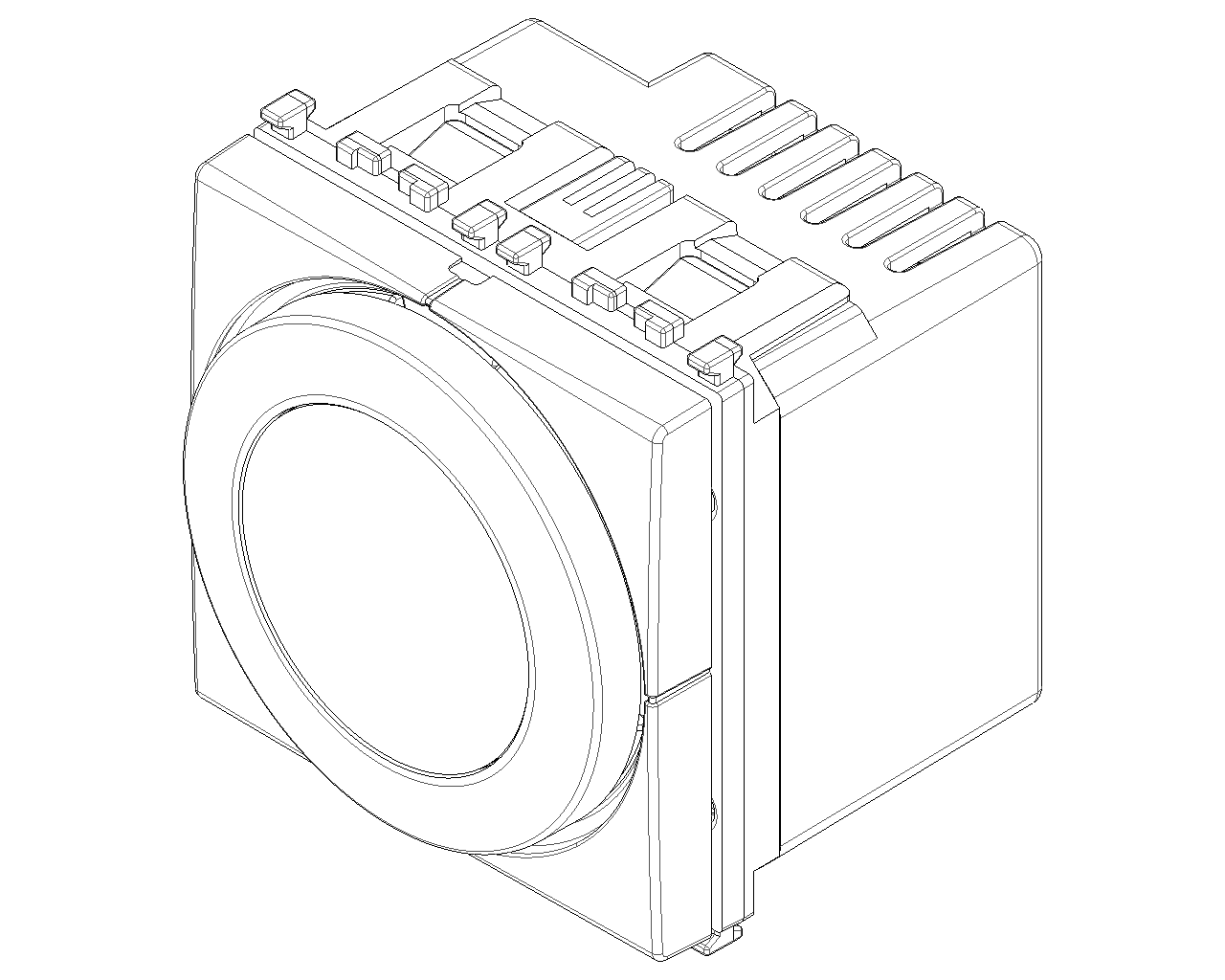

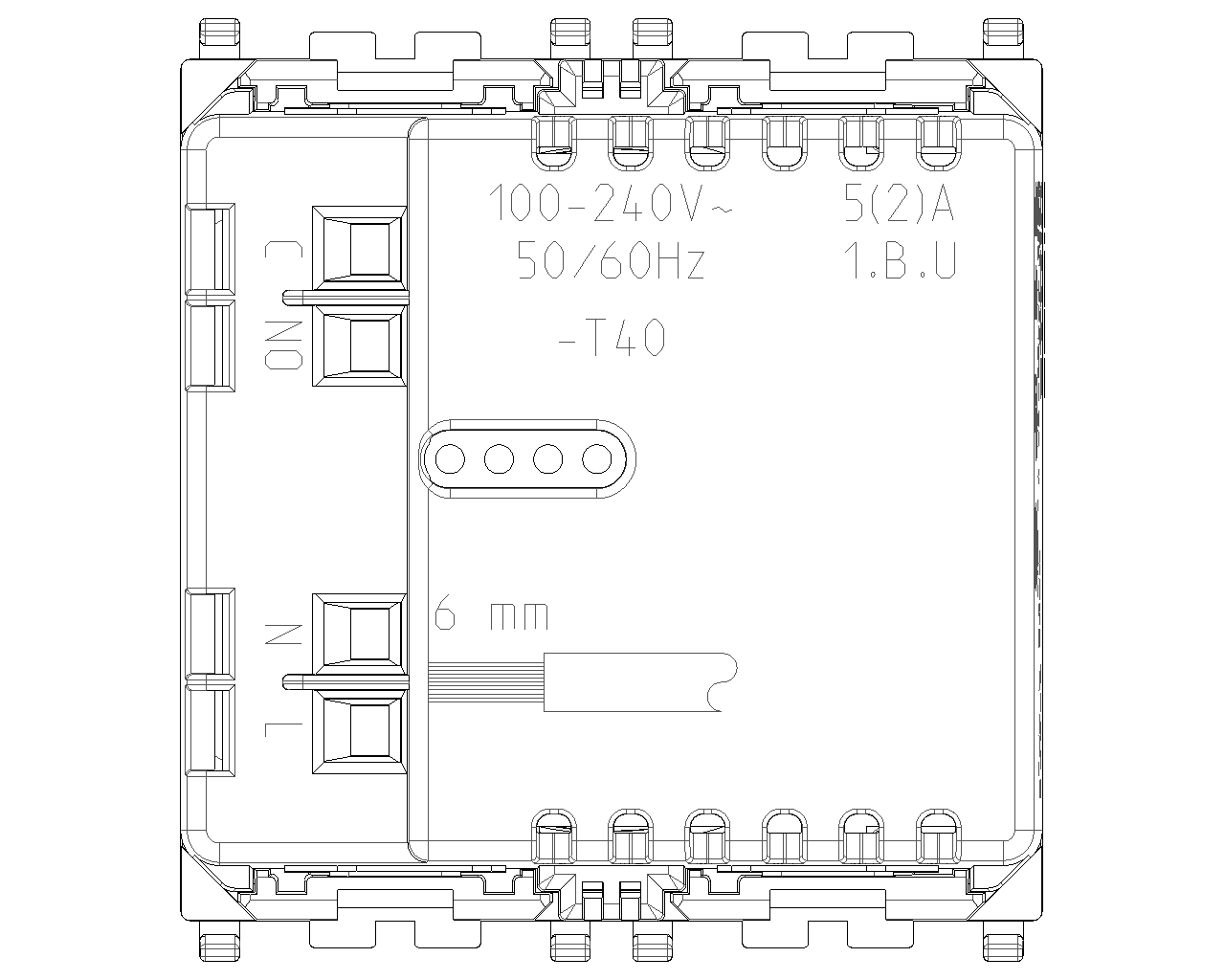

Drawings

Class group
Stats, switches and controllers

Class
Room thermostat

Model
On/Off

Type of power supply
230 V AC

Connection
2-wire

With receiver
No

External sensor
Yes

Thermal feedback
Parallel

Control characteristic
Other

Suitable for heating
Yes

Number of heater outputs
1

Number of cooler outputs
1

Adjustable differential
Yes

Temperature readable
Yes

With sound indicator
No

Sensor/feeler type
Resistance sensor

Mounting method
Flush-mounted

Number of modules (module system)
2

With display
Yes

Operation
Turn

With tap water circuit
No

Max. contact voltage
230 V

Max. contact load
5 A

Degree of protection (IP)
IP20

Explosion-proof
Yes

Colour
Grey

RAL-number
7024

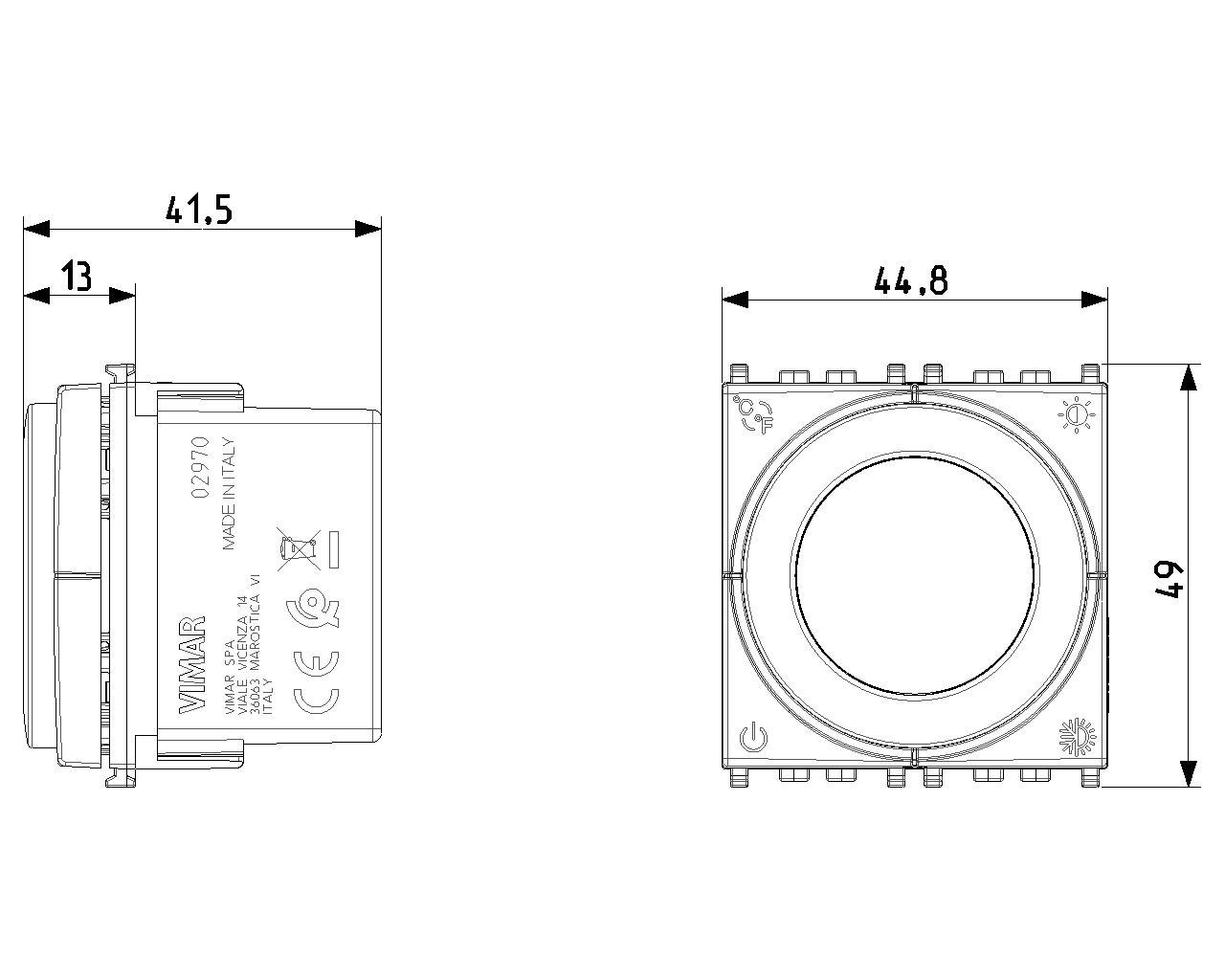

Height
49,00 mm

Width
44,80 mm

Depth
41,50 mm

Diameter
0,00 mm

Class of the temperature control
I

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

8007352658943

6x5.3x5.2 [cm]

67.4 [g]

8007352746343

60 NR

37.5x30x13.5 [cm]

4,384 [g]
