Vimar - 02970.B - Dial thermostat 100-240V 2M white

02970.B
Wiring devices / Traditional wiring devices / Shared components / Devices

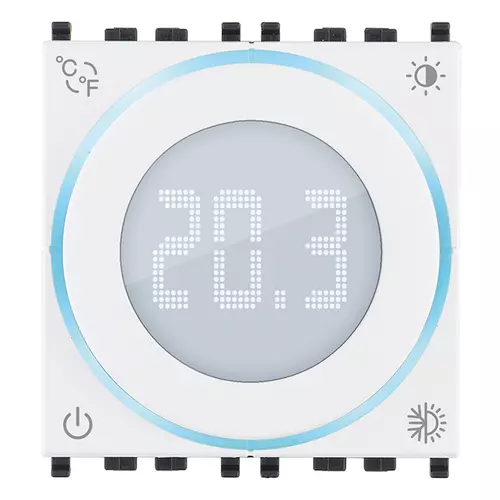

Dial thermostat 100-240V 2M white

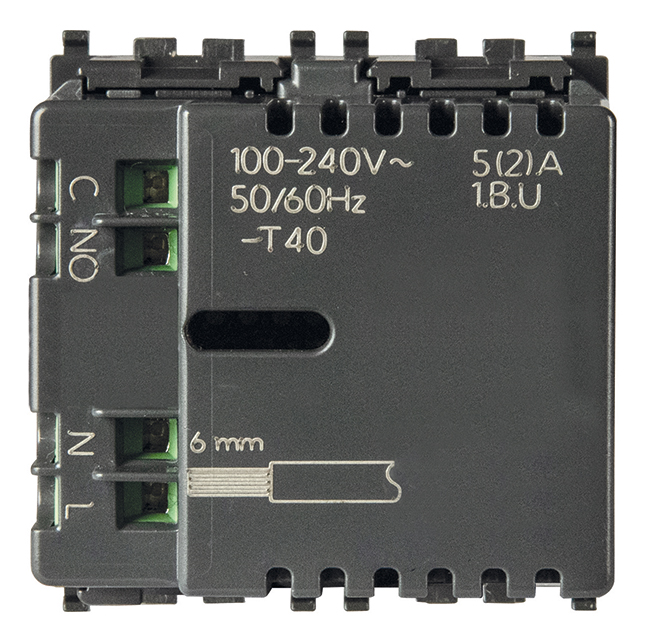

Dial thermostat with relay output 5(2) A 240 V~, heating and air conditioning in ON/OFF mode, class I temperature control device (contribution 1%), white LED backlighting with brightness control, 100-240 V 50/60 Hz power supply, white - 2 modules. To be completed with Eikon, Arké and Plana cover plates, for Idea with dedicated mounting frame 16723

  • Simple programming
  • Suitable for all heating or cooling systems
  • Maximum simplicity thanks to the large knob
  • Hotkeys are designed for quick interaction

Product Status
3 - Active

Class group
Stats, switches and controllers
Class
Room thermostat
Model
On/Off
Type of power supply
230 V AC
Connection
2-wire
With receiver
No
External sensor
Yes
Thermal feedback
Parallel
Control characteristic
Other
Suitable for heating
Yes
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0,00 - 1,00 k
Adjustable differential
Yes
Temperature readable
Yes
With sound indicator
No
Sensor/feeler type
Resistance sensor
Mounting method
Flush-mounted
Number of modules (module system)
2
With display
Yes
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
0 A
Degree of protection (IP)
IP20
Explosion-proof
Yes
Colour
White
RAL-number
1013
Height
49,00 mm
Width
44,80 mm
Depth
41,50 mm
Diameter
0 mm
Class of the temperature control
I

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352658967
1 NR
5.7x5.3x7.7 [cm]
77 [g]
Barcode Qty 60 NR
8007352746350
60 NR
37.5x30x13.5 [cm]
4,936.8 [g]
Barcode Qty 70 NR
8007352658974
70 NR
39.5x30x17 [cm]
5,760 [g]
