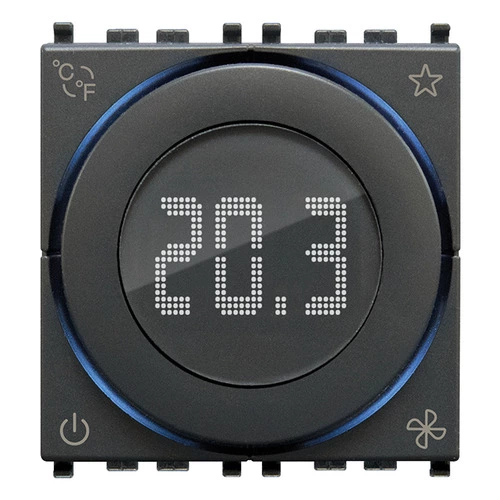

Home autom.dial thermostat 2M greyCode 02971

Download as PDFPDF

02971: Smart systems&products / By-me Plus / Shared components / Devices
Home autom.dial thermostat 2M grey: Home automation rotary dial thermostat for room temperature control (heating and air conditioning), 2- and 4-pipe system management, 3-speed and proportional fan coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with actuator with proportional analogue outputs 01466.1 to realize a class V modulating room thermostat (contribution 3%), 1 input for electronic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, white LED backlighting, grey - 2 modules. To be completed with Eikon, Arké and Plana cover plates, for Idea with dedicated mounting frame 16723
Product Status: 3 - Active

You may also be interested in

Sheets, Manuals, Documentation

Drawings

Class group
Stats, switches and controllers

Class
Room thermostat

Model
Other

Connection
2-wire

With receiver
No

External sensor
Yes

Thermal feedback
Parallel

Control characteristic
PID

Suitable for heating
Yes

Number of heater outputs
1

Number of cooler outputs
1

Adjustable differential
Yes

Temperature readable
Yes

With sound indicator
No

Sensor/feeler type
Resistance sensor

Mounting method
Flush-mounted

Number of modules (module system)
2

With display
Yes

Operation
Turn

With tap water circuit
No

Max. contact voltage
29 V

Max. contact load
0 A

Degree of protection (IP)
IP20

Explosion-proof
Yes

Colour
Grey

RAL-number
7024

Height
49,00 mm

Width
44,80 mm

Depth
41,50 mm

Diameter
0,00 mm

Class of the temperature control
V

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

8007352668454

5.7x5.3x7.7 [cm]

75 [g]

8007352746381

60 NR

37.5x30x13.5 [cm]

4,816.8 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
