Domotic temperature probe greyCode 20538
- 20538
- Smart systems&products / By-me Plus / EIKON / Devices

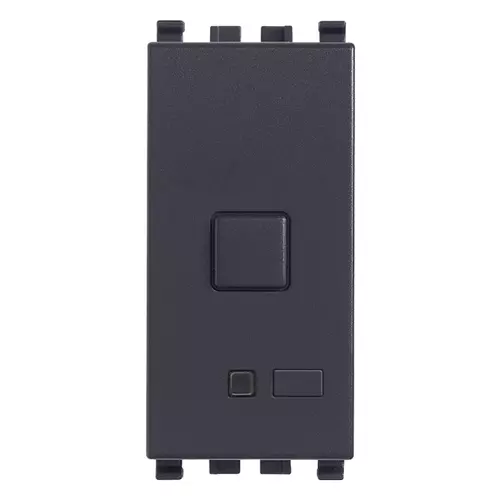

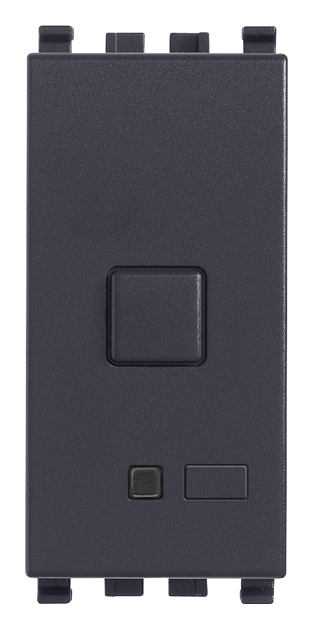

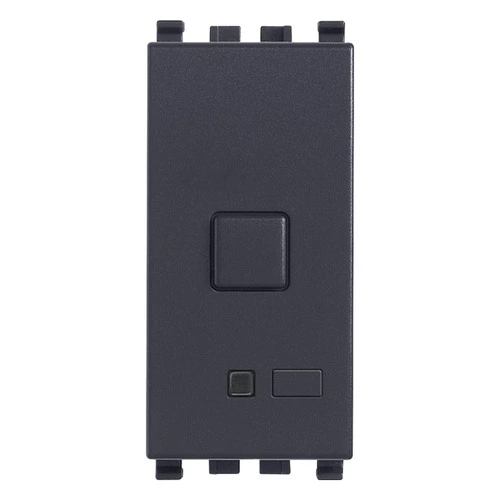

- Domotic temperature probe grey
- Temperature probe for ambient temperature control (heating and air-conditioning), 2 and 4 pipe system management, 3-speed and proportional fan-coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for flush-mounting or wired NTC temperature sensor, for By-me home automation system, can be interfaced with actuator with proportional analogue outputs 01466 to make a class V modulating room thermostat (contribution 3%), grey
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation

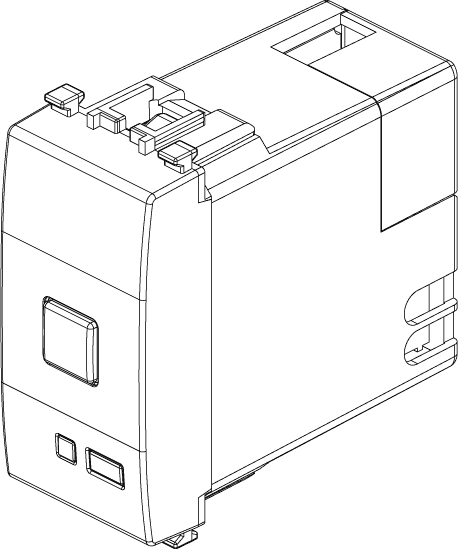

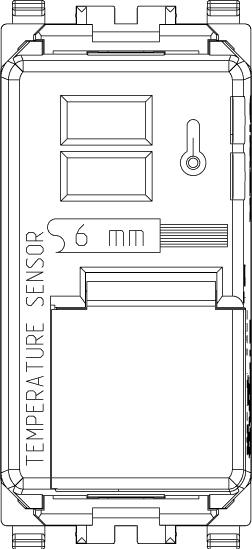

Drawings
Class group
Stats, switches and controllers
Stats, switches and controllers
Class
Room thermostat
Room thermostat
Model
Other
Other
With receiver
No
No
External sensor
Yes
Yes
Mounting method
Flush-mounted
Flush-mounted
With display
No
No
Colour
Grey
Grey
RAL-number
7024
7024
00. CE Marking - EU
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352512528
1 NR
6x2.8x5.3 [cm]
38 [g]
8007352512535
10 NR
14.4x13.1x6 [cm]
426.8 [g]
8007352657359
200 NR
50.5x20x28 [cm]
8,536 [g]
