4-fiber opt.mono 9/125 OS2 cable-500m - 03147

Pdf
03147

Net Safe / Optics / Cable

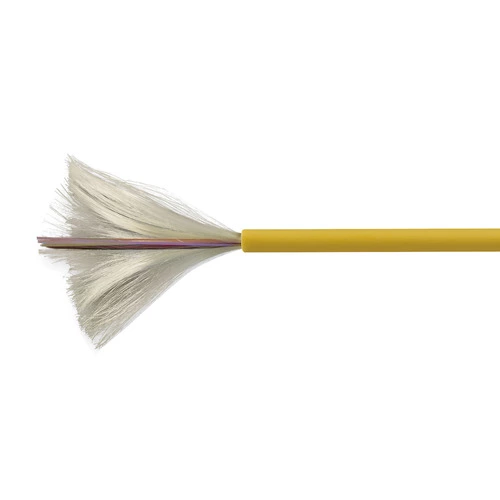

4-fiber opt.mono 9/125 OS2 cable-500m
9/125 µm OS2 (G.657.A2) monomodal loose cable, 4 fibers, with LSZH sheath - 500 m reel

Product Status
2 - Will be discontinued

Class group
Cables
Class
Fibre optic cable
Number of fibres
4
Type of tube
Loose tube
Number of fibres per tube
4
Fibre type
Single mode 9/125
With strain relief
No
Armouring
No
With rodent protection
No
Material outer sheath
Other
Colour outer sheath
Other
Longitudinal water blocking cable
No
Radial water blocking cable
No
Cable metal free
Yes
Halogen free (according to EN 60754-1/2)
Yes
Flame retardant
In accordance with EN 60332-1-2
Low smoke (according to EN 61034-2)
Yes
Oil resistant (according to EN 60811-404)
No
Resistant to chemicals
No
Minimum order quantity: 500 M

Barcode

Barcode Qty 1 M
8007352561595
1 M
0.1x0.1x0.1 [cm]
9.44 [g]
Barcode Qty 500 M
8007352561250
500 M
32x32x61 [cm]
4,718 [g]
