10 in organizer tray 12RJ45 Cat5e UTP 1u - 03303.1

03303.1
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

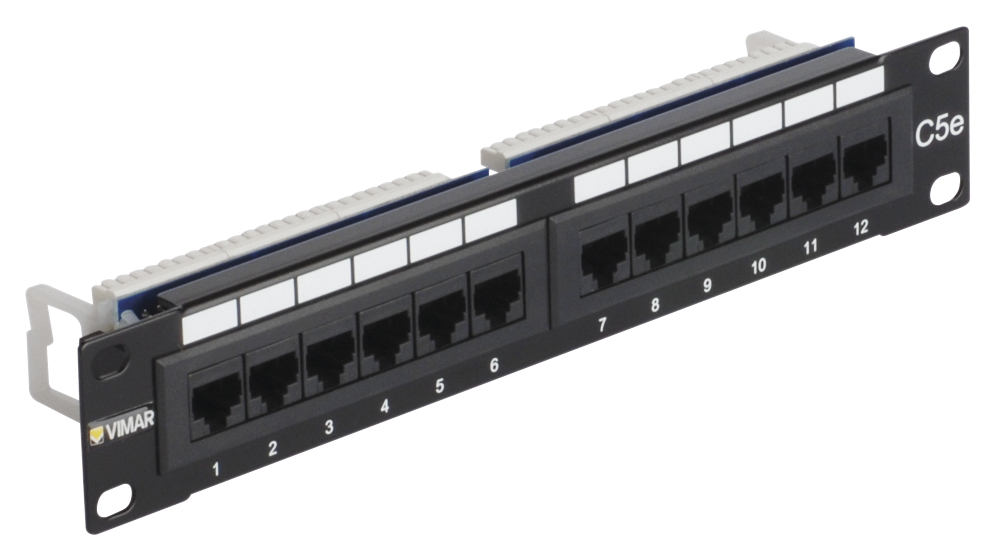

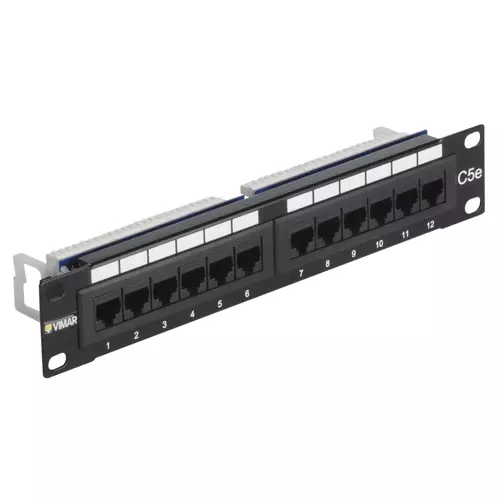

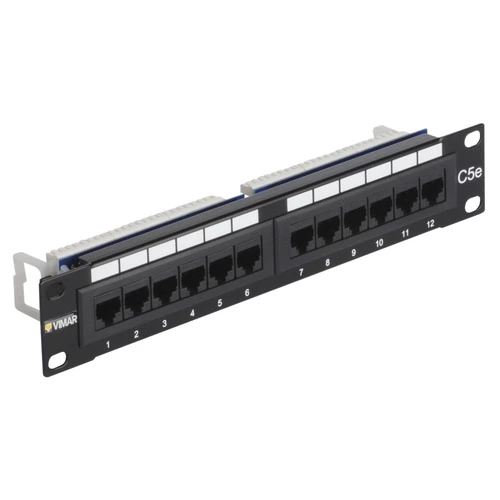

10 in organizer tray 12RJ45 Cat5e UTP 1u
10 in patch panel with 12 RJ45 Cat. 5e connectors, unshielded, T568A/B universal wiring, 8-contact, 110 type insulation-piercing terminals - 1 rack unit

Product Status
2 - Will be discontinued

You may also be interested in

03301.1A - 10 in organizer panel with cable out -1u

03301.1U - 10 in blank filler panel - 1u

03302.1U - 10 in organizer tray 1u

03303.3 - 10 in organizer tray 12 RJ45 Cat6 UTP 1u

03303.E - 10 in organizer tray - 8 empty ports 1u

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49400539A0 (673 kb)

---

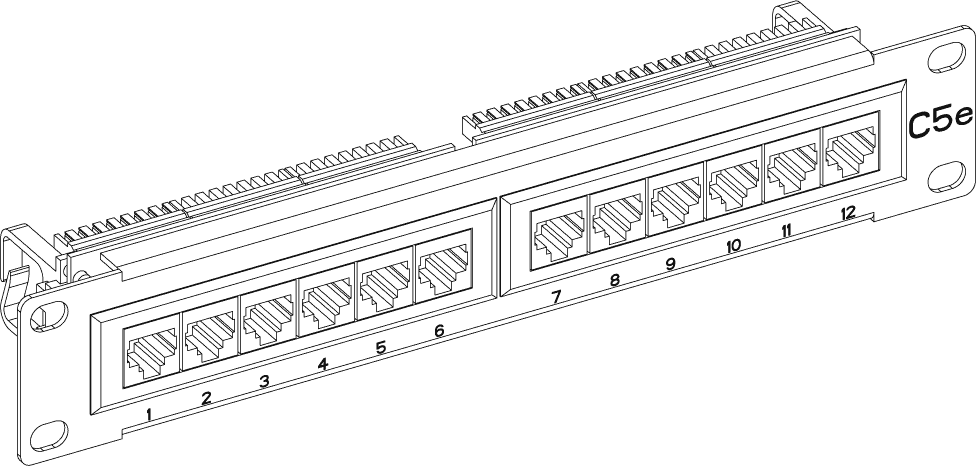

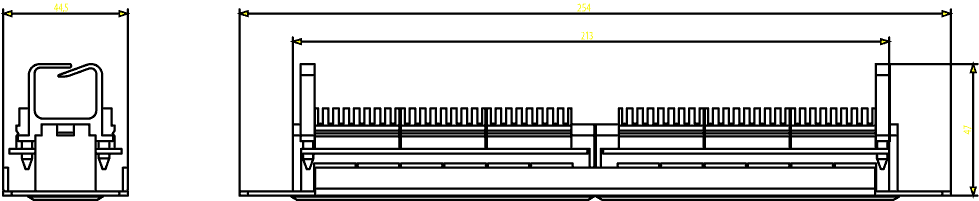

Drawings

PNG DXF

PNG DXF

Class group
Installation material for data and telecommunication networks

Class
Patch panel copper (twisted pair)

Number of buses/couplings
12

Suitable for number of connectors
12

Type of connector
RJ45 8(8)

Screened
No

Category
5E

Connection type
110

Number of height units
1

Colour
Other

RAL-number
0

Mounting method
254 mm (10 inch) mounting

Height
47,00 mm

Width
254,00 mm

Depth
44,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352275836

1 NR

28.5x6.7x4.8 [cm]

355.4 [g]
