By-alarm Plus 65 zones circuit boardCode 03801
- 03801
- Safety / By-alarm Plus / Surface mounting components / Non-modular components

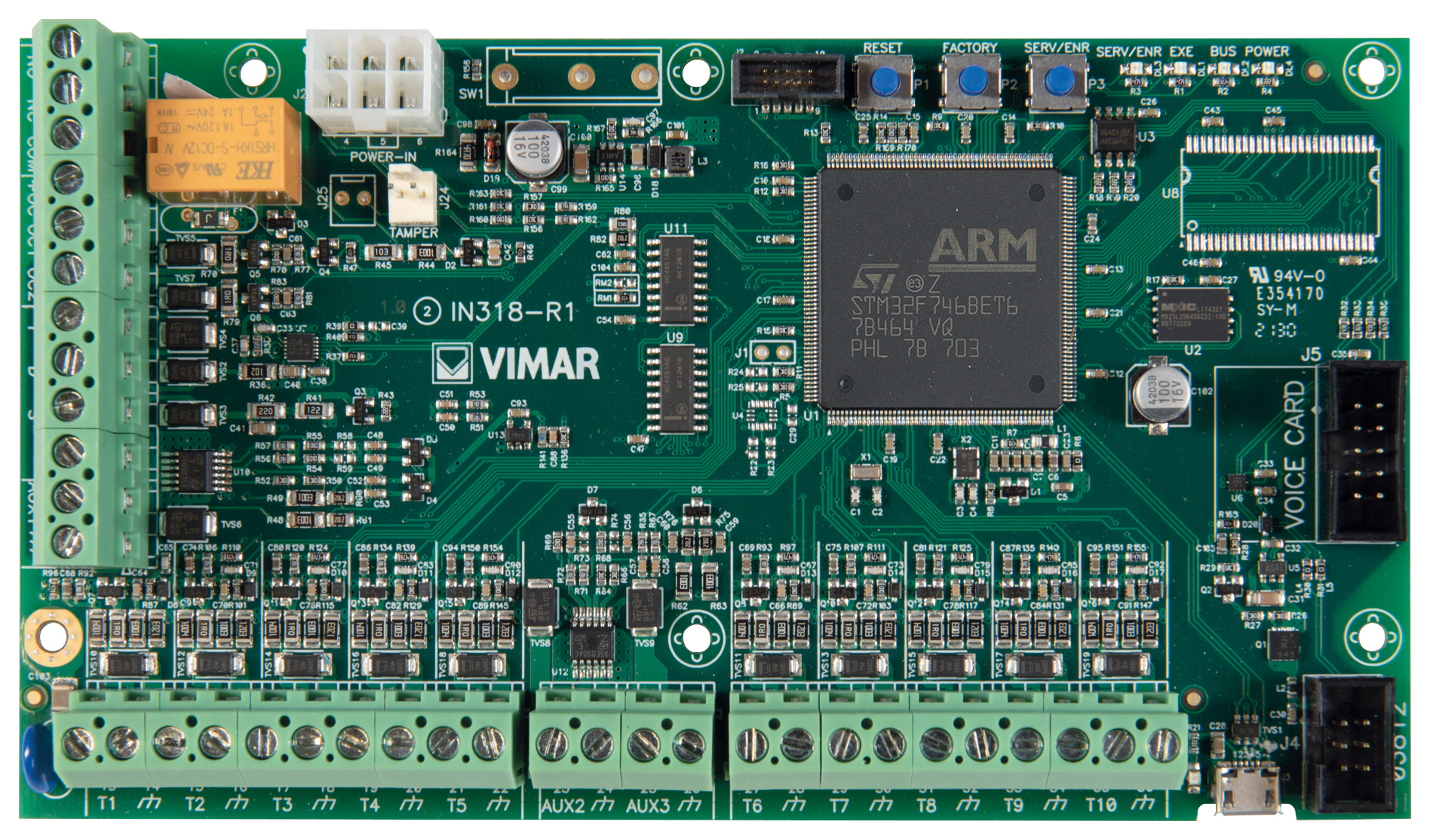

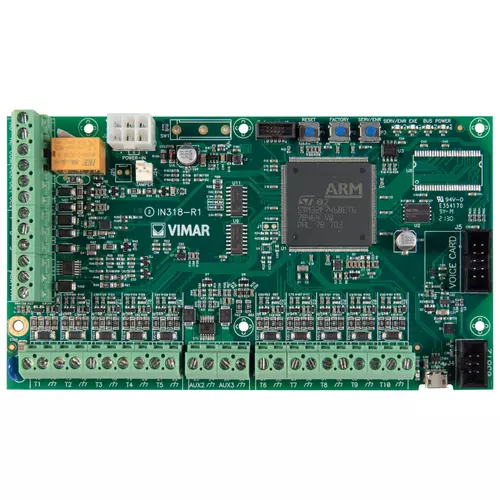

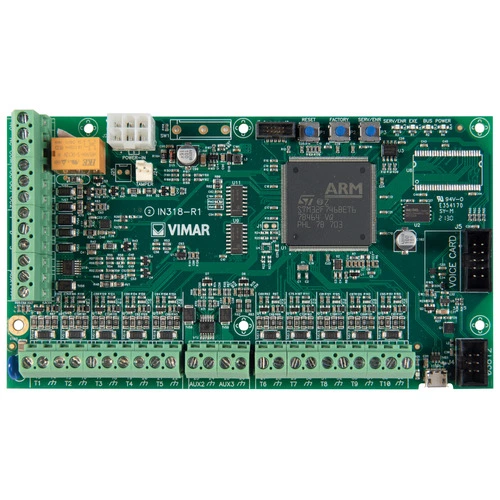

- By-alarm Plus 65 zones circuit board
- By-alarm Plus programmable control unit with keypad and display, 13.8 VDC power supply, 10 local In/Out zones extendable to 65 with expansions (modules or boards), 3 programmable 12 VDC outputs, 1 programmable relay output, 2 programmable open-collector outputs
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Feuille d’instructions (196 kb)
- Anwendungshinweise (197 kb)
- Multilanguage instructions sheet (283 kb)
- Manuel d’installation (1944 kb)
- Installation Manual (1931 kb)
- Installationsanleitung (1946 kb)
- Manuale installazione (1941 kb)
- Manuel de l'utilisateur (2821 kb)
- Bedienungsanleitung (2823 kb)
- Multilanguage user manual (5054 kb)
Product Software

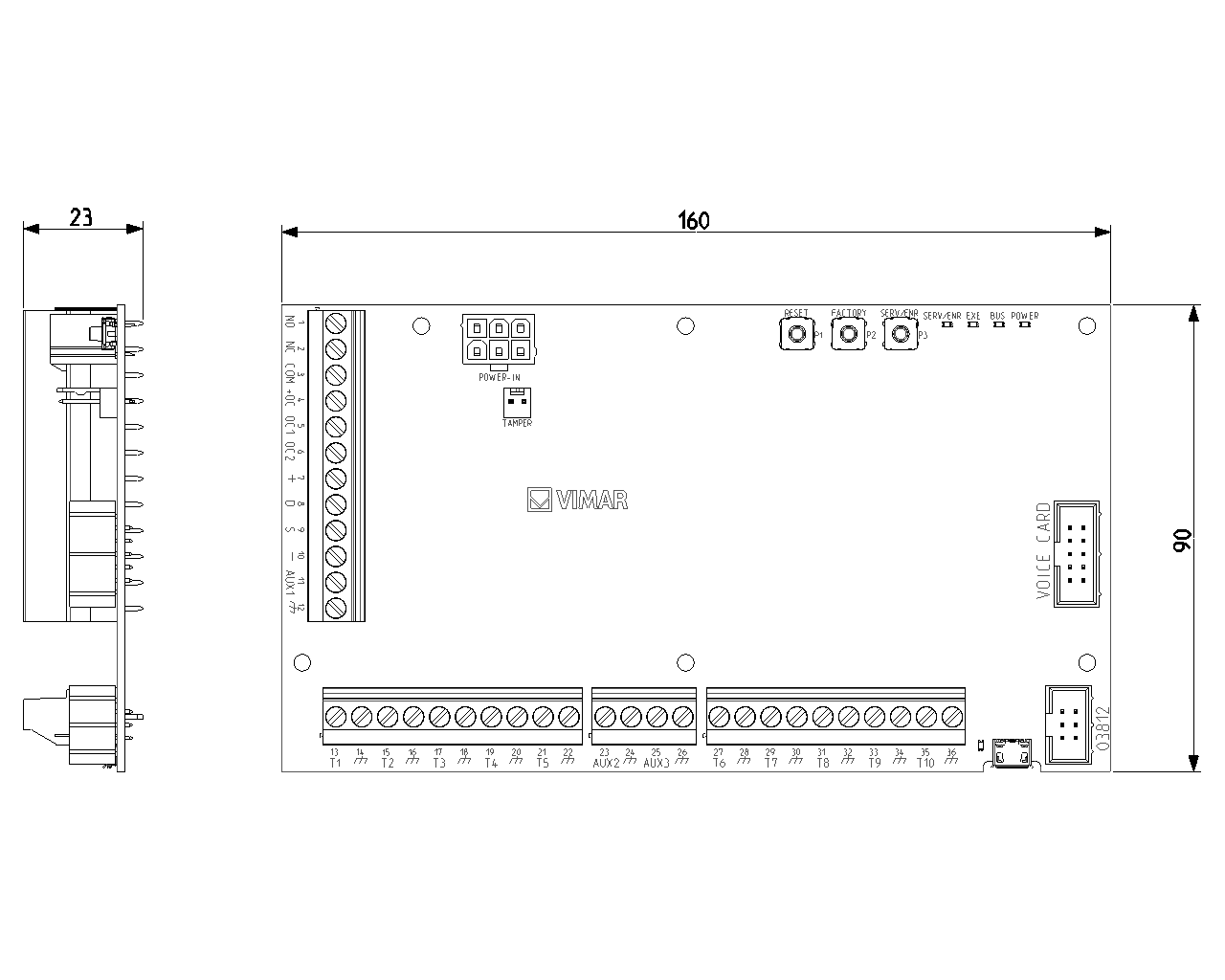

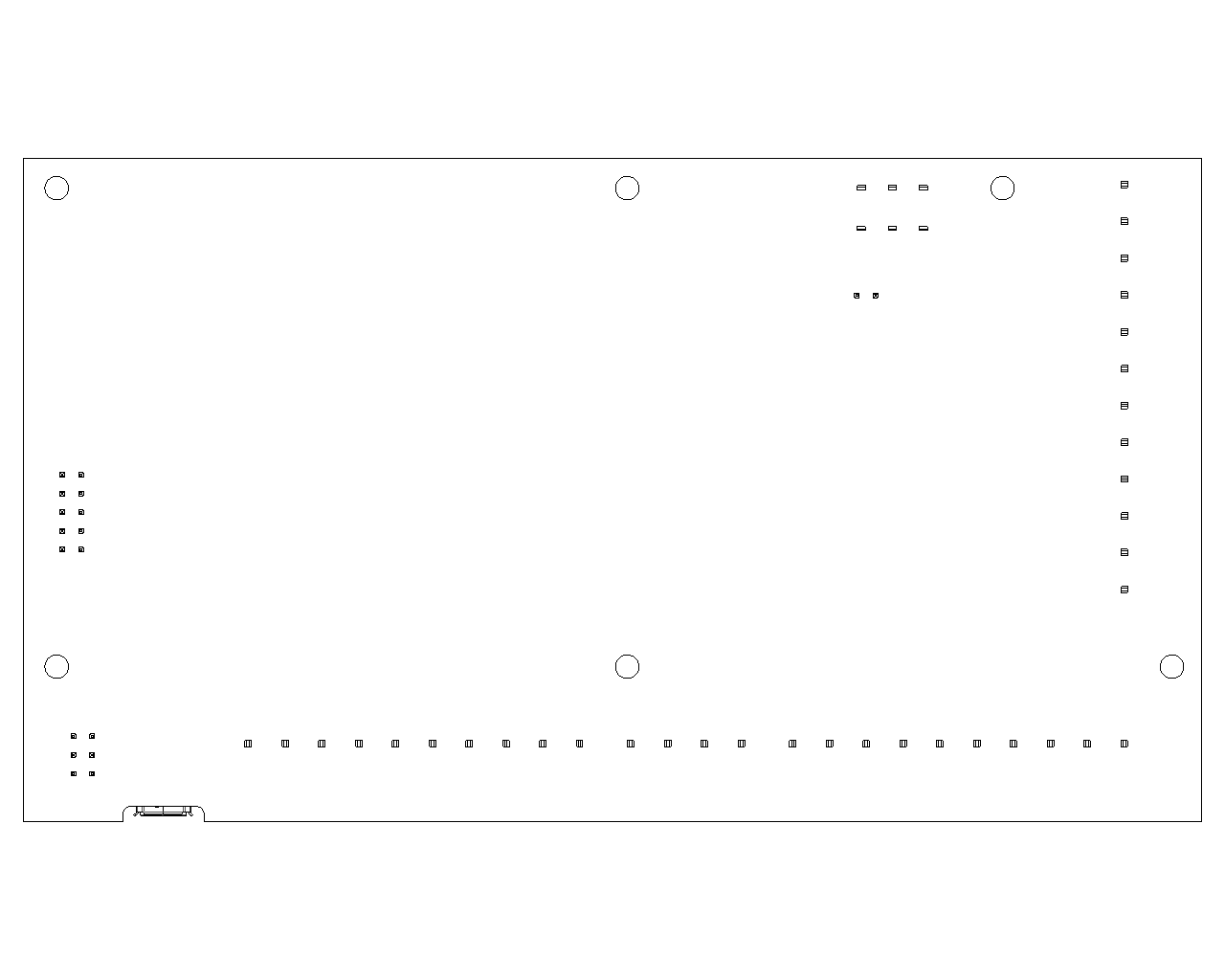

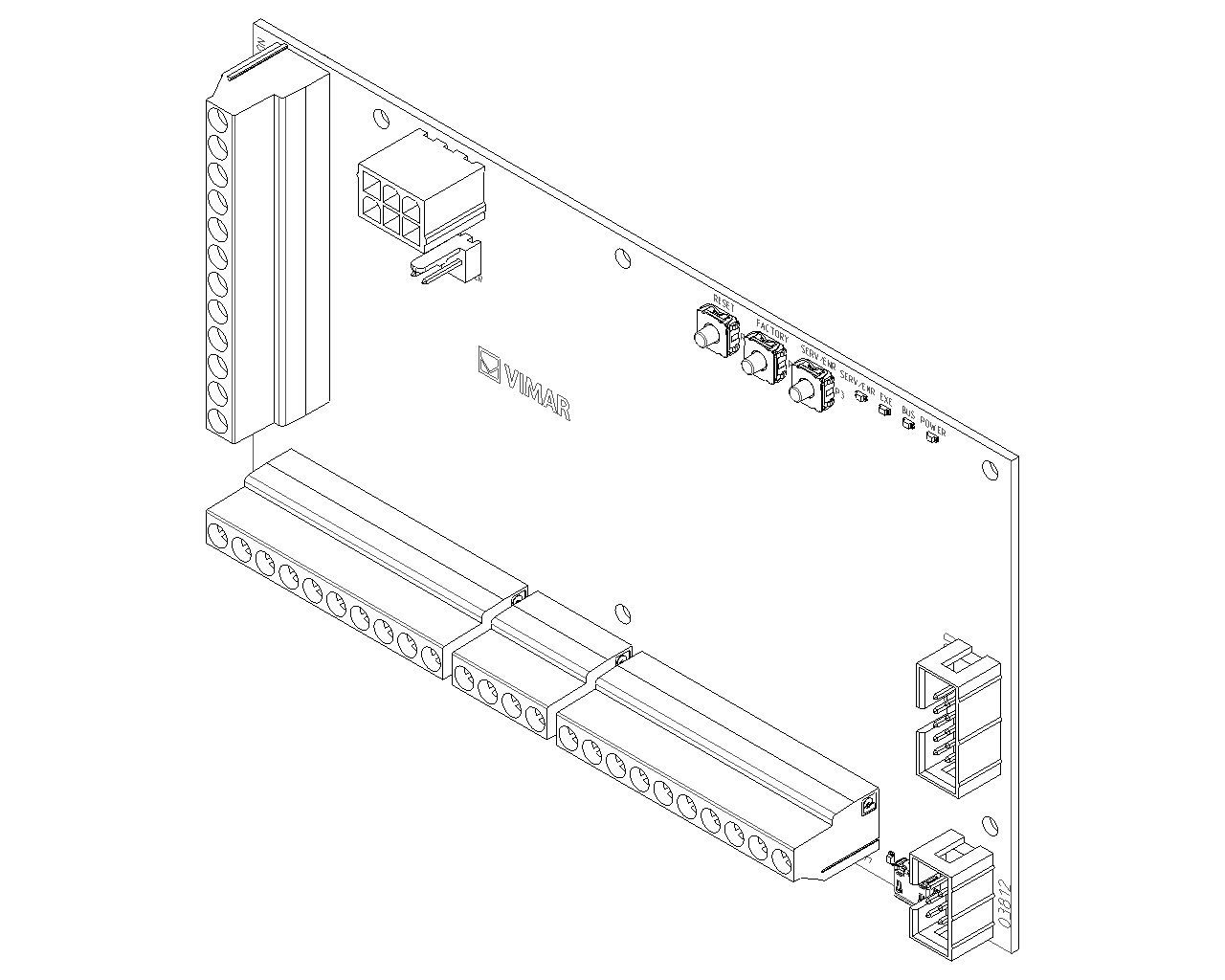

Drawings
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Central alarm panel for intrusion detection system
Central alarm panel for intrusion detection system
Occurrence memory
Yes
Yes
Operating voltage
13 V
13 V
Suitable for bus connection
Yes
Yes
With power adaptor
No
No
Emergency power supply integrated
Yes
Yes
Interface external
Yes
Yes
Height
90,00 mm
90,00 mm
Width
160,00 mm
160,00 mm
Depth
23,00 mm
23,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
VdS class
None
None
Minimum order quantity: 1 NR
Barcode
8007352707221
1 NR
17x11x5.5 [cm]
193.26 [g]
8007352707238
10 NR
29.5x23.5x17.5 [cm]
2,172 [g]
