By-alarm Plus power unit 230V13Vdc3,2A - 03805

Pdf
Vimar - 03805 - By-alarm Plus power unit 230V13Vdc3,2A
Vimar - 03805 - By-alarm Plus power unit 230V13Vdc3,2A

03805
Safety / By-alarm Plus / Surface mounting components / Non-modular components

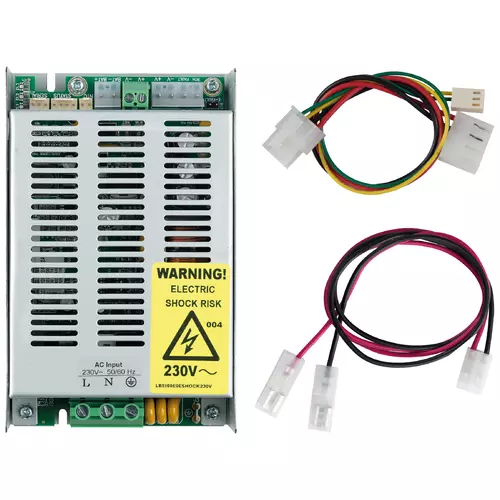

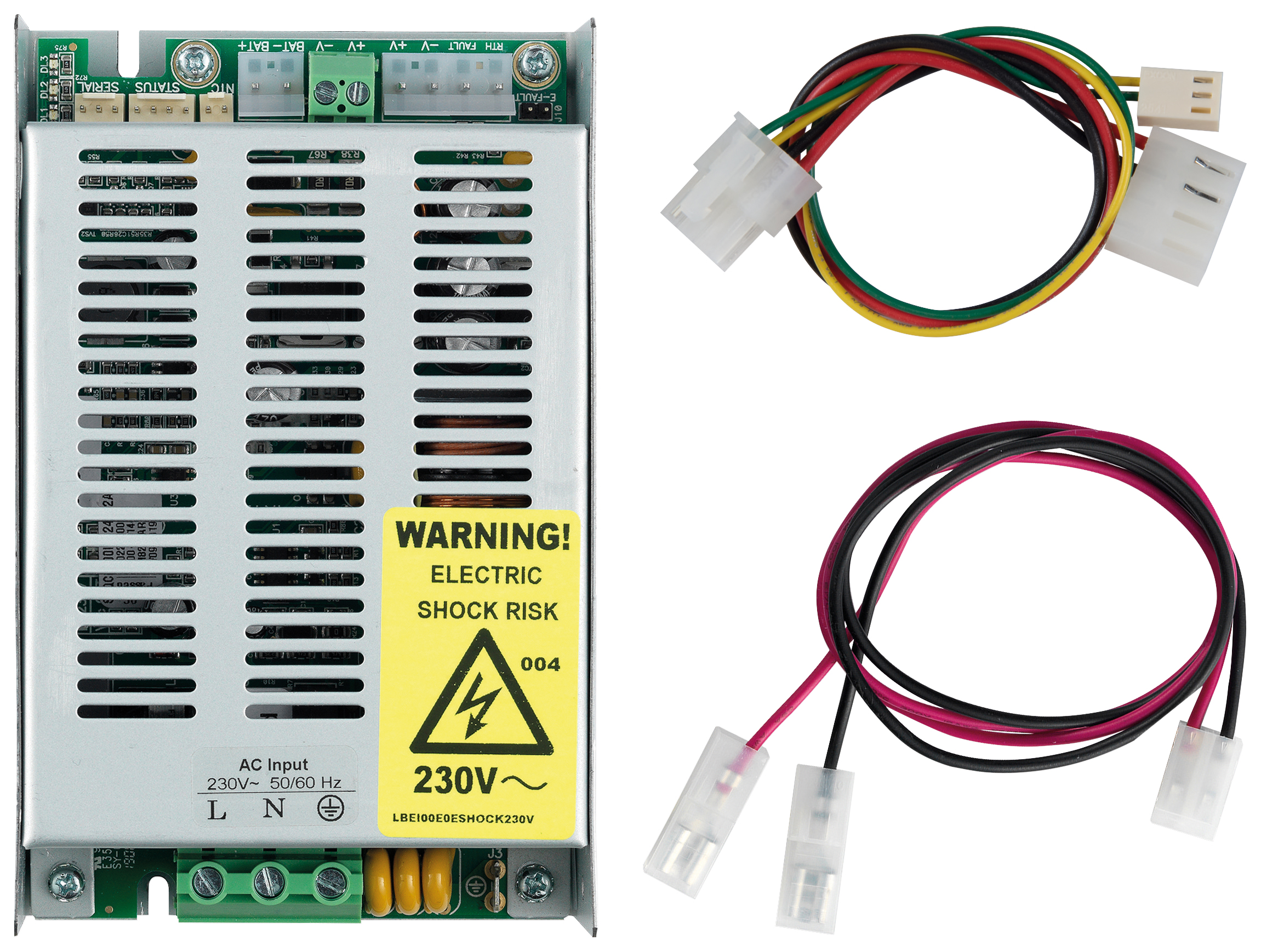

By-alarm Plus power unit 230V13Vdc3,2A
By-alarm Plus power supply unit with 13.8 VDC 3.2 A output, 230 V~ 50/60 Hz power supply

Product Status
3 - Active

Class group
Low-voltage industrial components
Class
AC/DC-power supply
Voltage type (supply voltage)
AC/DC
1st secondary output voltage AC
0 - 13 V
2nd secondary output voltage AC
0 - 13 V
Max. output current 1
2 A
Max. output current 2
1 A
Secondary voltage adjustable
No
Short-circuit-proof
Yes
Rated supply voltage AC 50 Hz
0 - 230 V
Rated supply voltage AC 60 Hz
0 - 230 V
Output voltage stabilized
No
Power consumption
45 VA
Power output
45 W
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
No
Wall mounting possible
No
Modular version
No
Direct mounting possible
No

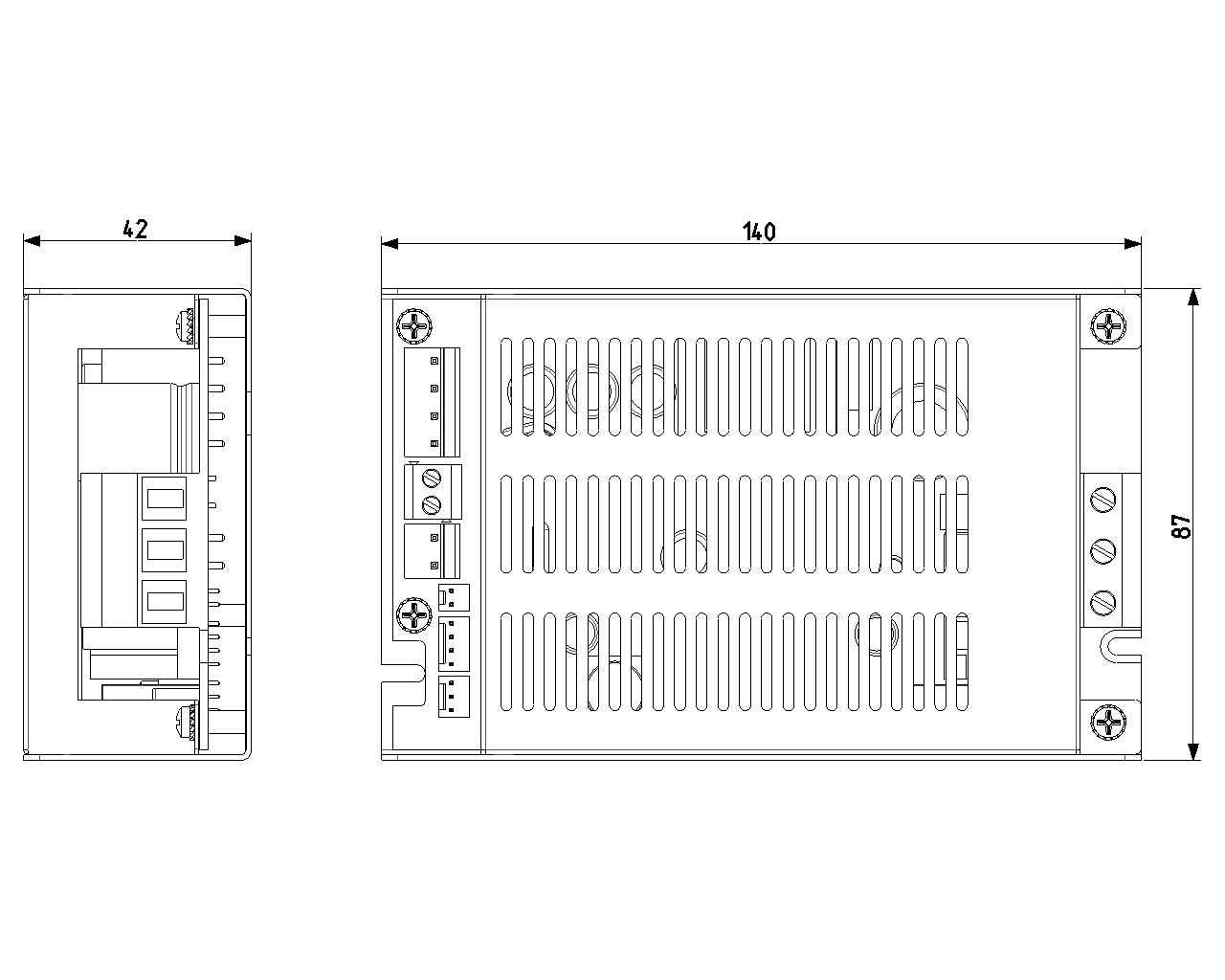

Width
14.000,00 mm
Height
8.700,00 mm
Depth
4.200,00 mm
Suitable for safety functions
Yes
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP00

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707276
1 NR
15.8x10x5.1 [cm]
458.2 [g]
Barcode Qty 20 NR
8007352707269
20 NR
37x32x16 [cm]
9,636 [g]
