By-alarm Plus surf.RF motion detector - 03835

03835
Safety / By-alarm Plus / Surface mounting components / Non-modular components

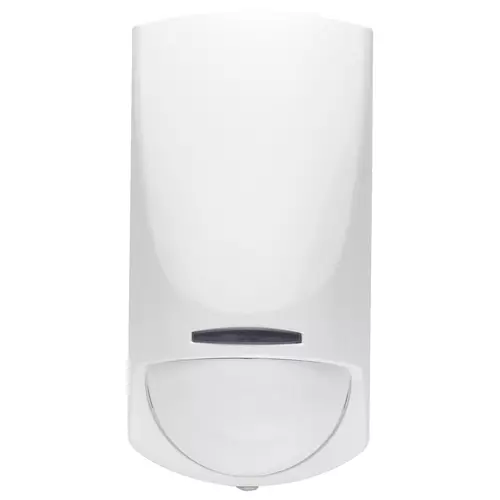

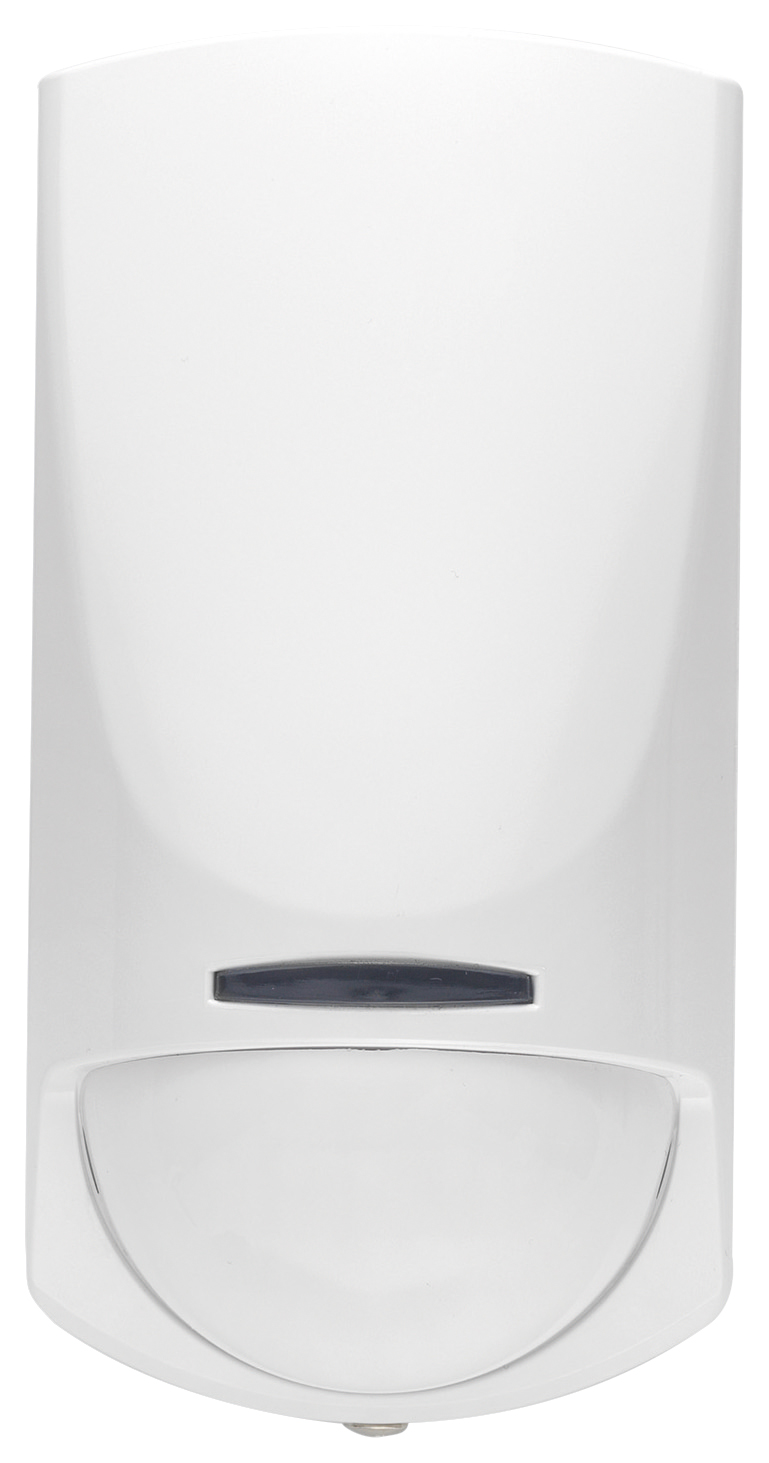

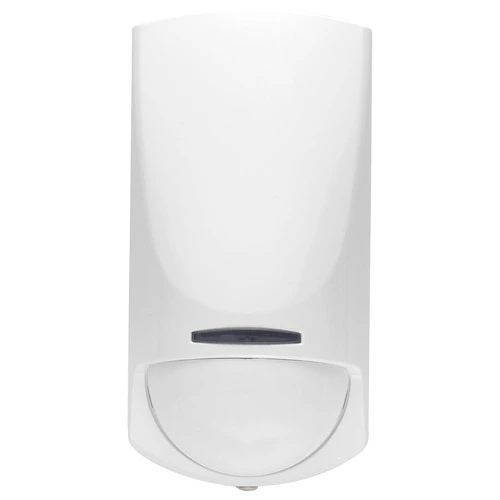

By-alarm Plus surf.RF motion detector
By-alarm Plus passive infrared + microwave double technology detector, 868 MHz radio frequency connection, masking detection, PET immune, power supply with CR17450 3V lithium battery (included), surface mounting, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1665 kb)
• Feuille d’instructions (609 kb)
• Anwendungshinweise (610 kb)

---

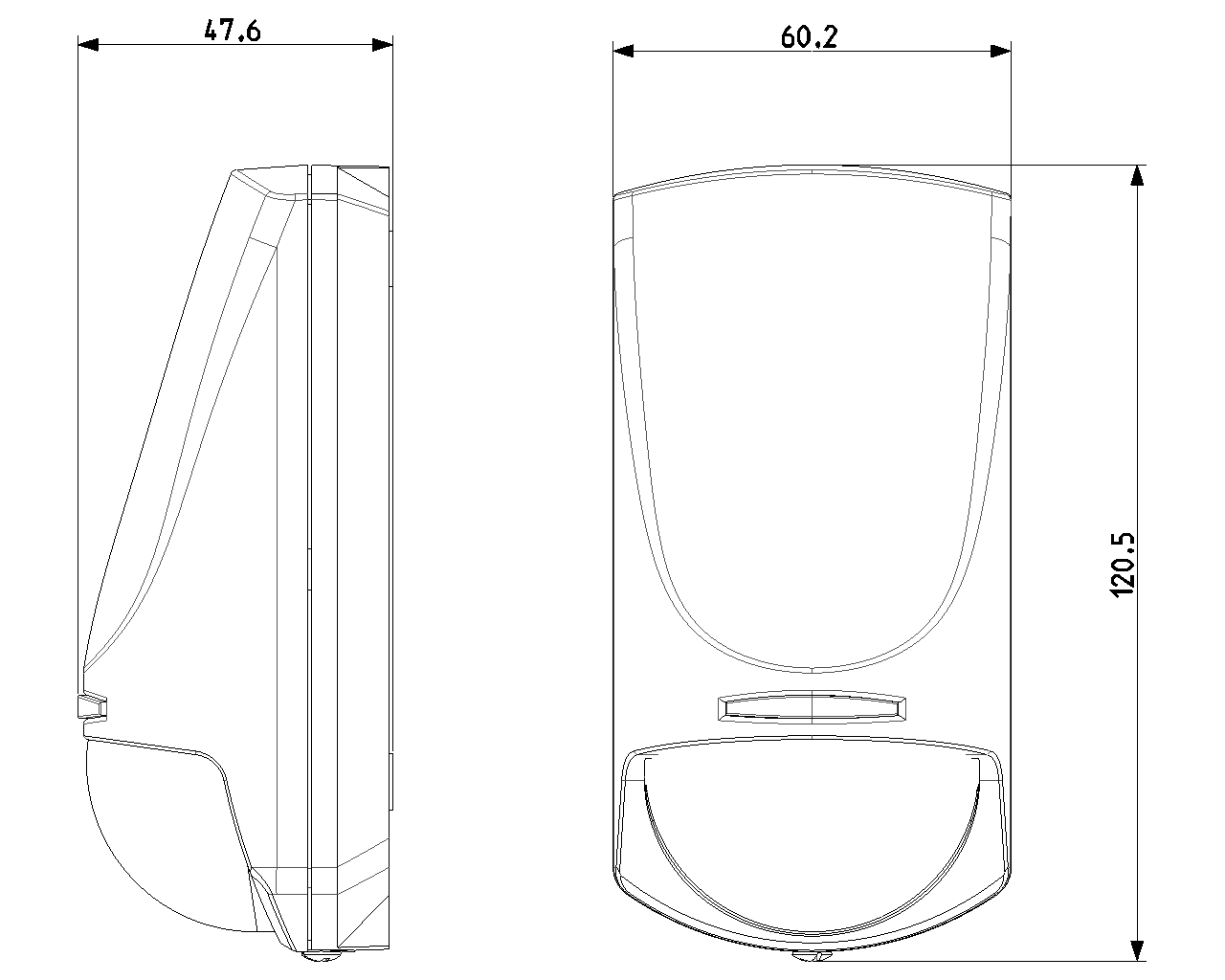

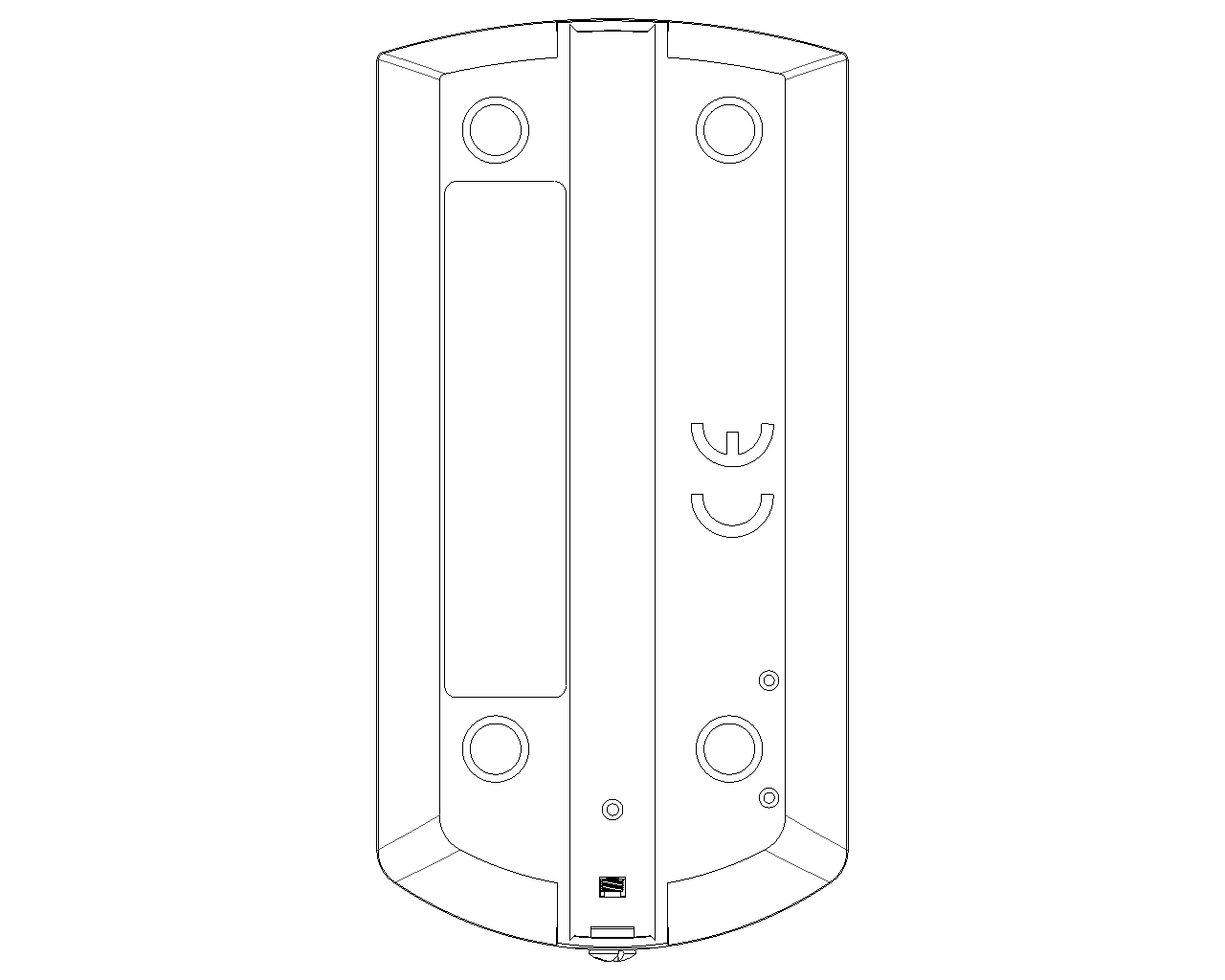

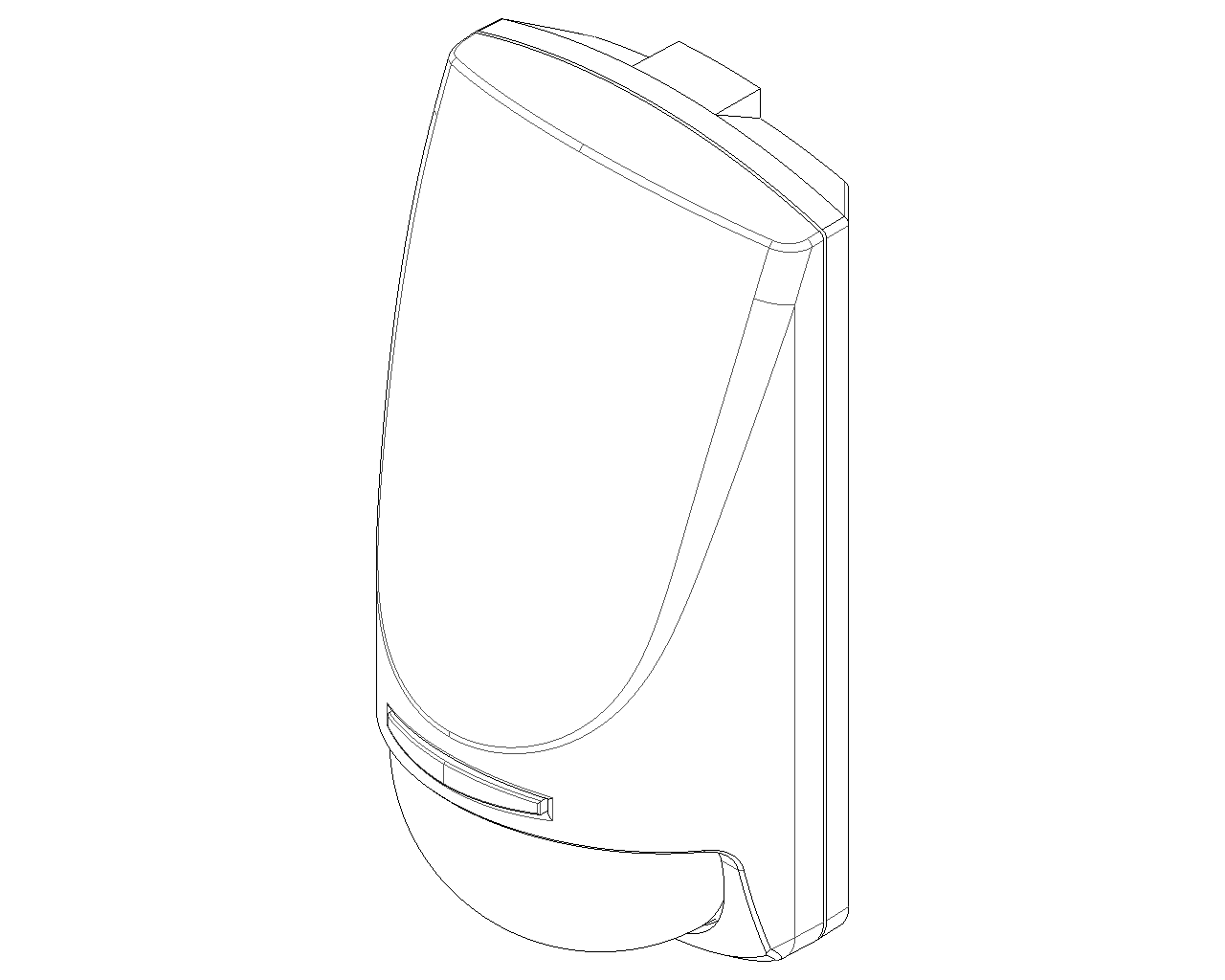

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Type of messaging
Infrared/microwave (Dual)

Mounting method
Surface mounting

Operating voltage
0,00 - 3,00 V

Height
120,50 mm

Width
60,20 mm

Depth
47,60 mm

Characteristic
Surface

Cover monitoring
Yes

Radio system
Yes

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

VdS class
None

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352708594

1 NR

14.2x6.2x5.6 [cm]

146.55 [g]

8007352722545

38 NR

37x28.5x25 [cm]

5,930 [g]
