2P 10AX 1-way switch white - 06215.B

Pdf
Vimar - 06215.B - 2P 10AX 1-way switch white
Vimar - 06215.B - 2P 10AX 1-way switch white

06215.B
Wiring devices / Traditional wiring devices / MASCOT / Devices

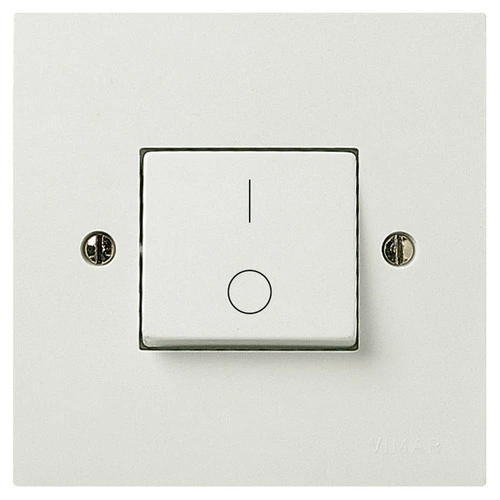

2P 10AX 1-way switch white
2P 10 AX 250 V~ 1-way switch, wide button, white

Product Status
2 - Will be discontinued

You may also be interested in

V71001
V71001 - Flush mounting box ø 60mm light blue
V71001.AU
V71001.AU - Flush mounting box ø 60mm light black
V71701
V71701 - Round flush-mount box f/hollow wall blue
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
80,00 mm
Device height
80,00 mm
Device depth
36,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352094413
1 NR
8x8x3.6 [cm]
65.87 [g]
Barcode Qty 20 NR
8007352094420
20 NR
31x24.8x8.7 [cm]
1,496.4 [g]
