2P 16AX 1-way switch white - 09015

Pdf
Vimar - 09015 - 2P 16AX 1-way switch white
Vimar - 09015 - 2P 16AX 1-way switch white

09015
Wiring devices / Traditional wiring devices / NEVE UP / Devices

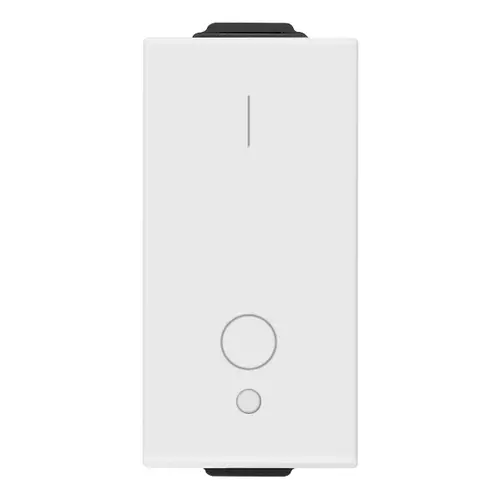

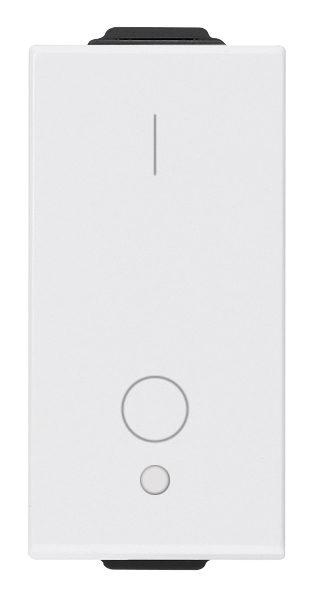

2P 16AX 1-way switch white
2P 16 AX 250 V~ 1-way switch, lighTable, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 09015
PNG DXF
rear view art. 09015
PNG DXF
3D view art. 09015
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
22,30 mm
Device height
47,00 mm
Device depth
45,50 mm
Built-in depth
32,70 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352467934
1 NR
5.1x2.8x5.3 [cm]
31 [g]
Barcode Qty 10 NR
8007352467941
10 NR
14.4x11.6x6 [cm]
352.2 [g]
Barcode Qty 120 NR
8007352467958
120 NR
37.5x30x13.5 [cm]
4,554 [g]
