2P 20AX 1-way switch white - 09016.G

Pdf

09016.G
Wiring devices / Traditional wiring devices / NEVE UP / Devices

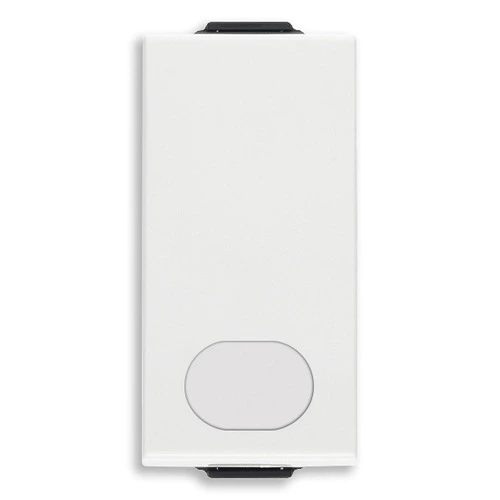

2P 20AX 1-way switch white

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
No
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
20,00 A
Switching current for fluorescent lamps
20
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22,30 mm
Device height
47,00 mm
Device depth
38,20 mm
Built-in depth
25,40 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352712553
1 NR
4.1x2.8x5.3 [cm]
33.39 [g]
Barcode Qty 50 NR
8007352712560
50 NR
21.4x11.6x14.2 [cm]
1,679.5 [g]
Barcode Qty 500 NR
8007352712577
500 NR
57.5x22.5x30 [cm]
17,295 [g]
